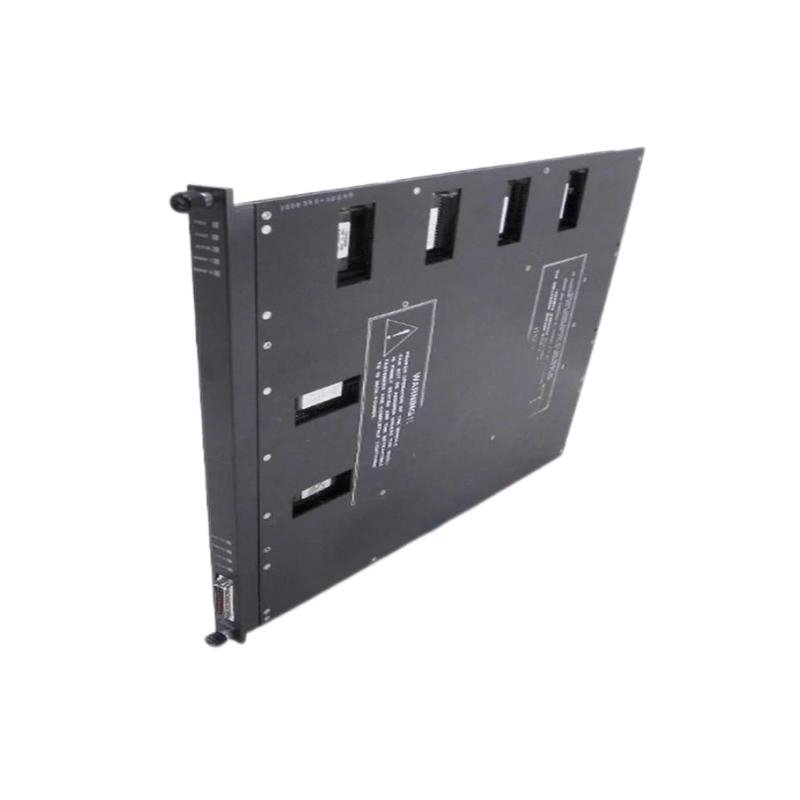

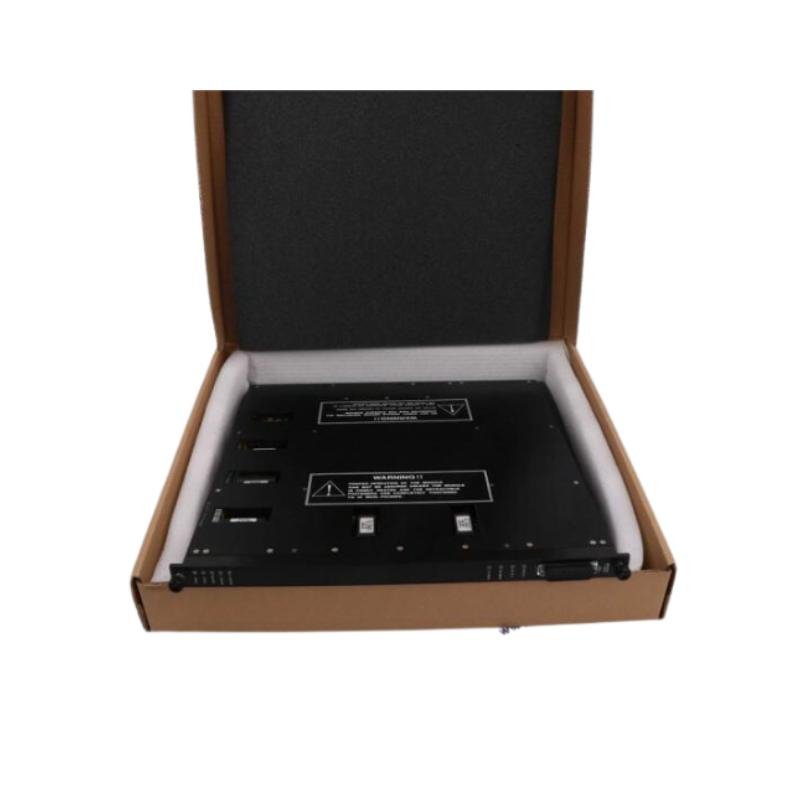

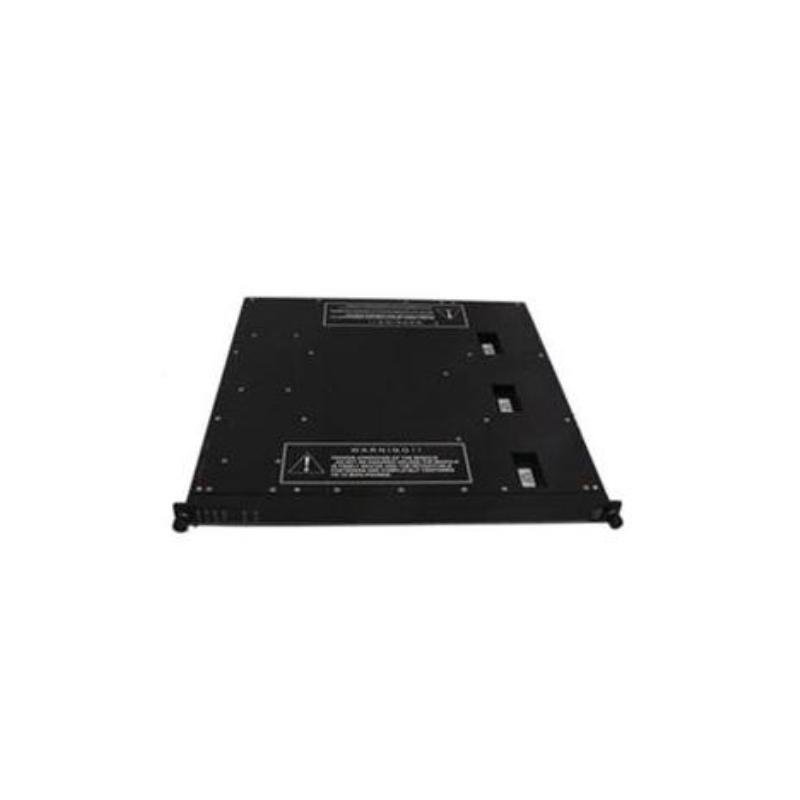

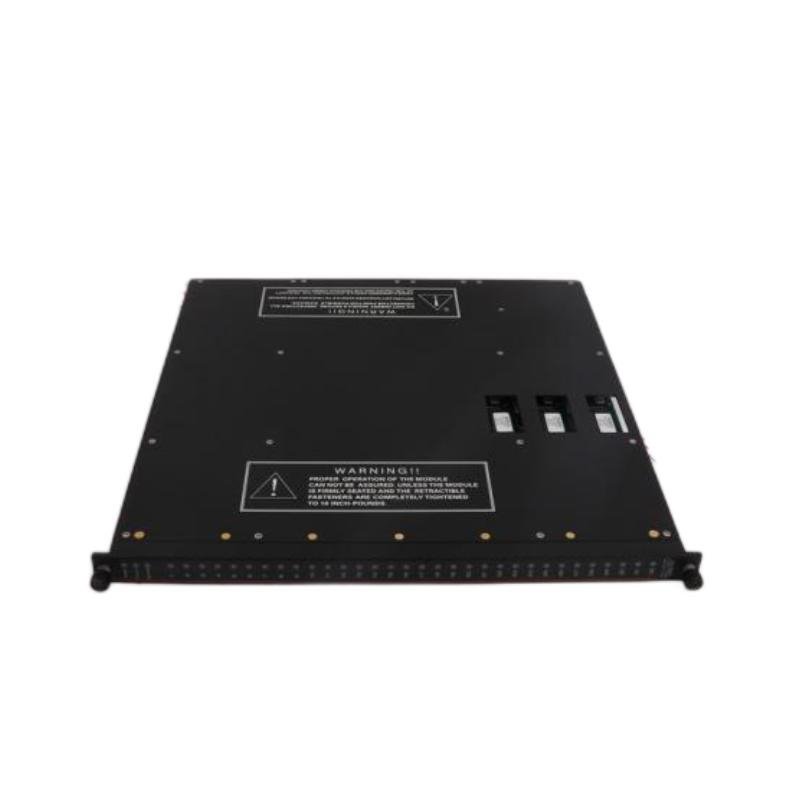

Triconex 3381 Pulse input module

The Triconex 3381 Pulse Input Module is a critical component of the Triconex Safety Instrumented System (SIS), designed specifically for applications where precise measurement and monitoring of pulse signals are necessary. This module interfaces with pulse-generating devices such as flow meters, turbine meters, and other rotary sensors, converting their pulse signals into digital data that can be processed by the Triconex controller. The 3381 module is ideal for industries that require high-precision monitoring of flow rates, position feedback, and counting applications in safety-critical environments.

With its robust construction and high-speed pulse counting capabilities, the Triconex 3381 ensures accurate and reliable measurement of various process parameters, contributing to enhanced safety and performance. It offers flexibility in a wide range of industrial applications, such as oil and gas, water treatment, power generation, and chemical processing, where pulse-based measurements are crucial for process control and monitoring.

The module’s design prioritizes safety and system reliability, ensuring that the Triconex system receives accurate data for emergency shutdown systems (ESD), flow monitoring, and other critical applications. The high isolation protection ensures reliable performance even in electrically noisy environments, making it suitable for use in hazardous areas.

Key Features

• Pulse Signal Input: Capable of handling a wide range of pulse signals from flow meters, encoders, and other pulse-generating devices.
• High-Speed Counting: Features fast pulse counting with high accuracy for applications where real-time data is critical.
• Signal Processing: Built-in signal processing capabilities to filter and condition incoming pulse signals for precise data transmission.
• Safety-Critical Design: Engineered for use in safety instrumented systems to provide reliable data for safety-related applications.
• Flexible Input Range: Supports a broad input range, allowing it to be used with various pulse sources and devices.
• High Isolation Protection: Provides 1500 Vrms isolation between inputs, minimizing the risk of electrical interference.
• Compact and Robust: Designed for durability in harsh industrial environments, with a compact form factor for space-saving installation.
• Compliance with Standards: Meets international safety standards such as UL, CE, FM, and CSA, ensuring it can be used in a variety of industries worldwide.

Applications: The Triconex 3381 Pulse Input Module is ideal for applications that require precise pulse-based measurements for monitoring and control. Common use cases include:

• Flow Rate Measurement: Monitoring and controlling flow rates in industries such as oil and gas, chemical processing, and water treatment.
• Position Feedback: Collecting data from position sensors and encoders for precise control of machinery and equipment.
• Counting Applications: Counting pulses from rotary sensors or similar devices in process control and monitoring systems.
• Emergency Shutdown Systems (ESD): Providing critical pulse data to support emergency shutdown and other safety-related actions.
• Process Monitoring: Real-time monitoring of critical process variables such as flow, rotation, and speed in various industrial settings.

This module plays a vital role in ensuring that pulse signals are accurately captured and processed, thus contributing to the overall safety and efficiency of industrial systems.

Specifications
