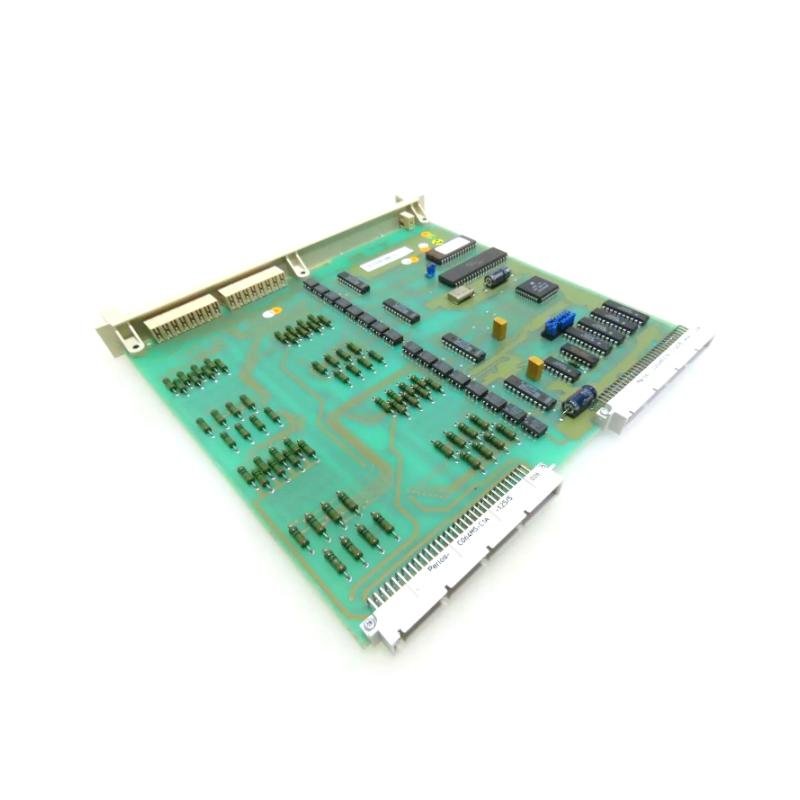

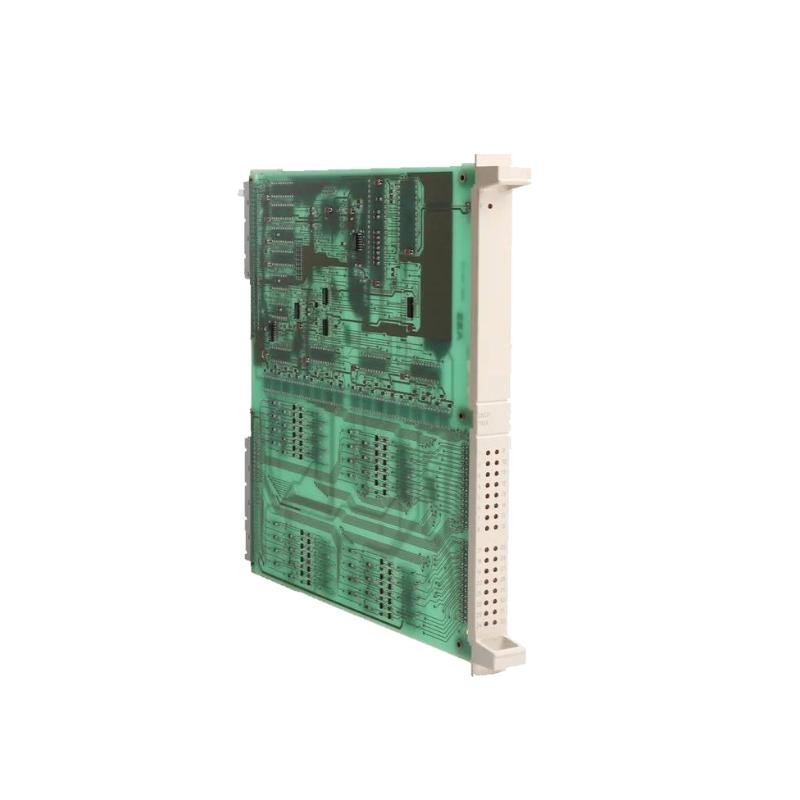

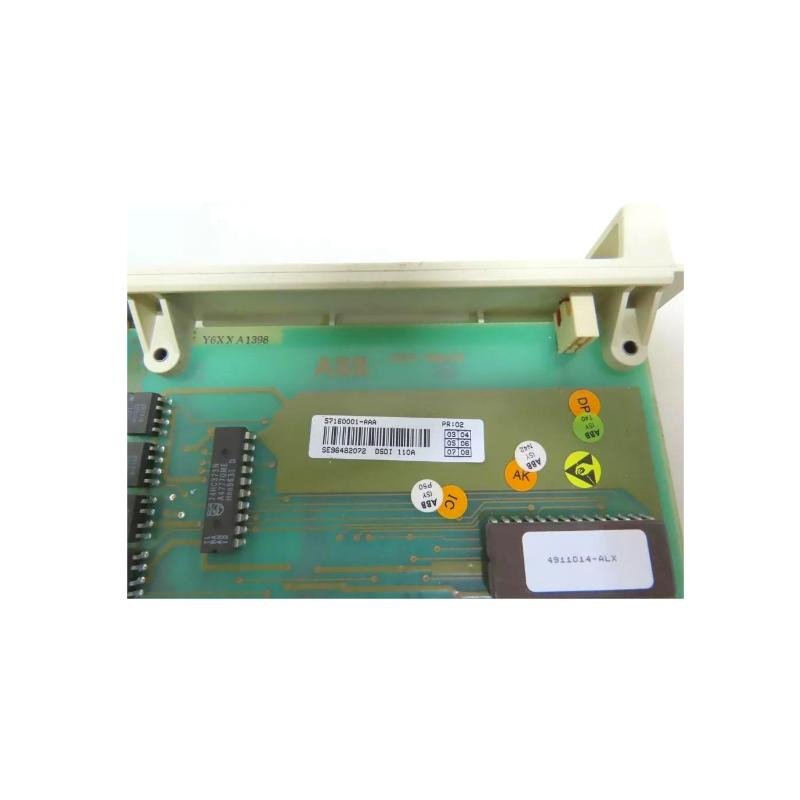

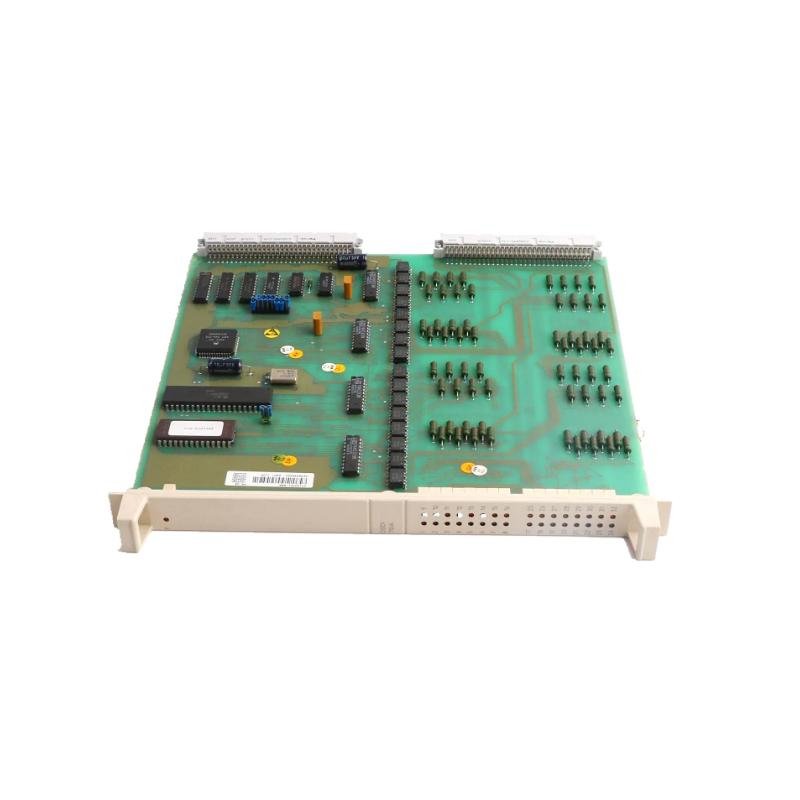

ABB DSDI 110A 57160001-AAA Digital Input Board
Manufacturer: ABB
Product Number: DSDI 110A (57160001-AAA)
Category: Digital Input Board
Number of Channels: 32
Input Type: 24 V DC
Input Current: 7 mA typical
Isolation: 500 V
Operating Temperature: -20°C to +60°C
Power Supply: 24 V DC
Product Description
The ABB DSDI 110A 57160001-AAA Digital Input Board is a high-performance industrial control device designed for applications requiring precise input signal acquisition. This input board offers 32 digital input channels, supports 24 VDC power input, features opto-isolation, and provides event detection functionality, ensuring efficient and reliable signal collection and processing. It can be controlled via scanning or interrupt modes, making it suitable for various industrial automation and control systems.
Designed with space constraints and harsh operating conditions in mind, the DSDI 110A is compact and capable of high-performance signal input. Its 32 channels (in a 4 x 8 configuration) efficiently manage large-scale input signals, making it an ideal choice for intelligent automation and data acquisition systems.
Key Features
- 32 Digital Input Channels: Provides 32 channels of 24V DC inputs, suitable for various signal acquisition needs.
- Opto-isolation: Each input channel features opto-isolation, enhancing the system’s immunity to interference and increasing stability.
- Event Detection: Supports event-triggered responses, improving real-time responsiveness.
- Scanning and Interrupt Control: Offers flexible control modes, with either scanning or interrupt-driven control for input signals.
- Compact Design: The device is compact, making it suitable for installation in space-constrained environments.
- High Reliability: Built to high industrial standards, ensuring durability and robustness in complex industrial environments.
Technical Specifications
Dimensions and Weight
| Parameter | Specification |
| Product Length | 216 mm |
| Product Height | 18 mm |
| Product Width | 225 mm |
| Product Weight | 0.34 kg |
General Information
| Parameter | Specification |
| Input Type | Digital Input (DI) |
| Number of Channels | 32 Channels |
| Input Voltage | 24 V DC |
| Control Mode | Scanning or Interrupt |
| Opto-isolation | Yes |
| Event Detection | Yes |
Technical Features
| Feature | Description |
| Input Channel Configuration | 4 x 8 Channel Configuration |
| Opto-isolation | Opto-isolation on each channel |
| Operating Voltage Range | 24 V DC |
| Event Triggering | Supports event detection and fast response |
| Control Mode | Scanning or Interrupt control modes |
Industry Applications
The ABB DSDI 110A Digital Input Board is widely used across various industries, particularly in automation and data acquisition systems. Its reliability and precise signal acquisition capability make it a core component in critical applications. Common applications include:
- Industrial Automation: Collects signals from production line devices such as sensor signals, switch signals, etc.
- Smart Building Systems: Used in building management systems for applications like access control and facility monitoring.
- Energy Management: Monitors the on/off status of power equipment in energy control systems for operational safety.
Transportation Systems: Collects digital signals from traffic signal systems and monitoring systems to ensure stable traffic management.
