Technical Parameters of ABB 3BHB003387R0101 (5SXE 05-0151) Printed Circuit Board
The ABB 3BHB003387R0101 (5SXE 05-0151) is a specialized printed circuit board (PCB) designed for industrial automation, power electronics, and control systems. It is typically integrated into ABB’s high-performance drives, such as DC converters, IGCT-based power modules, or motor control units, ensuring reliable signal routing, power distribution, and component interconnection.
Key Technical Specifications
| Parameter | Details |
|---|---|
| Model/Part No. | 3BHB003387R0101 (5SXE 05-0151) |
| Function |
– Core PCB for IGCT (Integrated Gate-Commutated Thyristor) modules
– Supports high-voltage/high-current switching in power electronics – Enables gate driver integration and signal conditioning |
| PCB Layer Configuration | Multi-layer PCB (6-8 layers) with high-density interconnect (HDI) for thermal and electrical efficiency |
| Materials |
– Base material: FR-4 (Flame Retardant 4) for mechanical stability
– Copper thickness: 2 oz (70 µm) for high-current paths |
| Dimensions (Approx.) | 150 mm × 120 mm × 2.0 mm (subject to configuration) |
| Operating Voltage |
Up to 6.5 kV DC (for IGCT modules)
Control voltage: 24 VDC ±10% |
| Current Rating |
Up to 3 kA (peak) for power circuits
Signal circuits: 0.5 A max. |
| Thermal Management |
– Thermal via arrays for efficient heat dissipation
– Gold-plated pads for improved solderability and oxidation resistance |
| Connectivity |
– Edge connectors for power and control signals
– High-density pin headers for auxiliary interfaces |
| Environmental Compliance | RoHS-compliant, REACH-ready, UL 94V-0 flame rating |
| Protection Class | IP20 (standard); can be upgraded for higher IP ratings if housed |
| Operating Temperature | -40°C to +85°C (industrial-grade components) |
| Storage Temperature | -55°C to +125°C |
| Humidity Tolerance | 5% to 95% RH (non-condensing) |
Advanced Features
- High-Speed Signal Routing: Supports fast switching frequencies (up to 10 kHz) for IGCTs.
- Isolated Power Planes: Separate power and control layers to minimize noise.
- EMI/RFI Shielding: Integrated ground planes and guard traces for electromagnetic compatibility.
-
Component Integration:
- IGCT drivers (e.g., ABB’s proprietary drivers for 5SHX series IGCTs).
- Voltage regulators, op-amps, and level shifters for signal conditioning.
- Protection diodes, transistors, and resistors for fault handling.
- Test Points & Debugging: On-board test points for voltage/current monitoring and fault diagnosis.
Application Areas
- HVDC (High-Voltage Direct Current) transmission systems
- Industrial drives (e.g., ABB ACS880, DCS800 series)
- Renewable energy (wind turbines, solar inverters)
- Rail traction systems (electric locomotives, metros)
- Oil & gas (drilling rigs, pump drives)
Compliance & Certifications
- IEC 61800-3 (Adjustable speed electrical power drive systems)
- IEC 60146-1-1 (Semiconductor converters)
- UL 508C (Power conversion equipment)
- CE Marking (EMC, Low Voltage Directive)
Mechanical & Mounting Details
- Mounting: Through-hole (THT) and SMD (Surface Mount Device) components for mixed assembly.
- Fixing Holes: M3 screw holes for chassis mounting.
- Conformal Coating: Optional for corrosive/humid environments.
Warranty & Support
- Standard Warranty: 1 year (extendable via ABB service contracts).
- Recommended Spare Part: Yes (critical for downtime reduction).
Replacement & Cross-Reference Notes
- Supersedes Older Models: May replace 3BHB003387R0001, 3BHB003387R0002 (check firmware compatibility).
- Compatible with: 5SHX series IGCTs (e.g., 5SHX08F4502, 5SHX1060H0003).
Notes for Users
- Installation: Requires qualified personnel due to high-voltage risks.
- Maintenance: Regular thermal imaging checks recommended for power layers.
- Firmware Updates: Ensure PCB firmware matches the control system version (via ABB Ability™).

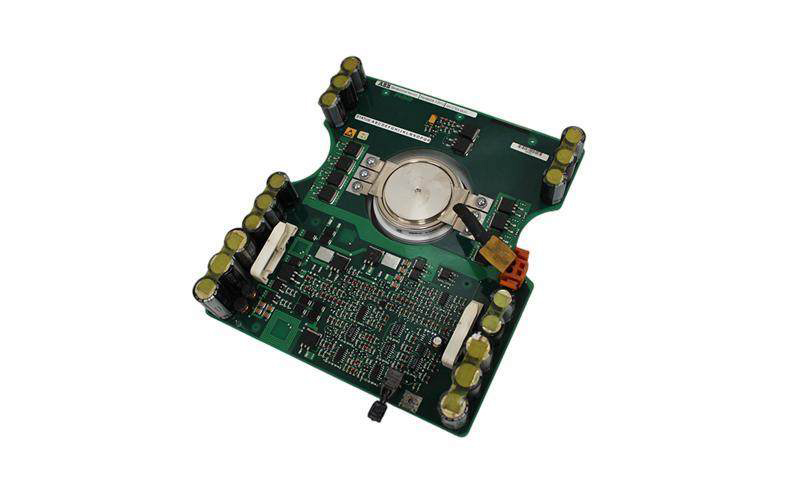

ABB 3BHB003387R0101
The ABB 3BHB003387R0101 3BHL000385P0101 5SHX0845F0001 IGCT module is an original, new, and high-quality product designed for various applications. It offers advanced features and technical specifications, making it an ideal choice for diffe
