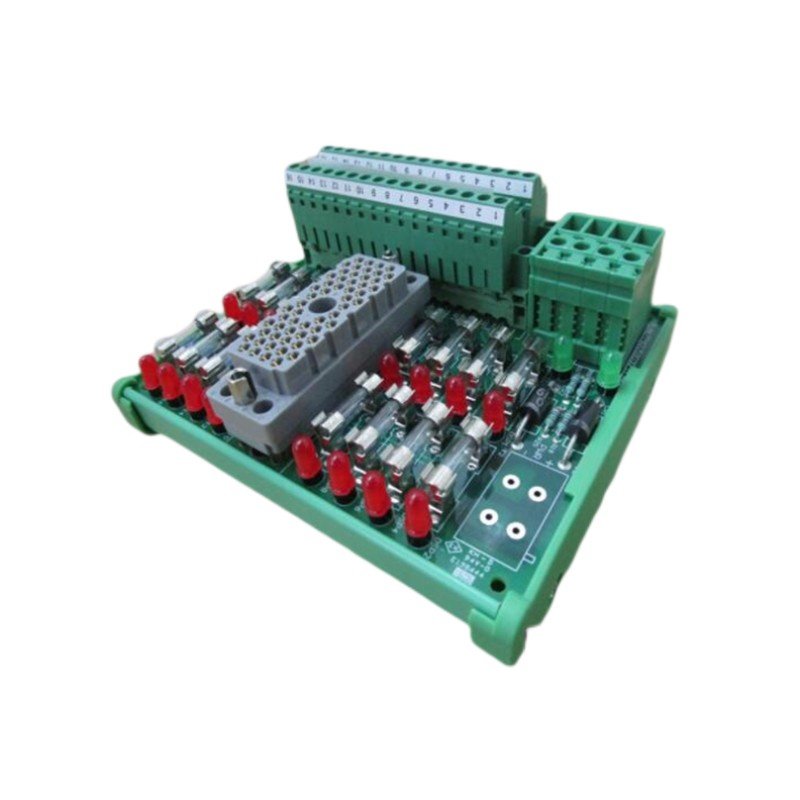

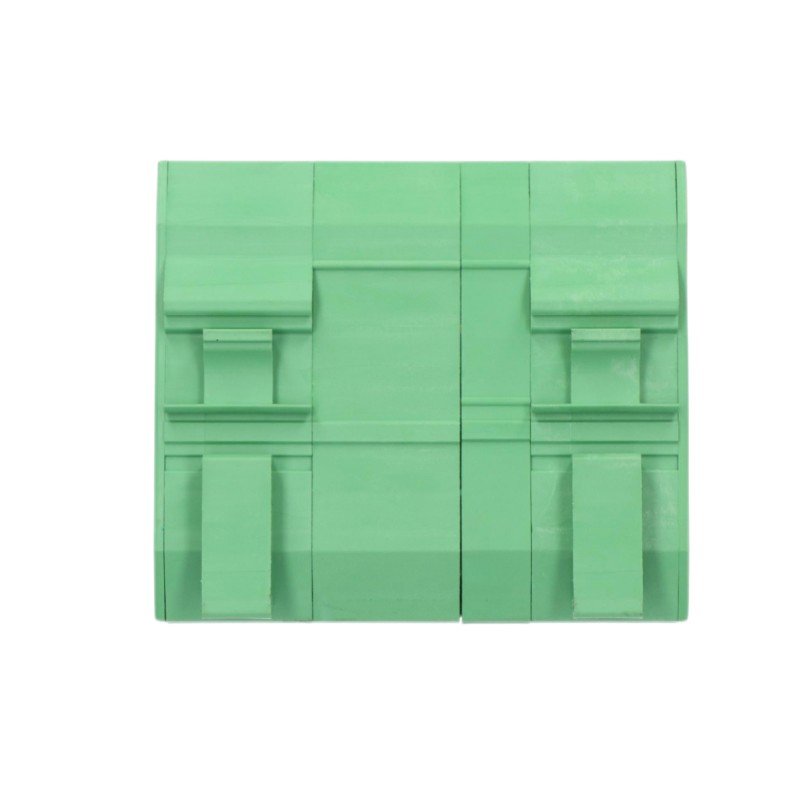

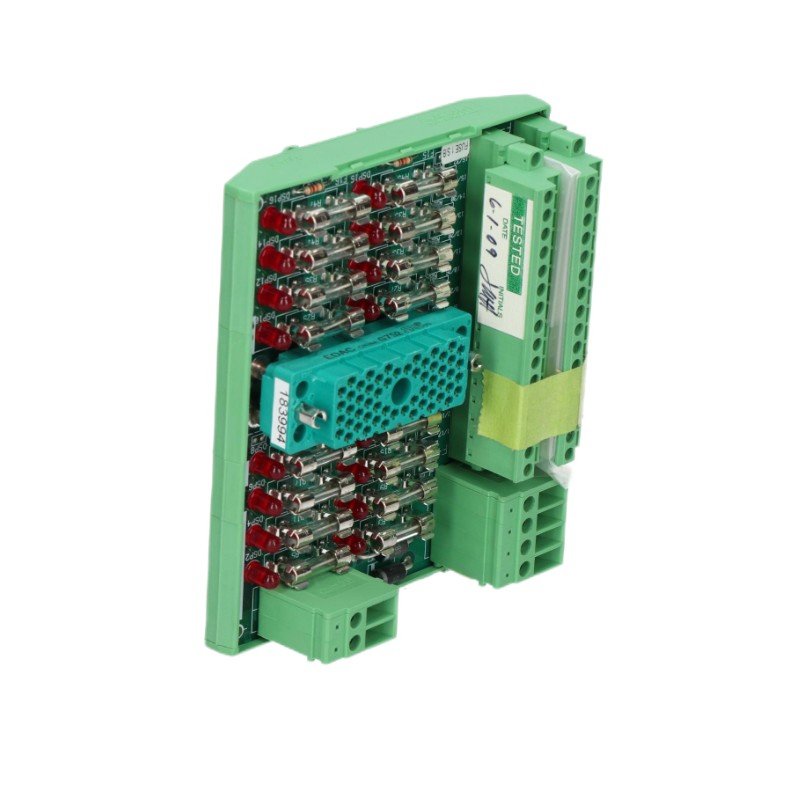

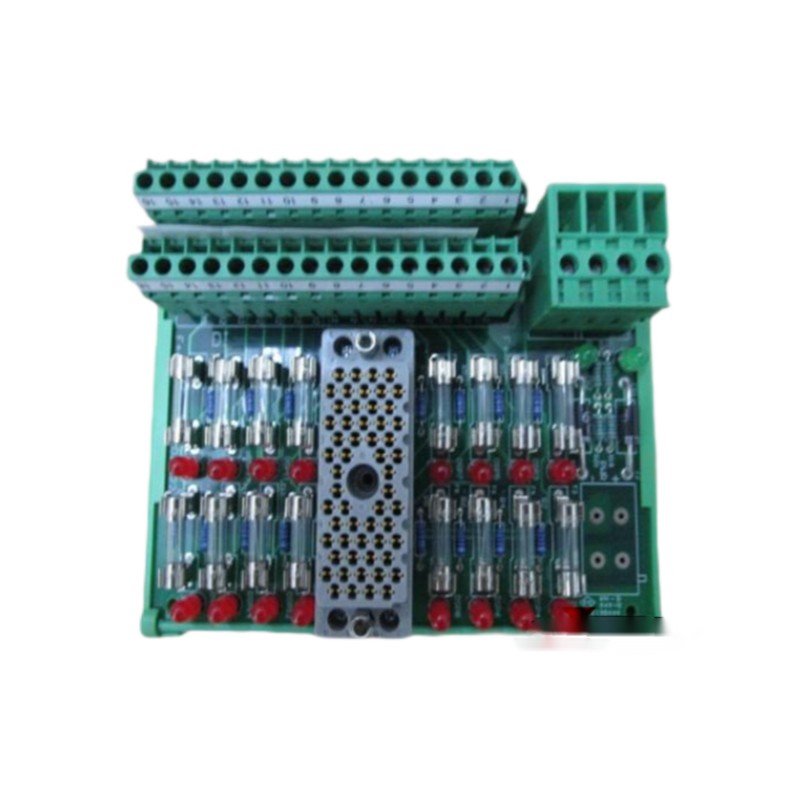

Triconex 9563-810 7760059030 Digital Input Terminal Panel
Manufacturer: Triconex
Product Number: 9563-810 (7760059030)
Category: Digital Input Terminal Panel
Function: Connects and manages digital field signals for Triconex safety systems
Input Types: Digital input devices such as switches and sensors
Application: Interface between digital field devices and safety control systems
Product Description
The Triconex 9563-810 (part number 7760059030) Digital Input Terminal Panel is designed for use with Triconex safety systems to efficiently connect and manage digital field signals. This module is used to interface digital input devices such as sensors, switches, and relays to Triconex controllers, providing precise monitoring and control in industrial applications. The 9563-810 offers a secure, reliable solution for connecting field signals in safety-critical systems, ensuring smooth operation in demanding environments.
Key Features
-
16 Digital Input Channels: Supports up to 16 digital input channels, enabling seamless integration of a wide range of field devices.
-
Triconex Compatibility: Fully compatible with Triconex safety controllers, ensuring smooth and secure data communication between the field and control systems.
-
Robust Construction: Designed for use in harsh industrial environments, providing high reliability and durability over extended periods of operation.
-
Secure and Easy Wiring Termination: The terminal panel facilitates straightforward and secure wiring connections for quick installation and maintenance.
-
Field Signal Monitoring: Monitors the state of digital inputs, ensuring that field conditions are accurately reported and acted upon in real-time.
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 114.3 ×127 × 107.95 mm |
| Weight | 0.38 kg |
General Information
| Item | Specification |
|---|---|
| Model | 9563-810 |
| Manufacturer | Triconex |
| Installation | DIN Rail or Panel Mount |
| Operating Temp | -20°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity Range | 5%–95% RH (non-condensing) |
Performance Characteristics
| Item | Specification |
|---|---|
| Input Type | Digital Input |
| Number of Channels | 16 Channels |
| Input Voltage | 24 V DC |
| Input Signal Type | Dry contact or 24 V DC logic |
| Isolation | Electrically isolated from the controller system |
| Input Configuration | Voltage or Current sensing |
Industry Applications
-
Oil & Gas: Used to interface safety equipment such as pressure and temperature sensors, ensuring reliable monitoring and control in hazardous locations.
-
Chemical Processing: Provides essential digital input monitoring for chemical plant safety systems, aiding in real-time response to process conditions.
-
Power Generation: Interfaces with safety and control systems in power plants, offering reliable signal acquisition for monitoring critical parameters.
-
Manufacturing: Ideal for integrating digital input signals from field devices, improving safety and operational efficiency in automated manufacturing processes.
-
Automated Systems: Helps in connecting various field devices to control systems, enabling precise monitoring and automation of industrial processes.
The Triconex 9563-810 Digital Input Terminal Panel offers a robust and reliable solution for integrating digital field devices into Triconex safety systems, ensuring accurate and real-time monitoring in safety-critical applications.
