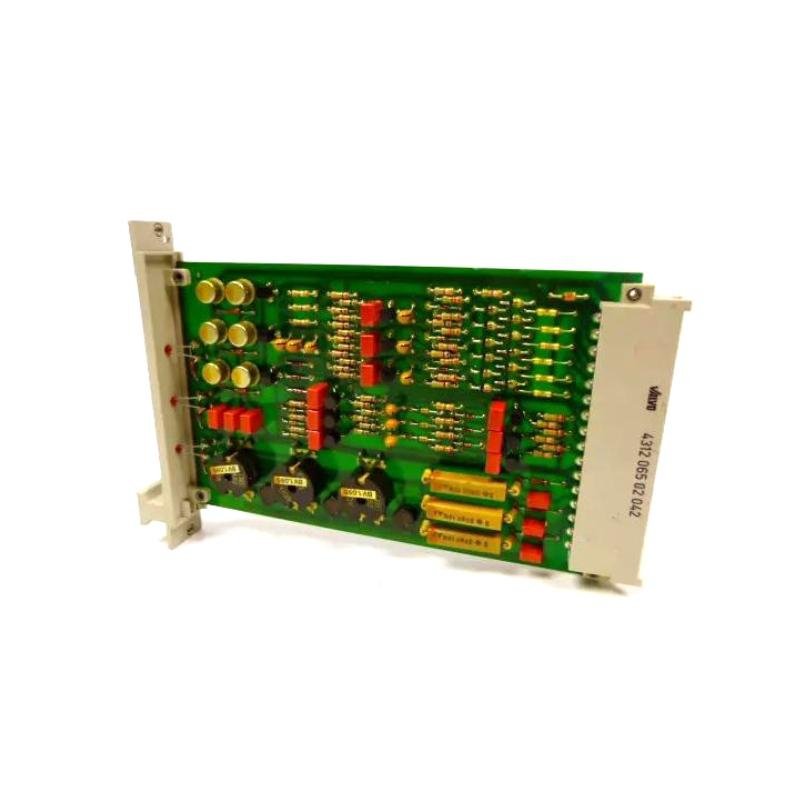

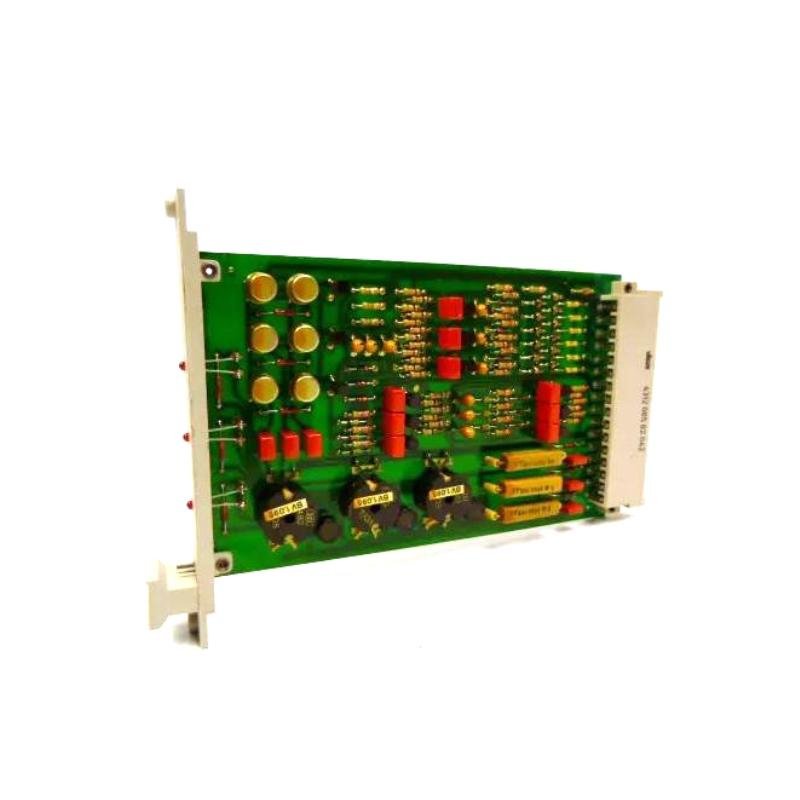

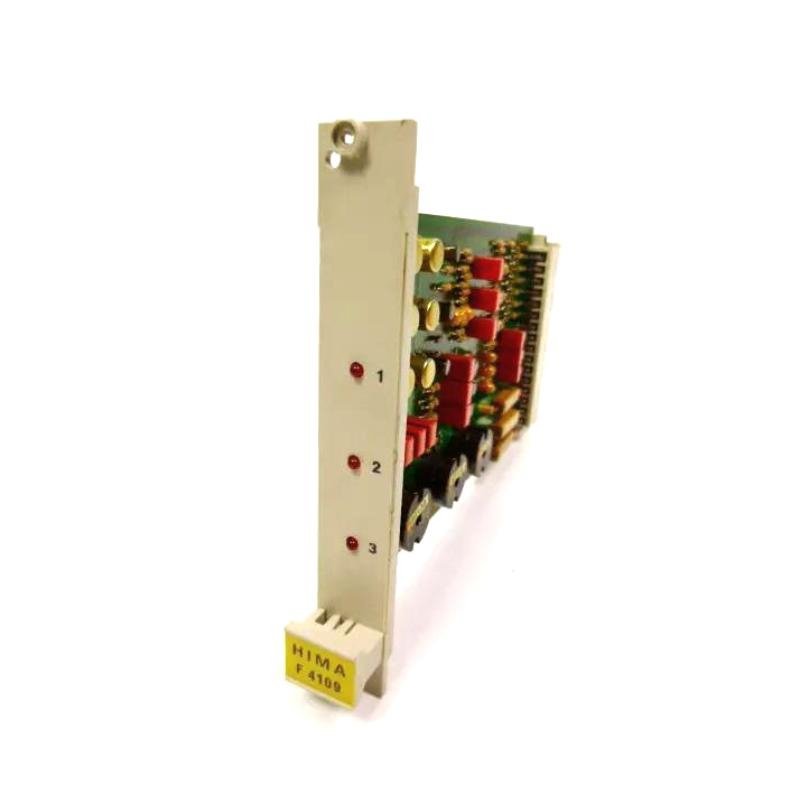

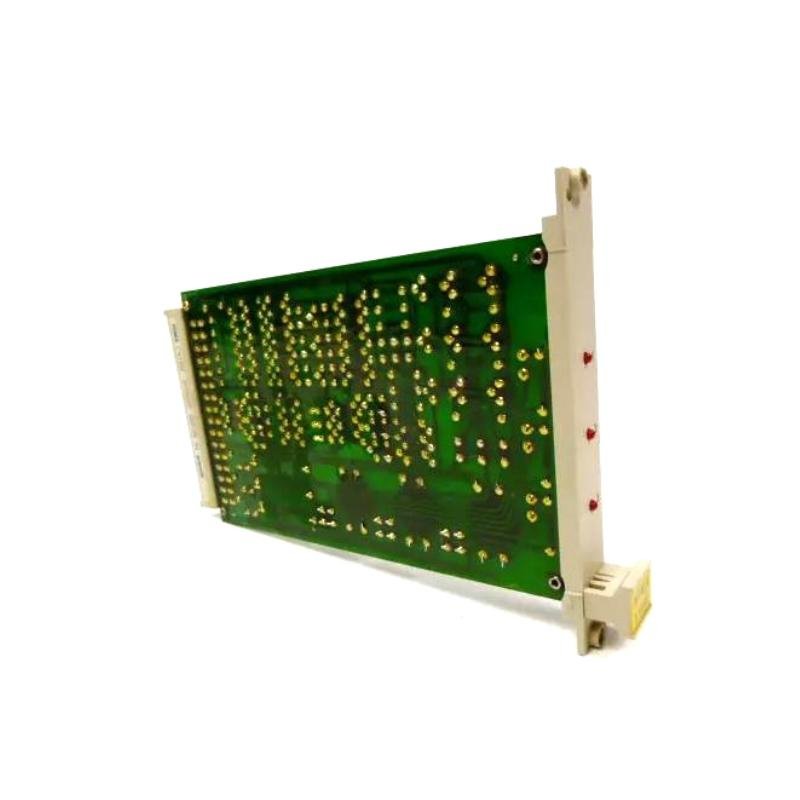

Hima F4109 Safety-related Four-channel AND Door Module

The HIMA F4109 Safety-related Four-channel AND Door Module is part of the Planar F safety system, designed to manage and monitor access control in critical environments. This module is engineered for applications that require stringent safety monitoring of multiple doors, ensuring both safety and efficiency in operations. The four-channel design allows for monitoring of up to four doors, with the AND logic providing enhanced reliability and safety in door status verification. It integrates seamlessly with other safety-related components in the Planar F system, providing a comprehensive solution for safety-critical applications.

Key Features

• Safety Integrity Level (SIL 3): Fully certified to SIL 3, ensuring compliance with the highest functional safety standards.

• Four-channel Monitoring: Monitors up to four doors or access points, making it ideal for large safety systems requiring multiple monitoring points.

• AND Logic: Uses AND logic to ensure that only when all conditions are met will the door be confirmed as safe, enhancing overall system reliability.

• Redundancy: Provides redundancy to ensure continued operation in the event of a failure, contributing to system uptime and safety.

• Built-in Diagnostics: Includes advanced diagnostics to detect any faults or issues, ensuring that the system continues to function safely and effectively.

• Compact and Modular Design: Designed for easy integration into the Planar F system, offering flexibility in mounting and configuration.

Technical Specifications

Dimensions and Weight

Module Information

Electrical and Physical Characteristics

System Compatibility

Industry Applications

• Industrial Safety Systems: Essential in critical industrial environments where multiple doors or access points need to be safely monitored, such as power plants and manufacturing facilities.

• Emergency Shutdown Systems (ESD): Vital in ESD applications where confirming the safe status of doors is crucial for personnel protection during an emergency.

• Oil & Gas: Commonly used in the oil and gas industry to monitor safety doors in hazardous areas, ensuring compliance with stringent safety regulations.

• Chemical and Pharmaceutical Industries: Ensures secure monitoring and access control in environments where hazardous materials are handled, ensuring both safety and compliance with industry standards.

The HIMA F4109 Safety-related Four-channel AND Door Module is a key element in Planar F safety systems, offering enhanced door monitoring capabilities for mission-critical safety applications. With its high level of reliability, advanced diagnostics, and SIL 3 certification, it provides a robust solution for industries requiring high safety integrity in door access management.
