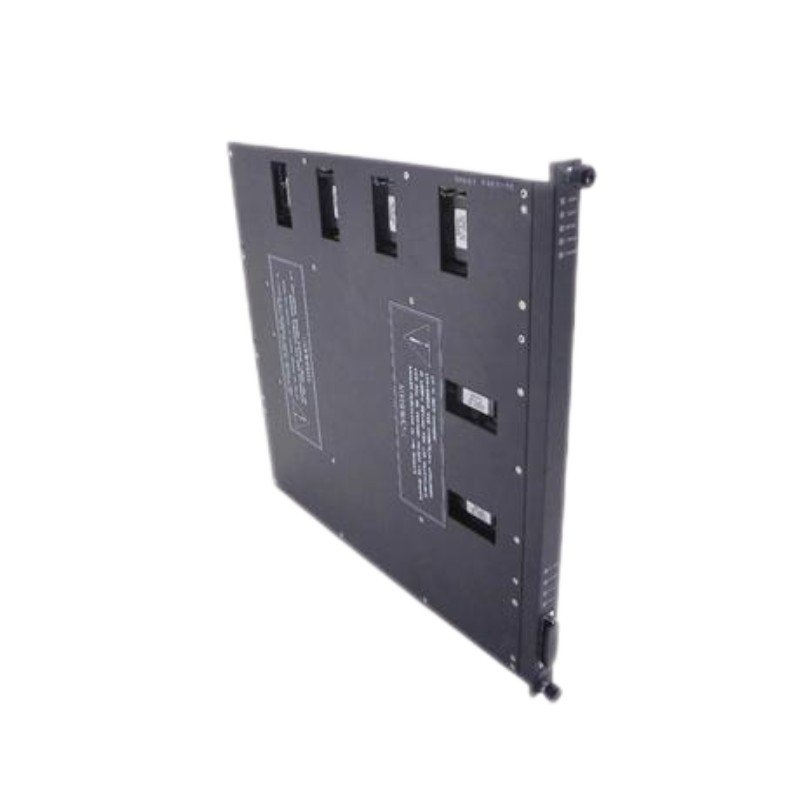

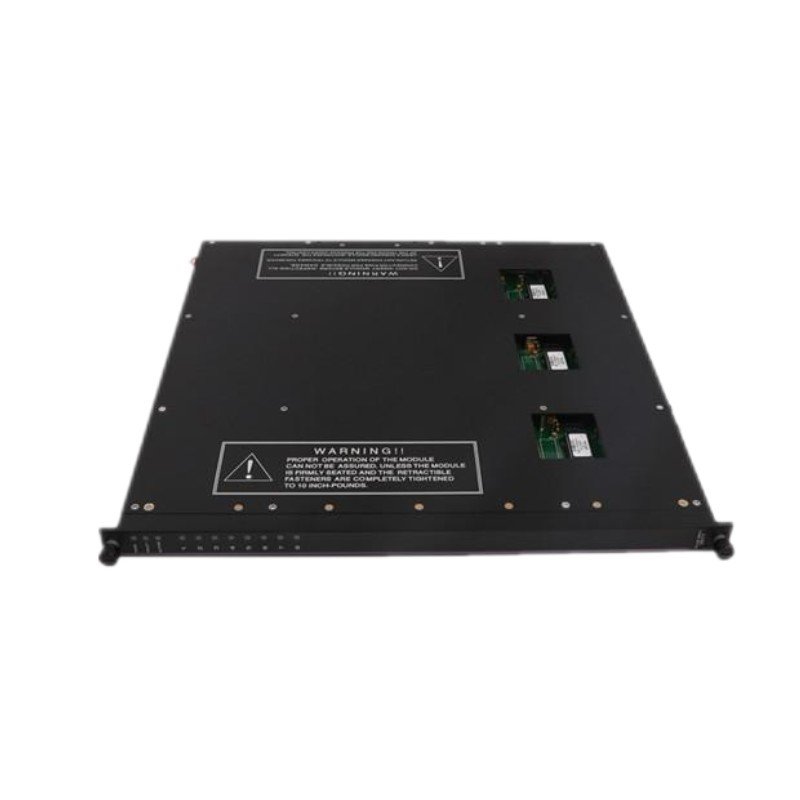

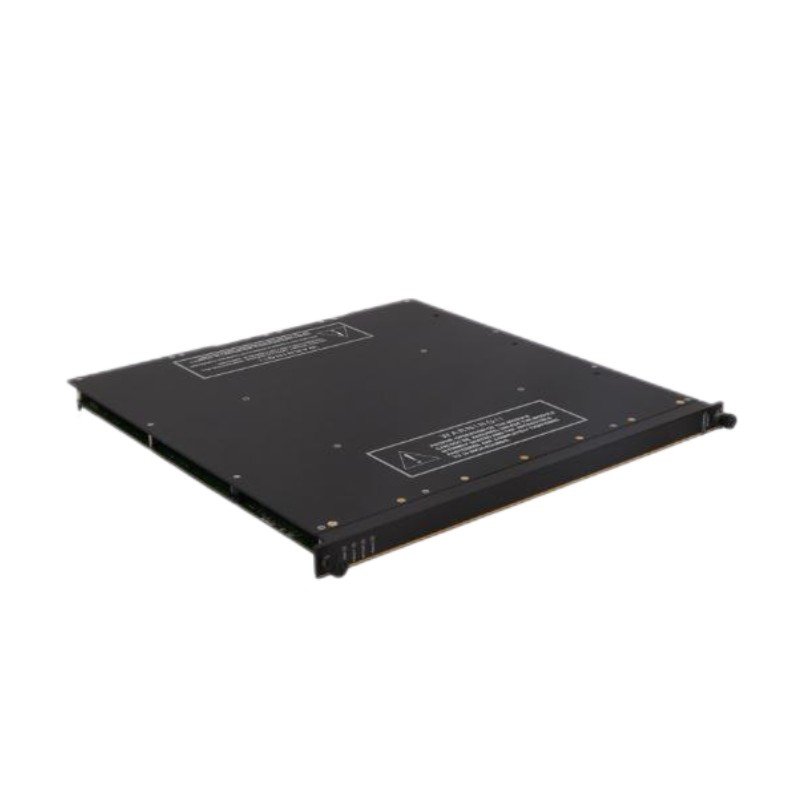

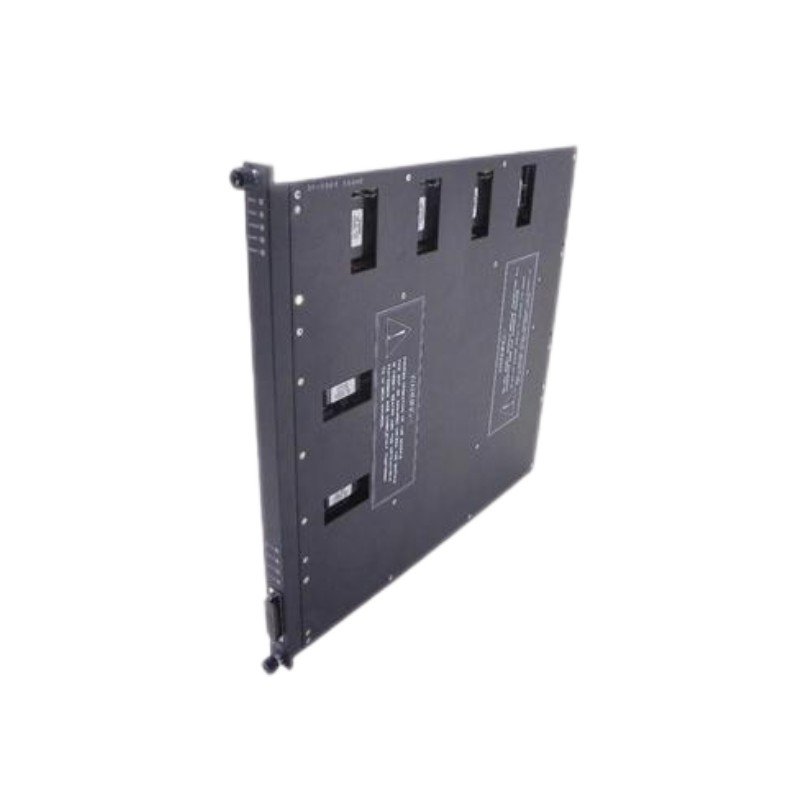

Triconex Triconex 3611E Digital Output Modules
Manufacturer: Triconex
Product Number: 3611E
Category: Digital Output Module
Number of Channels: 8
Output Type: 24 V DC
Output Current: 2 A per channel
Architecture: Triple Modular Redundancy (TMR)
Safety Integrity Level (SIL): SIL 3 capable
Application: Secure and safe operation for critical industrial processes
Product Description
The Triconex 3611E Digital Output Module is a high-reliability, high-integrity control module designed to provide secure and safe operation for critical industrial processes. With eight supervised output channels, this module is engineered for use in Triconex safety systems, making it an essential component in industries requiring fault tolerance and continuous system monitoring. The 3611E module is capable of controlling 115 VAC loads and continuously monitors output wiring conditions to detect faults such as open circuits, short circuits, and power loss.
Designed to meet the highest safety standards, the 3611E ensures reliable and uninterrupted operation in demanding environments, ensuring that industrial operations remain secure even in the event of failure. It is widely used in applications such as oil and gas, chemical processing, and power generation, where safety and operational integrity are paramount.
Key Features
-
Eight Supervised Output Channels: Each channel supports 115 VAC output, providing a reliable solution for various control tasks.
-
Fault Detection and Supervision: Continuously monitors wiring for open circuits, short circuits, and power loss, enhancing safety and preventing failures.
-
High Switching Capacity: Capable of handling up to 2,000 VA of switching power for resistive loads, making it ideal for high-demand applications.
-
Rugged and Durable Design: Built to perform reliably in harsh industrial environments, ensuring continuous operation under extreme conditions.
-
Safety and Compliance: Meets industry safety standards, ensuring SIL 3 certification and compliance with IEC 61508 and ISO 13849.
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 114.3 ×127 × 107.95 mm |
| Weight | 1.5 kg |
General Information
| Item | Specification |
|---|---|
| Model | 3611E |
| Manufacturer | Triconex |
| Output Channels | 8 |
| Output Type | Digital (Relay) |
| Nominal Voltage | 115 VAC |
| Voltage Range | 90-155 VAC |
| Frequency Range | 47-63 Hz |
| Maximum Switching Power | 2,000 VA (resistive) |
| Current Rating | 2 A per channel |
| Minimum Load | 50 mA |
| Diagnostic Indicators | Output Status |
Environmental Specifications
| Item | Specification |
|---|---|
| Operating Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
Compliance and Certifications
| Item | Specification |
|---|---|
| Safety Certifications | SIL 3 |
| Compliance Standards | IEC 61508, ISO 13849 |
Industry Applications
The Triconex 3611E Digital Output Module is designed to meet the stringent safety and operational requirements of industries where safety and reliability are critical. Its robust features and fault detection make it an ideal solution for various sectors, including:
-
Oil & Gas: Ensures safe operation in upstream, midstream, and downstream activities by controlling essential systems and processes.
-
Chemical Processing: Used in chemical plants for controlling hazardous processes, ensuring that systems run smoothly with minimal risk.
-
Power Generation: Crucial in power plants for controlling critical systems and maintaining high operational safety and performance.
-
Manufacturing: Provides enhanced control and safety for automated manufacturing processes, ensuring reliable production.
The 3611E module helps to secure the functionality of safety-critical systems in these industries by offering robust fault detection, reliable operation, and high levels of safety and compliance. Its flexibility and performance make it an indispensable part of modern industrial control and safety systems.
