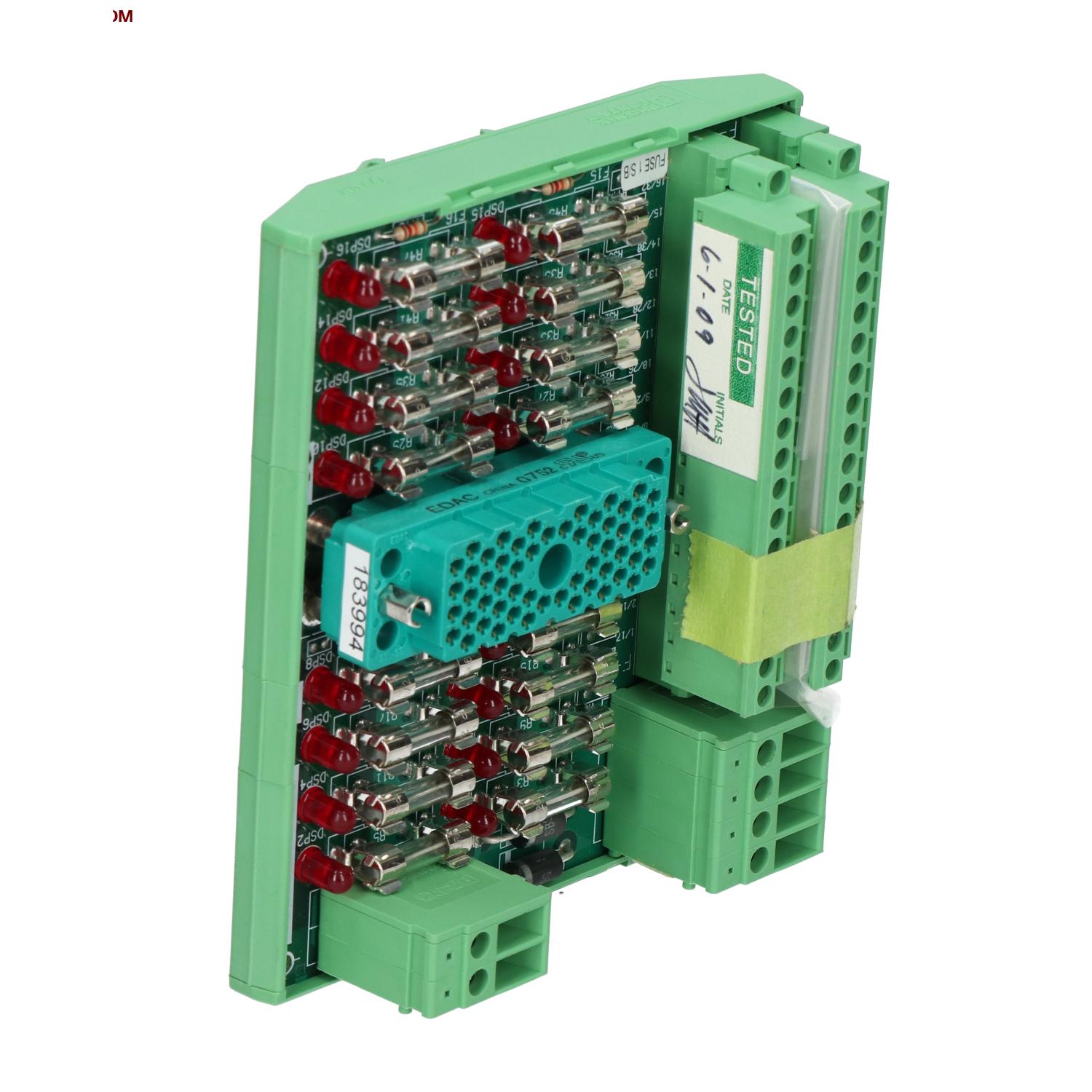

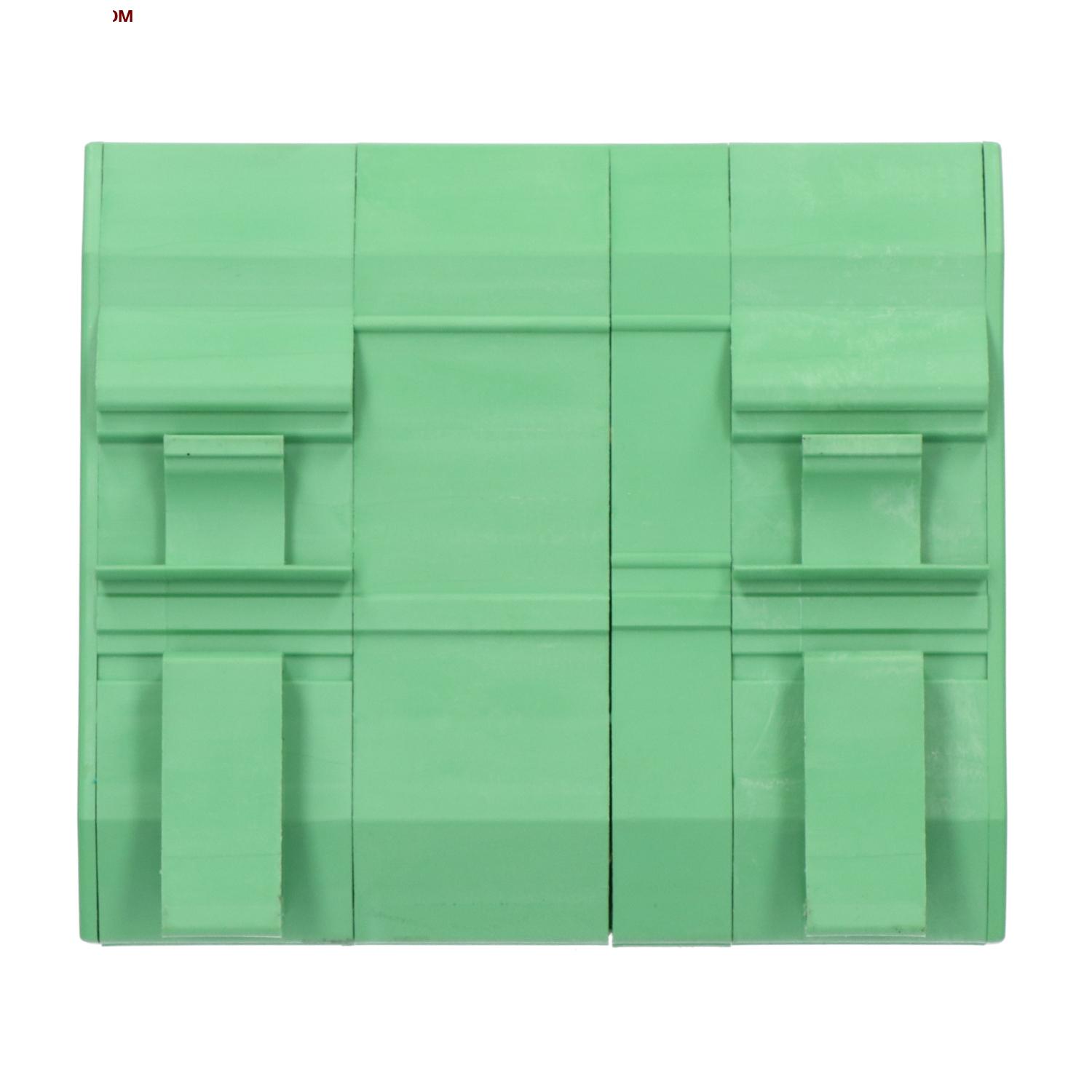

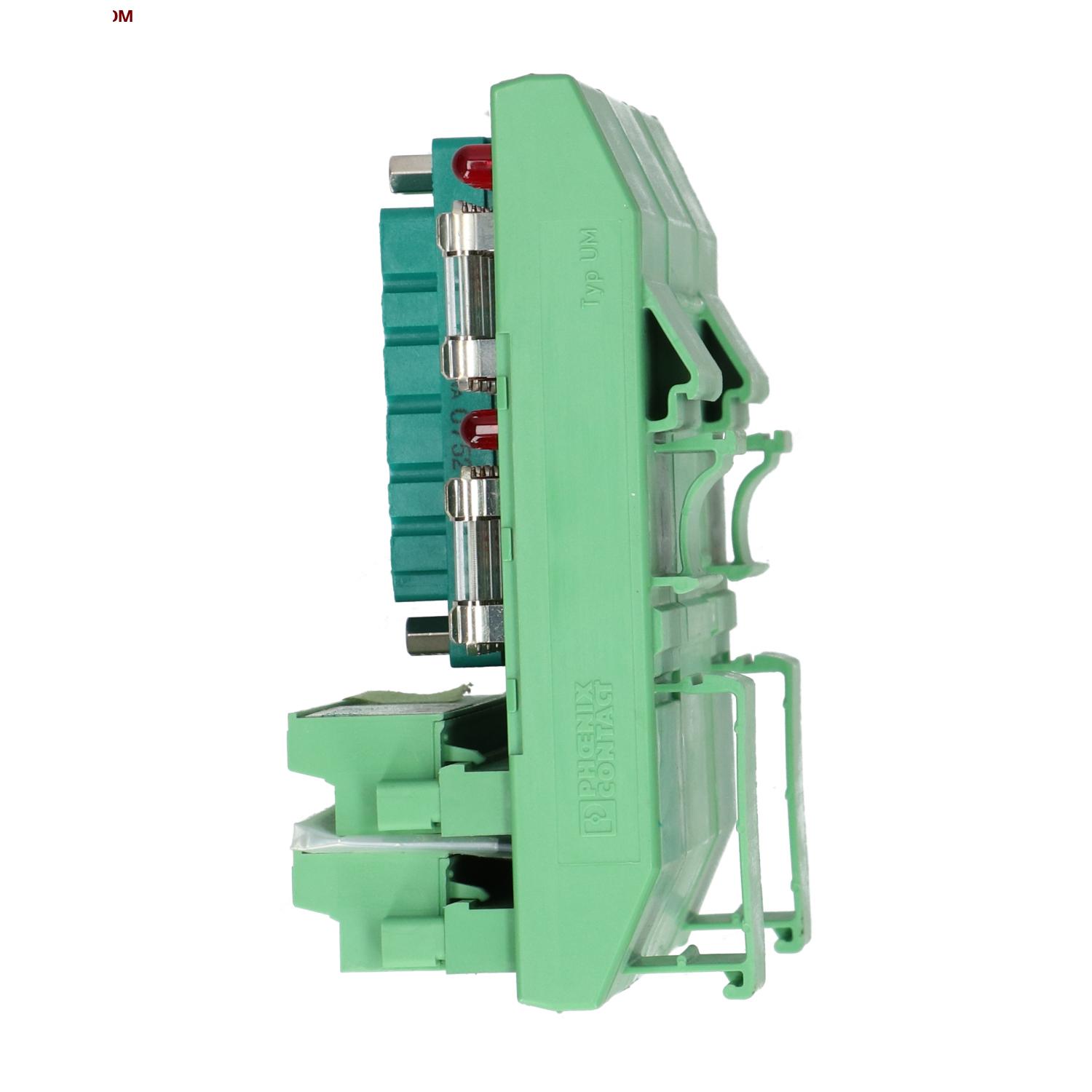

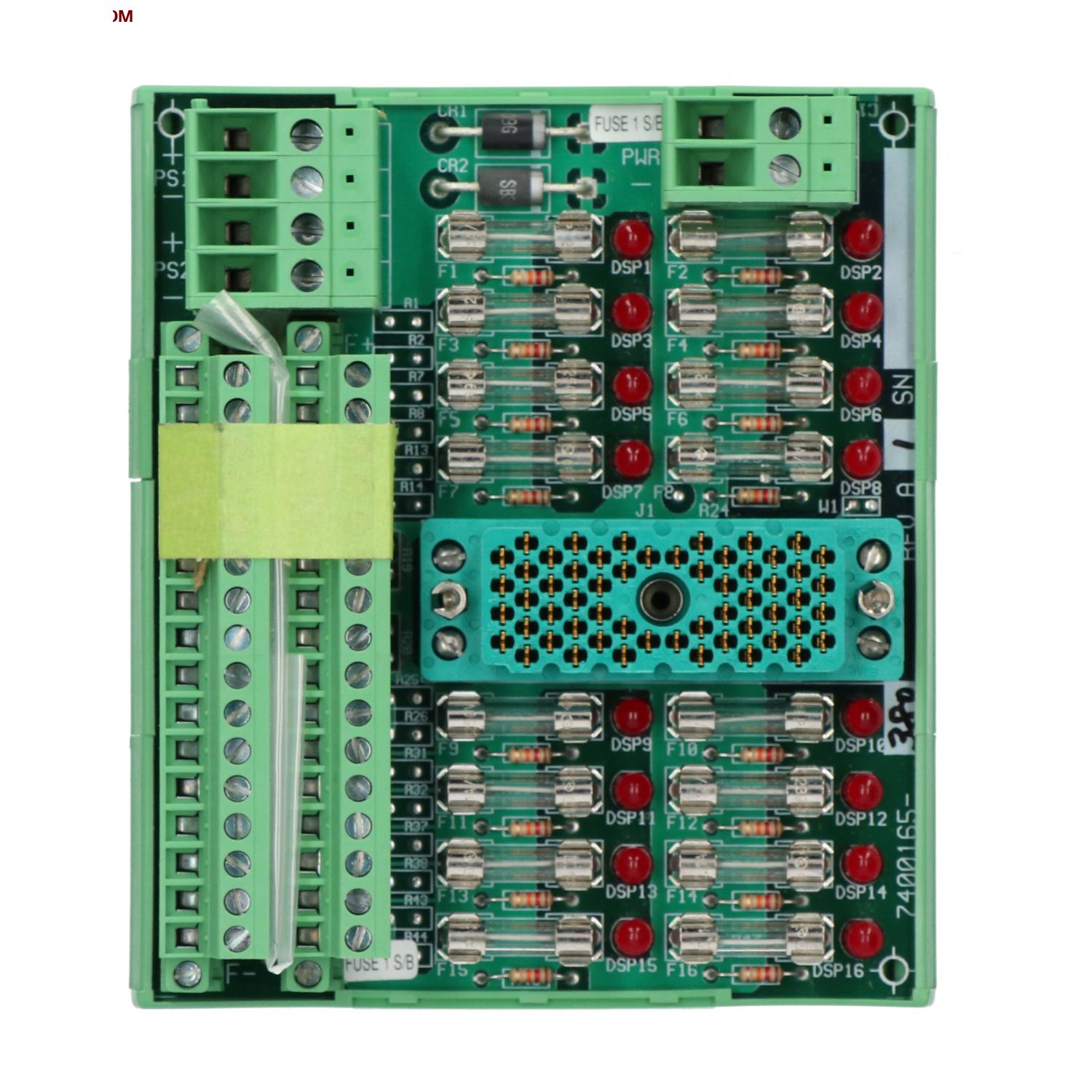

Triconex 9563-820 Digital Input Terminal Panel
Manufacturer: Triconex
Product Number: 9563-820
Category: Digital Input Terminal Panel
Function: Termination point for digital input signals offering secure and organized connection
Application: Integral component for Triconex safety and critical control systems
Product Description
The Triconex 9563-820 Digital Input Terminal Panel is an integral component used in conjunction with Triconex safety and critical control systems. This panel serves as the termination point for digital input signals, offering a secure and organized interface between field wiring and the Tricon mainframe. It ensures safe signal transmission, maintains high signal integrity, and simplifies maintenance and diagnostics operations.
Designed to support high-reliability and safety-critical environments, the 9563-820 panel is built with quality components and robust construction, meeting the rigorous demands of industries such as oil & gas, power generation, and chemical processing.
Key Features
-
Field Signal Termination: Provides secure and reliable connections for digital input signals
-
Optimized for Triconex Systems: Designed specifically for compatibility with Tricon digital input modules
-
High Signal Integrity: Minimizes electrical noise and signal loss during transmission
-
Simple Maintenance: Easy identification of wiring with labeled terminals
-
DIN Rail Mountable: Allows quick installation and replacement
-
Rugged Design: Built to operate in industrial environments with high durability
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 114.3 ×127 × 107.95 mm |
| Weight | 0.38 kg |
Module Information
| Item | Specification |
|---|---|
| Model Number | 9563-820 |
| Panel Type | Digital Input Terminal Panel |
| Mounting | DIN Rail or Panel Mount |
| Channel Support | Supports up to 32 Digital Inputs |
Electrical and Physical Characteristics
| Item | Specification |
|---|---|
| Input Type | Dry Contact or Voltage Input |
| Insulation Resistance | ≥ 100 MΩ at 500 VDC |
| Voltage Withstand | 1500 VAC for 1 minute |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Protection Class | IP20 |
System Compatibility
| Item | Specification |
|---|---|
| Compatible Systems | Triconex Safety Systems (Digital Input Modules) |
| Terminal Type | Screw Terminals |
| Cable Type | Shielded or Unshielded, per system spec |
| Wiring Standard | Meets industrial signal wiring standards |
Industry Applications
-
Oil & Gas: Interfaces digital input signals from field devices to control systems in refineries and offshore platforms
-
Chemical & Petrochemical: Facilitates safe input signal termination for reactors and storage systems
-
Power Generation: Connects input signals from turbines, generators, and safety interlocks
-
Water & Wastewater: Used for monitoring field signals in treatment plant automation
-
Manufacturing & Industrial Automation: Ensures stable signal integration for factory safety systems
The Triconex 9563-820 Digital Input Terminal Panel is a dependable and efficient interface module, enhancing the integrity and organization of signal connections within Triconex systems. It ensures reliable operation and simplified field integration in high-demand safety environments.
