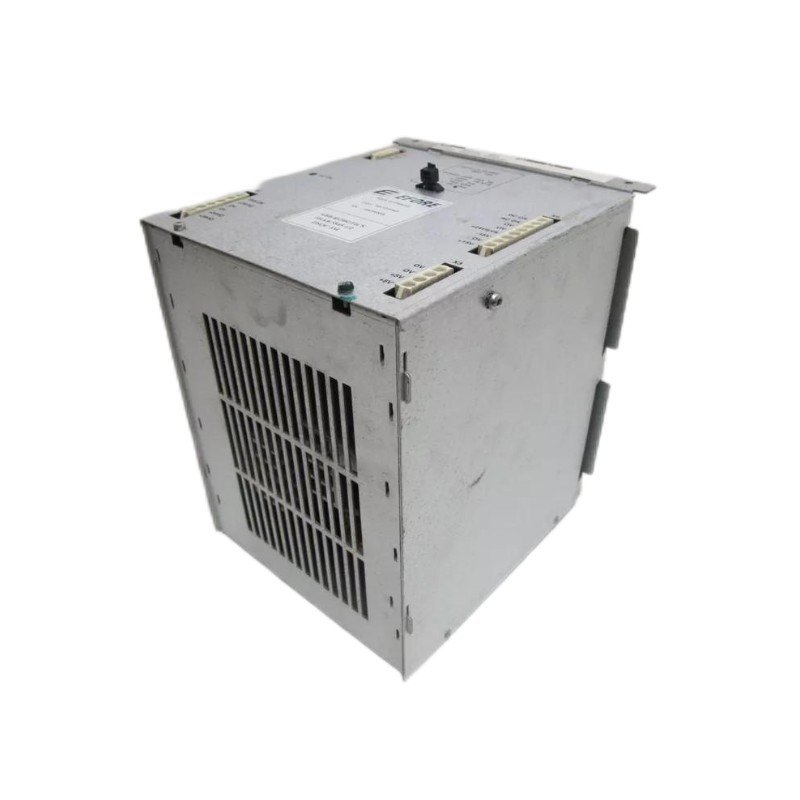

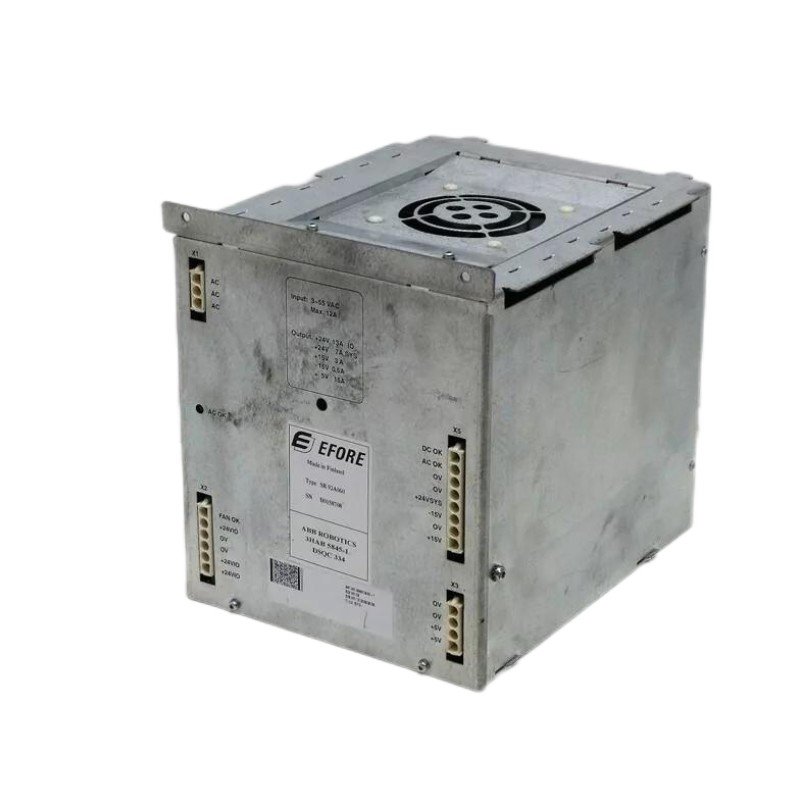

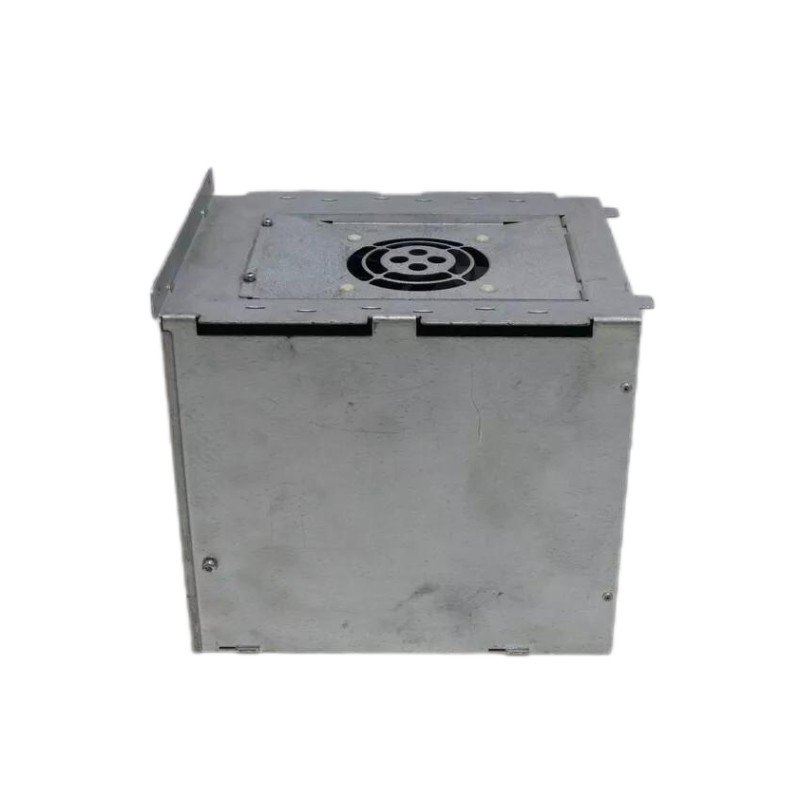

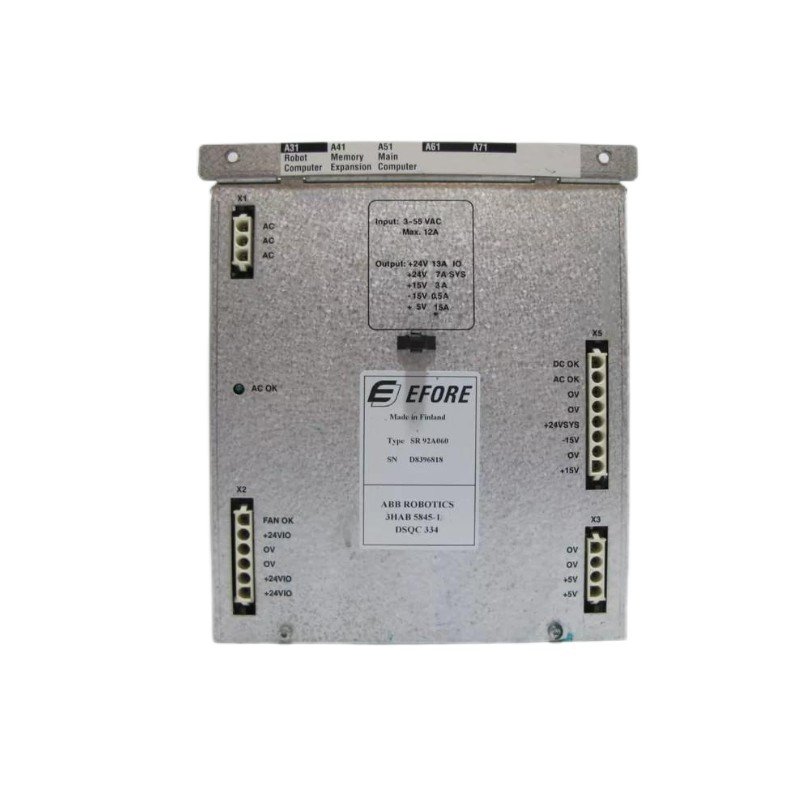

ABB DSQC334 3HAB5845-1/1 Servo Drives
Manufacturer: ABB
Product Number: DSQC334 (3HAB5845-1/1)
Category: Servo Drive Module
Control: Precise servo drive control for industrial automation systems
Application: Robotic and automated production systems requiring advanced control technology
Product Description
The ABB DSQC334 3HAB5845-1/1 is a high-performance servo drive module designed for precise control and driving applications in industrial automation systems. This module combines advanced control technology with powerful driving capabilities, making it suitable for various high-precision motion control systems. The DSQC334 integrates seamlessly with ABB’s robot systems and other automation control devices, and is widely used in robot control, precision machining, robotic arms, and other industrial applications, providing high-precision motion control and driving capabilities.
This servo drive can maintain excellent performance under high-speed and high-load conditions, making it ideal for industrial environments that require precise speed, position, and torque control. The reliability and efficiency provided by the ABB DSQC334 make it a key component in the automation field.
Key Features
-
High Precision Motion Control
Provides high-precision control for speed, position, and torque, meeting strict motion control requirements.
-
Powerful Driving Capacity
Supports high-load, high-speed operation, suitable for industrial robots, CNC equipment, and other precision control devices.
-
Strong Integration
Seamlessly integrates with ABB’s control systems and other automation equipment, simplifying system integration and management.
-
Multiple Protection Features
Built-in protection features such as overload, overheat, and overvoltage protection ensure stable operation in harsh environments.
-
Compact Design
The compact design allows easy installation in space-constrained industrial environments.
Technical Specifications
Dimensions and Weight
| Item | Parameter |
|---|---|
| Dimensions | 120mm x 80mm x 40mm |
| Weight | 0.5 kg |
General Information
| Item | Parameter |
|---|---|
| Model | ABB DSQC334 3HAB5845-1/1 |
| Function | Servo drive module |
| Input Voltage | 380 V–480 V AC |
| Output Power | 1.5 kW–15 kW |
| Control Type | Position, speed, torque control |
| Operating Environment | Temperature range: 0°C to 55°C |
| Installation | DIN rail mounted |
| Interface Type | Digital I/O, analog input interfaces |
Performance and Functions
| Item | Parameter |
|---|---|
| Drive Type | Servo motor drive |
| Max Output Power | 15 kW |
| Response Time | High-speed response, suitable for real-time control systems |
| Applicable Load Range | Suitable for various loads, including high-load, high-speed operations |
| Control Accuracy | High precision in speed, position, and torque control |
| Protection Features | Overload, overheat, and overvoltage protection |
Industry Applications
The ABB DSQC334 3HAB5845-1/1 servo drive module is widely used in the following industries:
-
Industrial Automation
Mainly used in industrial automation production lines and robot control systems to provide precise motion control and driving functions.
-
Robot Control Systems
Provides precise motion control and torque management in industrial robots, ensuring accurate execution of robotic movements.
-
CNC Machining Equipment
Used in CNC machines to provide high-precision servo control, ensuring high-accuracy movement during the machining process.
-
Precision Control
Provides precise speed, position, and torque control in precision machinery and instruments, adapting to high-load and high-speed application needs.
