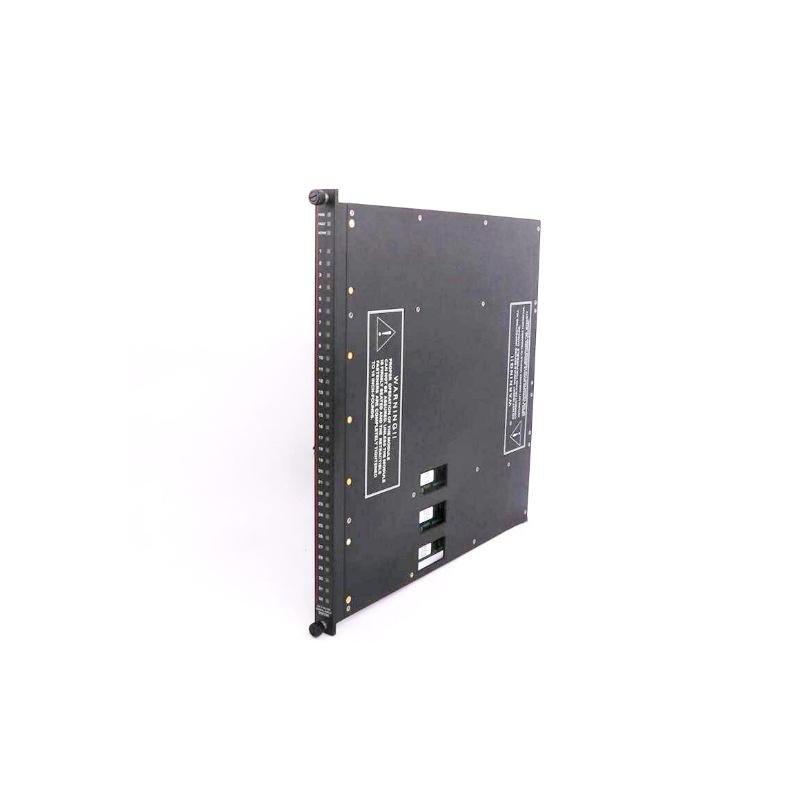

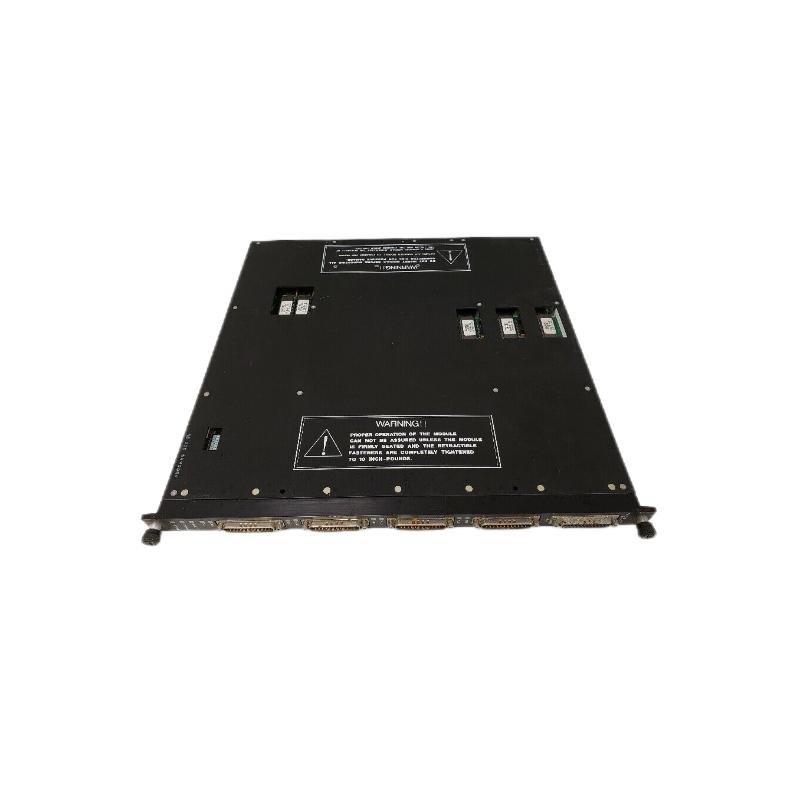

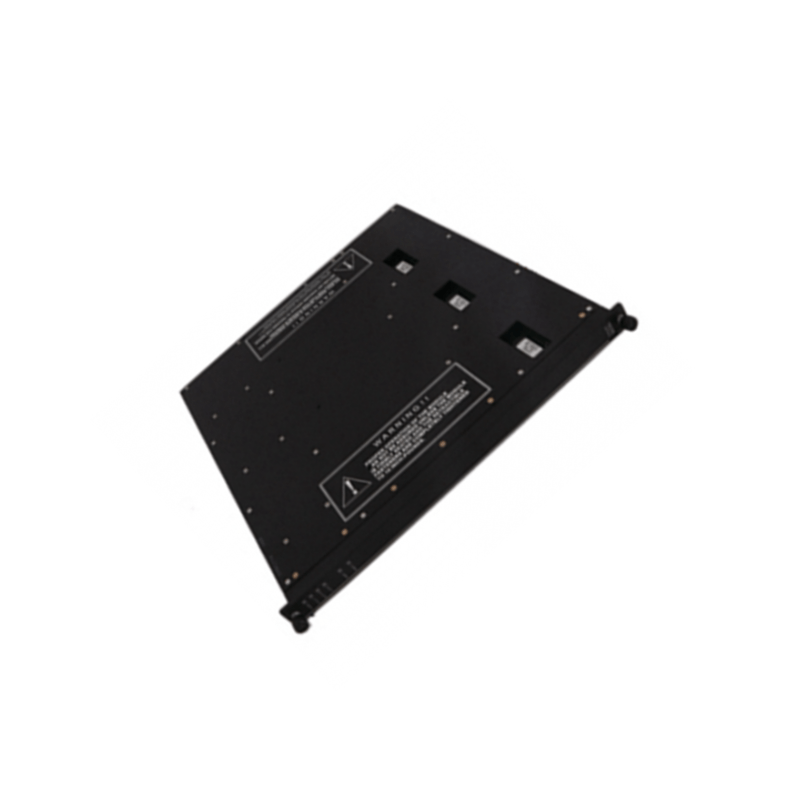

Triconex 4119A Communication Module

The Triconex 4119A is part of the Triconex Safety System, known for its high-performance, reliability, and flexibility in industrial control systems. Designed for advanced safety and control applications, this product is engineered to meet the most stringent safety standards in industries like oil and gas, chemical processing, power generation, and more.

The Triconex 4119A integrates seamlessly into Tricon systems, providing fault-tolerant, redundant, and highly secure control solutions for critical safety and operational systems. Its advanced features include built-in diagnostics, system monitoring, and automatic error handling, ensuring maximum uptime and performance in harsh environments.

Advantages

1. High Reliability: Built with redundancy and fault tolerance, the Triconex 4119A ensures continuous operation without downtime, providing maximum reliability in safety-critical environments.

2. Flexible Integration: The unit supports easy integration into existing systems and is compatible with a wide range of industry protocols, allowing for seamless upgrades or expansions.

3. Advanced Diagnostics: Includes advanced diagnostic capabilities for real-time system health monitoring, which helps in the early detection of potential issues.

4. Safety Certification: The 4119A is certified for use in high-safety environments, meeting industry-standard safety requirements such as IEC 61508 and SIL3.

5. Compact Design: The product is designed for space efficiency, allowing it to be installed in a variety of industrial environments.

6. Enhanced Performance: Optimized for high-speed processing and superior system response, ensuring that safety and operational control are maintained in real-time.

Technical Specifications

Product Applications

The Triconex 4119A is ideal for use in a variety of industries, particularly in safety-critical applications. Common applications include:

1. Oil and Gas: For monitoring and controlling pressure, flow, and temperature in hazardous environments.

2. Chemical Processing: Ensures that the safety functions in chemical plants remain operational even in the event of faults or failures.

3. Power Generation: Used in nuclear, gas, and coal-fired power plants for ensuring operational safety and compliance with regulatory standards.

4. Manufacturing: Used in industries that require stringent safety standards to protect personnel and machinery.

5. Mining: Helps manage equipment safety and control systems, particularly in hazardous areas.

Installation Instructions

1. Mounting: Ensure that the mounting area is dry, clean, and free of any obstructions. The Triconex 4119A can be mounted in a standard DIN rail system.

2. Wiring: Follow the wiring guidelines provided in the installation manual. Use the appropriate gauges and ensure that all connections are secure to avoid electrical faults.

3. Power: Verify that the input power supply is within the specified voltage range (24V DC). Incorrect power connections can result in damage to the unit.

4. Testing: After installation, perform system checks to ensure that all inputs and outputs are functioning correctly. Refer to the diagnostic tools available in the system to monitor the status of the unit.

5. System Integration: Ensure that the Triconex 4119A is properly integrated with other modules in the Tricon system. Configuration may be required based on your specific application.

FAQ

Q1: What is the power supply requirement for the Triconex 4119A?

A1: The Triconex 4119A requires a 24V DC power supply. Ensure that the power supply meets the specified voltage to prevent system failure.

Q2: Can the Triconex 4119A be used in hazardous environments?

A2: Yes, the Triconex 4119A is certified for use in hazardous environments, including oil and gas and chemical processing facilities, where safety and reliability are critical.

Q3: Is the 4119A module compatible with other Triconex models?

A3: Yes, the Triconex 4119A is fully compatible with other models in the Triconex range, such as the 4351A, 3351, and 4501, enabling flexible system integration.

Q4: What certifications does the 4119A have?

A4: The Triconex 4119A is certified to meet international safety standards, including IEC 61508 and SIL3, ensuring it can be used in safety-critical applications.

Q5: What is the maximum number of I/O points the 4119A can support?

A5: The 4119A supports up to 16 I/O points, with the ability to expand depending on system requirements.

Q6: How can I monitor the health of the Triconex 4119A?

A6: The 4119A includes advanced diagnostic tools that allow for real-time monitoring of system health and can alert operators to potential issues before they escalate.
