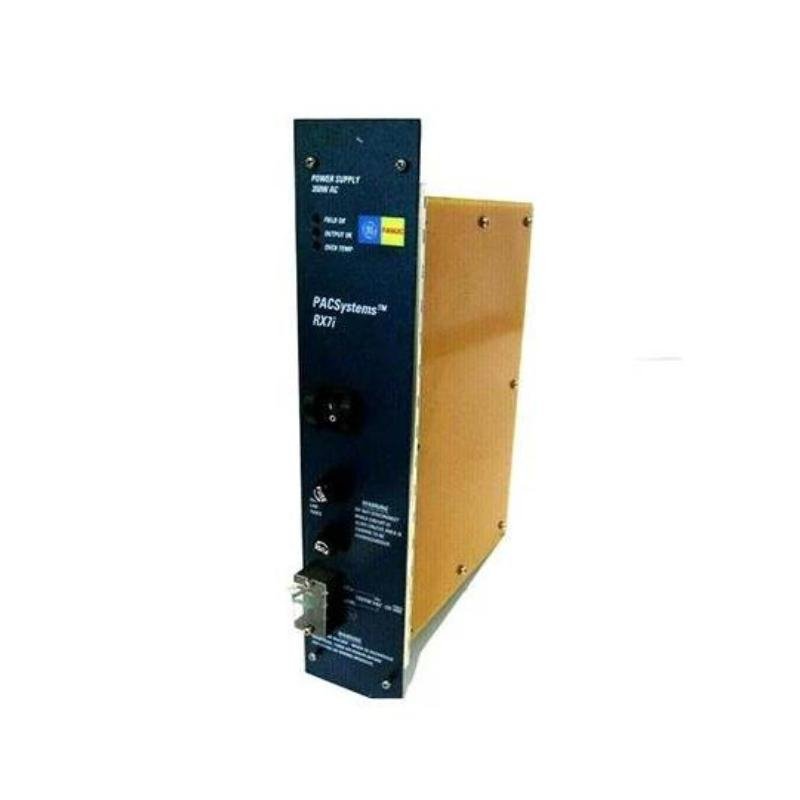

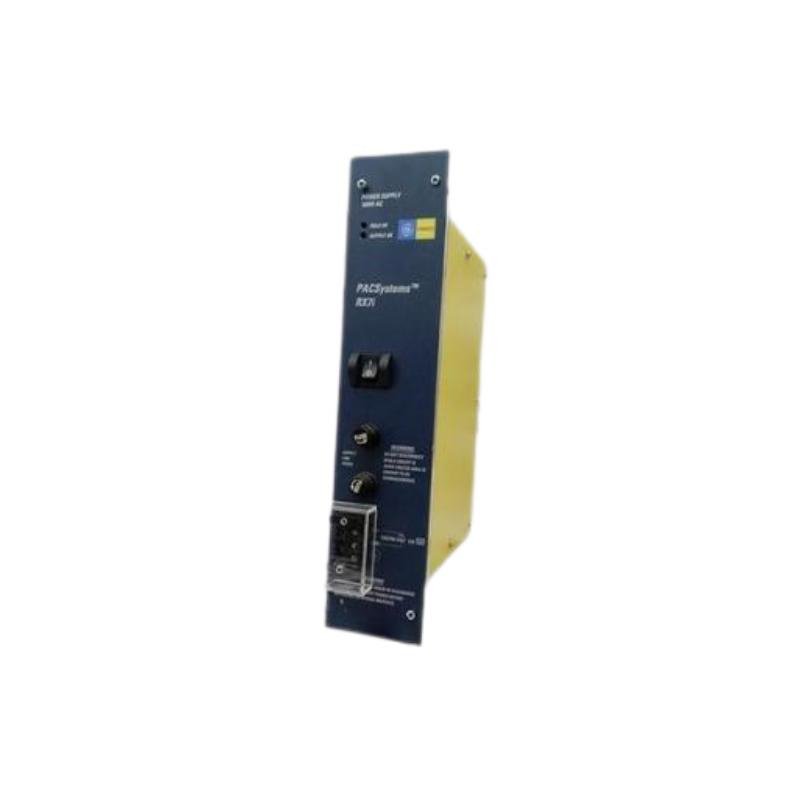

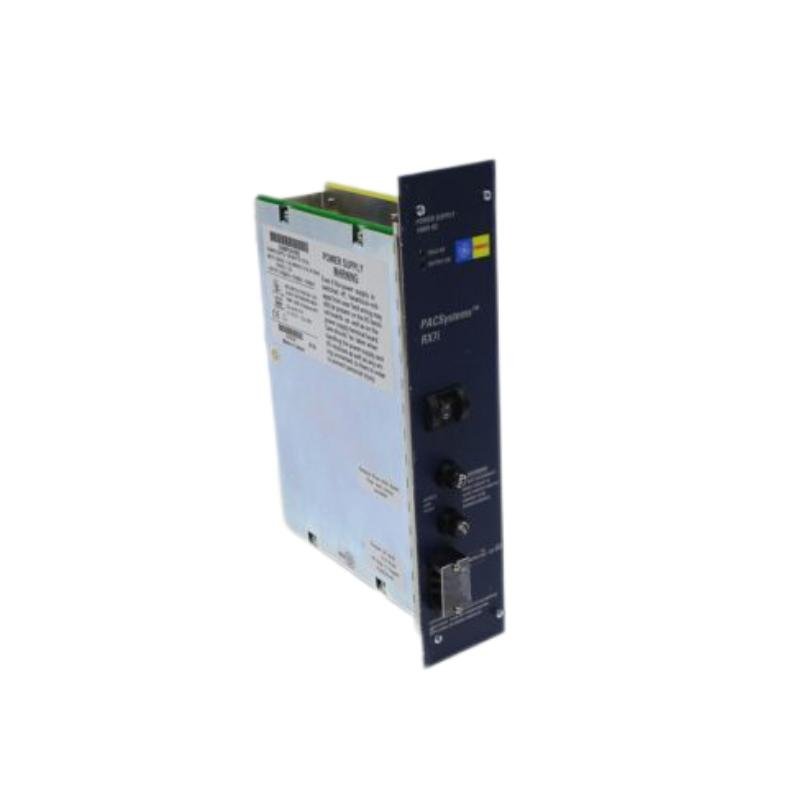

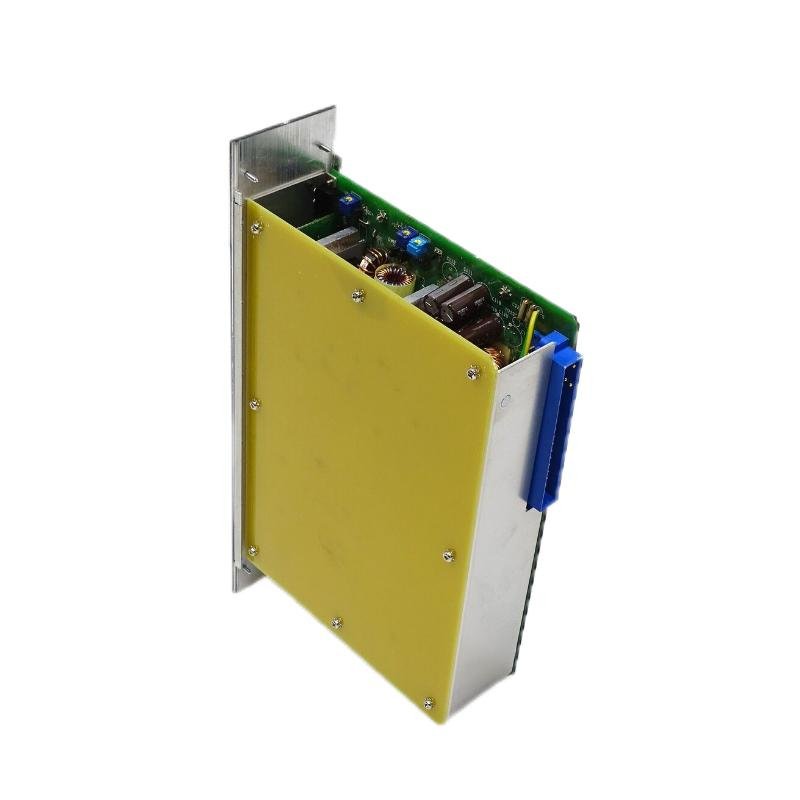

General Electric IC698PSA100E Multifunction Power Supply Module

The GE IC698PSA100E is a highly reliable multifunction power supply module designed for use in industrial control applications. As a key component in the GE 90-30 PLC (Programmable Logic Controller) system, this power supply ensures stable power delivery to the system’s components, providing operational reliability in mission-critical environments. The IC698PSA100E features a rugged design, capable of handling harsh industrial environments, and supports a wide input voltage range, ensuring its versatility across various applications.

This power supply module is engineered to efficiently provide both 5V DC and 24V DC outputs, making it suitable for powering the logic controller as well as field devices. Additionally, it includes features like overvoltage, overcurrent, and thermal protection to safeguard against potential electrical faults. The IC698PSA100E is designed for use in control systems requiring high availability, such as manufacturing processes, automation systems, and equipment monitoring.

With an easy-to-install and compact design, the GE IC698PSA100E is optimized for use in small to medium-sized systems, offering both reliability and flexibility. Its design ensures that the power supply remains stable even under high load conditions, minimizing downtime and enhancing the system’s operational performance.

Technical Specifications

Key Features and Advantages

1. Wide Input Voltage Range–The IC698PSA100E supports a broad input voltage range (90-132 VAC and 180-264 VAC), making it compatible with various power sources used in industrial systems.
2. Dual Output Power Supply–It provides both 5V DC and 24V DC outputs, powering both the PLC logic controller and connected field devices.
3. High Efficiency–With an efficiency rating of 85%, the power supply ensures minimal energy loss, contributing to lower operational costs and improved energy utilization.
4. Protection Features–The IC698PSA100E is equipped with overvoltage, overcurrent, and thermal protection, ensuring the safety and longevity of the power supply and the system it serves.
5. Compact and Space-Saving Design–Its compact size (76.2 mm x 127 mm x 160 mm) allows for easy installation in space-constrained control cabinets.
6. Reliable Performance–Built for high availability, the power supply delivers consistent and reliable performance even under demanding operating conditions, reducing the risk of downtime.
7. Easy Integration–Designed for use with the GE 90-30 PLC system, the IC698PSA100E offers seamless integration with existing industrial control setups.
8. Thermal Management–The module’s thermal protection feature ensures that it operates safely and efficiently even in environments with fluctuating temperatures.
9. Durability–Built to withstand the harsh conditions of industrial environments, the IC698PSA100E is ideal for use in manufacturing, automation, and process control applications.

Applications

The GE IC698PSA100E multifunction power supply module is ideal for use in a wide variety of industrial and control applications, including:

• Manufacturing Automation–Powering control systems for automated production lines, robotics, and packaging equipment.
• Energy and Utilities–Ensuring stable power for equipment used in energy production, distribution, and monitoring.
• Process Control–Used in industrial processes such as chemical production, oil and gas, and food processing.
• Transportation Systems–Powering control systems in railway signaling, airport security, and traffic management systems.
• Machine Control–Providing power to machinery and systems that require continuous operation and high reliability.
