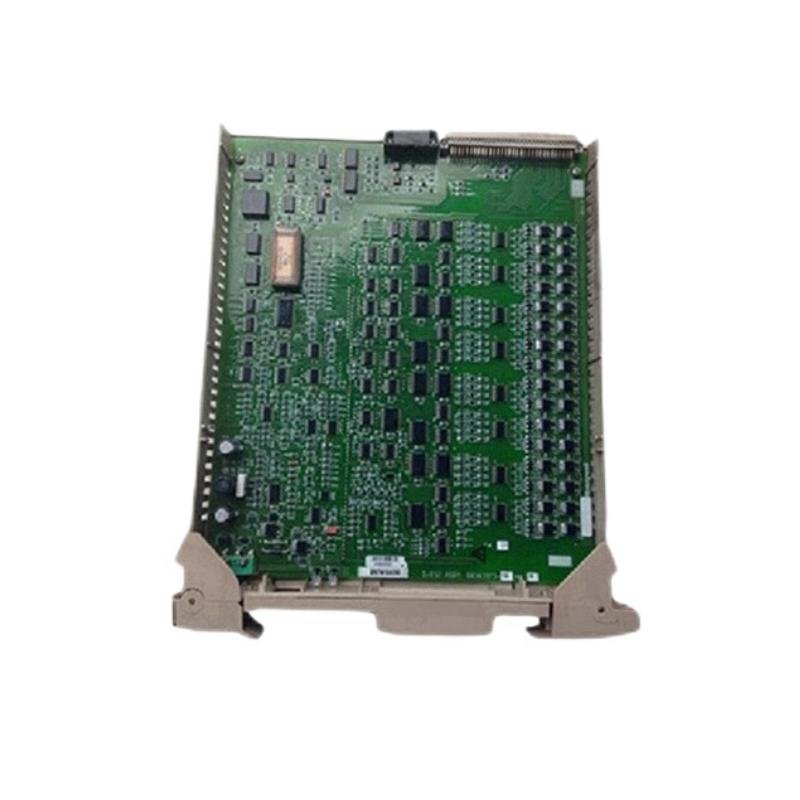

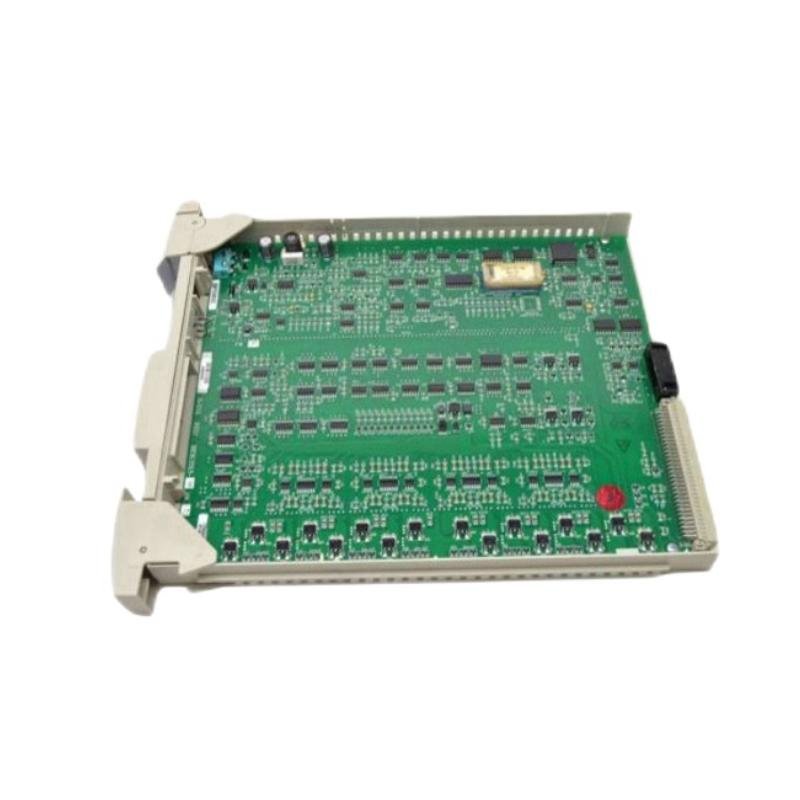

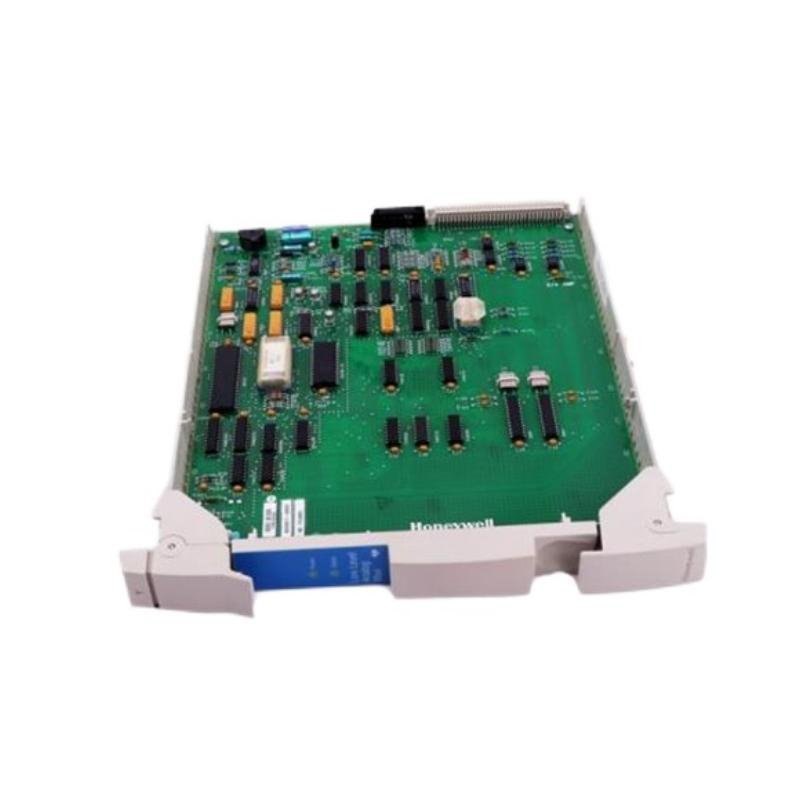

Honeywell MC-PDOY22 80363975-150 Digital Output Modules
Manufacturer: Honeywell
Product Number: MC-PDOY22 (80363975-150)
Category: Digital Output Module
Number of Channels: 16 (typical)
Output Type: 24V DC digital output
System Compatibility: Honeywell industrial automation systems
Function: Reliable and precise control over output signals
Product Description
The Honeywell MC-PDOY22 80363975-150 Digital Output Module is a high-performance component designed for industrial automation systems, offering reliable and precise control over output signals. This module is engineered to interface with Honeywell’s advanced control systems, providing secure and efficient operation in various industrial applications. The MC-PDOY22 module is particularly useful in environments that demand high availability and robust performance, such as oil & gas, chemical, and power generation sectors.
Built with durability in mind, the MC-PDOY22 offers features like hot-swappable functionality and extensive diagnostic capabilities, ensuring minimal downtime and streamlined maintenance procedures. Its compact design and secure connectivity make it an ideal choice for distributed control systems (DCS) and other critical automation infrastructures.
Key Features
-
High-Performance Outputs: Provides reliable control for a wide range of output devices.
-
Hot-Swappable: Can be replaced during operation without shutting down the system, ensuring continuous system uptime.
-
Diagnostic Indicators: Built-in LED indicators for real-time diagnostics and fault detection.
-
Compact Design: Saves valuable panel space while offering superior performance.
-
Rugged Construction: Designed to withstand harsh industrial environments with minimal maintenance.
-
Secure Connectors: Locking connectors prevent accidental disconnections and enhance operational reliability.
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 28 x 318 x 278mm |
| Weight | 0.58 kg |
General Information
| Item | Specification |
|---|---|
| Model | MC-PDOY22 80363975-150 |
| Manufacturer | Honeywell |
| Installation | Mounted in I/O base unit |
| Operating Temp | -20°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Power Supply | Supplied via backplane |
| Cooling Method | Natural air convection |
Electrical Characteristics
| Item | Specification |
|---|---|
| Rated Voltage | 24 V DC |
| Rated Current | Up to 1 A per channel |
| Insulation Resistance | > 100 MΩ at 500 V DC |
| Operating Temperature | -20°C to +60°C |
| EMC Compliance | IEC 61000-4-2, IEC 61000-4-3 compliant |
Industry Applications
-
Oil & Gas: Control of actuators, valves, and safety devices in exploration and refining systems.
-
Power Generation: Management of critical output functions in turbine and generator control systems.
-
Chemical Processing: Output control in continuous and batch process automation.
-
Pharmaceutical Manufacturing: High-reliability output signaling in regulated manufacturing environments.
-
Water Treatment Plants: Output operations for pumps, valves, and alarm systems.
-
General Factory Automation: Scalable control for machinery, safety systems, and process equipment.
The Honeywell MC-PDOY22 80363975-150 Digital Output Module is designed to provide precise, reliable control over output devices within a range of industrial applications. Its rugged construction, ease of installation, and hot-swappable functionality make it an ideal choice for ensuring seamless system operation and minimal downtime.
