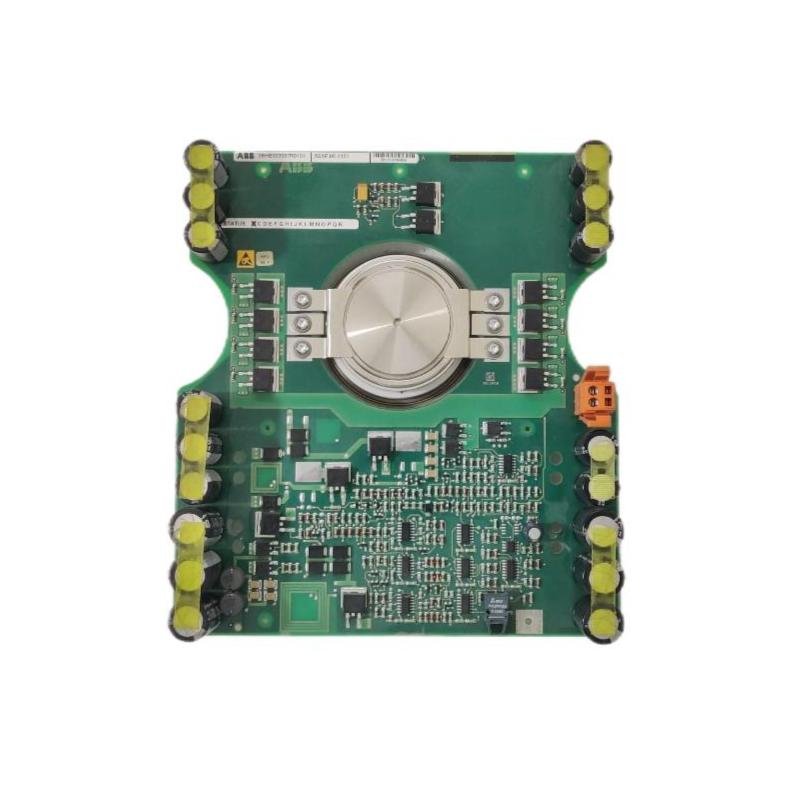

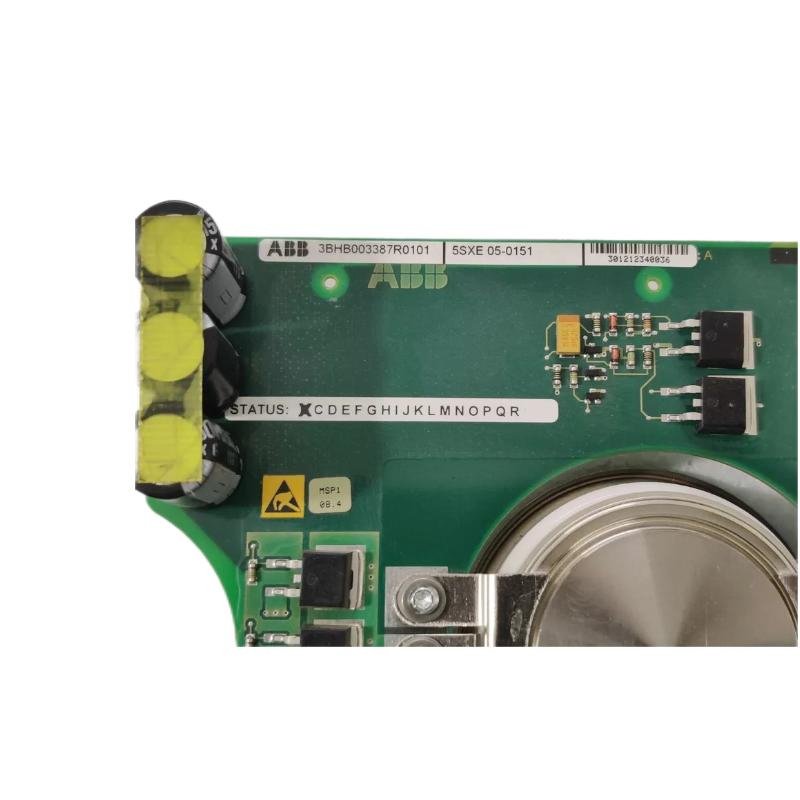

ABB 5SHX06F6004 3BHB003387R0101 IGCT Modules
Manufacturer: ABB
Product Number: 5SHX06F6004 (3BHB003387R0101)
Category: IGCT Module (Integrated Gate-Commutated Thyristor)
Voltage Rating: 6000V (typical)
Current Rating: 500A (typical)
Technology: Advanced IGCT for high-voltage direct current (HVDC) and medium-voltage drives
Application: HVDC transmission, MV Drives, FACTS
Product Description
The ABB 5SHX06F6004 3BHB003387R0101 IGCT (Integrated Gate-Commutated Thyristor) module is an advanced power electronic switch device widely used in high-voltage direct current (HVDC) transmission, medium-voltage drives (MV Drives), flexible AC transmission systems (FACTS), and other high-current, high-power industrial control systems. The IGCT technology combines the advantages of thyristors and GTOs, providing high current capacity, low conduction losses, fast switching characteristics, and high reliability, which significantly improve system efficiency and response time.
The module is built using ABB’s leading semiconductor technology and packaging design. Its optimized thermal structure ensures long-term stable operation, making it an ideal choice for high-end power electronics systems.
Key Features
-
High Voltage Endurance: Suitable for high-power and high-voltage power systems, ensuring reliable operation.
-
Low Conduction Loss: Optimized design reduces conduction losses, improving overall system energy efficiency.
-
Fast Switching Performance: The IGCT module offers fast turn-off time, providing quicker response, suitable for high-frequency control applications.
-
High Current Capacity: Capable of supporting currents up to several thousand amperes, ideal for high-power density power conversion.
-
Integrated Gate Drive: The module comes with an integrated gate drive circuit, simplifying the peripheral circuit design and enhancing system reliability.
-
Optimized Heat Dissipation: The high-efficiency thermal management design lowers temperature, ensuring long-term stable operation.
Technical Specifications
Dimensions and Weight
| Item | Value |
|---|---|
| Diameter | 190 mm x 140 mm x 38 mm |
| Weight | 1.2 kg |
General Information
| Item | Value |
|---|---|
| Model | 5SHX06F6004 3BHB003387R0101 |
| Manufacturer | ABB |
| Component Type | IGCT (Integrated Gate-Commutated Thyristor) |
| Applications | HVDC, MV Drives, FACTS, Motor Drives |
| Insulation Voltage | Up to 6500V |
Electrical Performance
| Item | Value |
|---|---|
| Rated Voltage | 4500V |
| Rated Current | 2500A |
| On-State Voltage Drop | ≤ 2.5V |
| Turn-Off Time | ≤ 20 μs |
| Gate Trigger Current | 20A |
| Turn-Off Loss | Low-loss design for enhanced efficiency |
| Overload Protection | Yes |
Industry Applications
The ABB 5SHX06F6004 3BHB003387R0101 IGCT module is widely used in the following industries:
-
High-Voltage Direct Current (HVDC) Transmission: Used in power systems for efficient commutation, enhancing power transmission efficiency.
-
Medium-Voltage Drives (MV Drives): Controls motor speed and torque, widely used in industrial automation and power drive systems.
-
Flexible AC Transmission Systems (FACTS): Used for grid regulation and stabilization, improving flexibility and reliability of power systems.
-
Railway Traction: Provides efficient power conversion in railway traction systems, ensuring stable operation of traction systems.
-
Renewable Energy Applications: Used for power conversion in wind and solar power generation, optimizing the efficiency of renewable energy systems.
With its superior electrical characteristics and long-term reliability, the ABB 5SHX06F6004 3BHB003387R0101 IGCT module is an essential component for modern high-power electrical systems.
