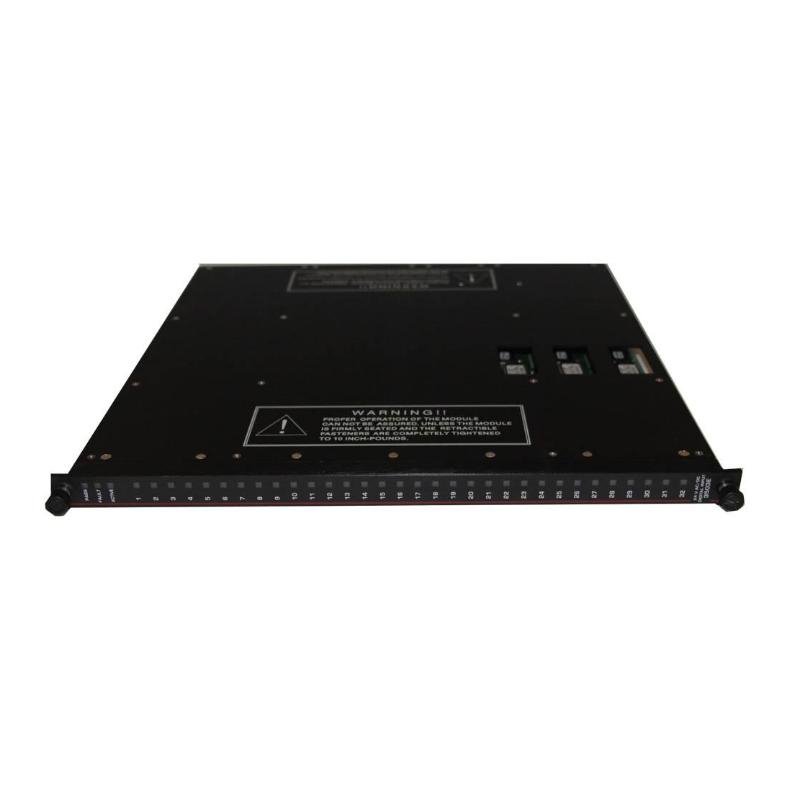

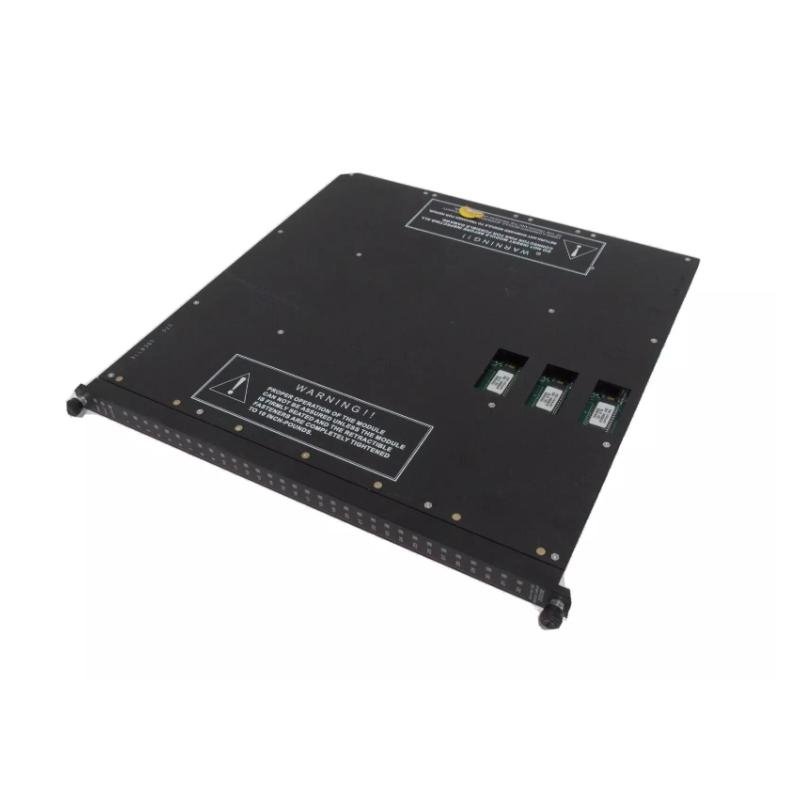

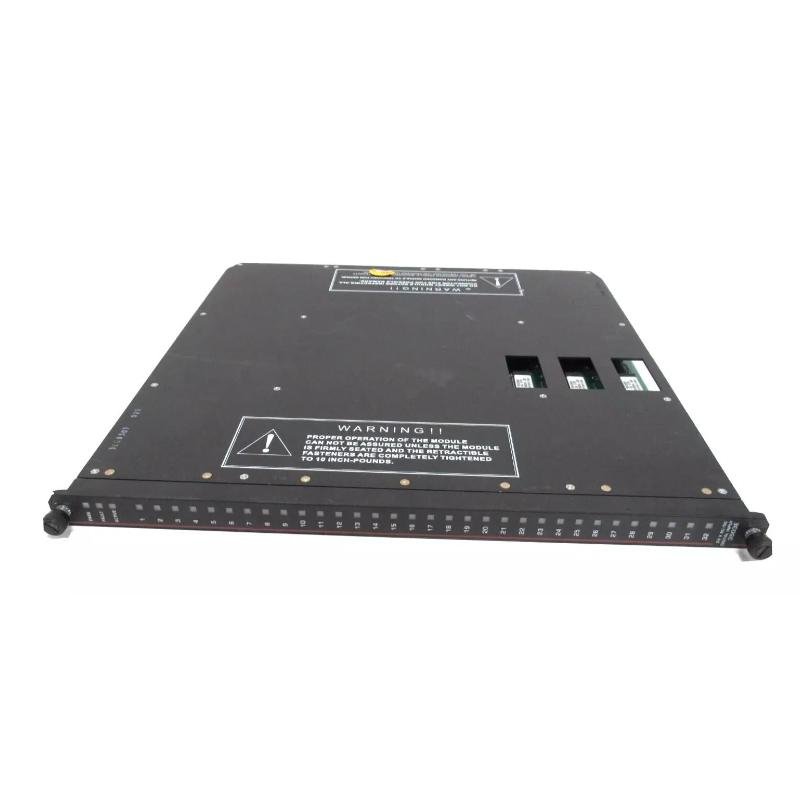

Triconex 3503E Digital Input Module

The Triconex 3503E is a highly reliable digital input module designed for use within the Tricon™ Safety System, a leading safety instrumented system (SIS) by Schneider Electric. This module is specifically engineered for safety-critical applications in industries such as oil and gas, power generation, chemical processing, and other high-risk sectors. It ensures continuous, high-integrity monitoring and is capable of handling 24 discrete digital inputs from a variety of field devices.

The 3503E module allows operators to monitor inputs from devices such as emergency shutdown systems, fire and gas detectors, and process control systems. These inputs are then processed by the Tricon safety controller to trigger appropriate safety actions when required. It is SIL 3 certified and is built with redundant features to ensure that the system continues to function even if there is a failure in one part of the system.

This module is crucial for enhancing the safety, reliability, and availability of industrial operations. It is designed to operate in harsh environmental conditions, withstand vibration, and resist electromagnetic interference, making it suitable for demanding industrial applications.

Key Features and Benefits

1. High Safety Integrity and SIL 3 Certification

   • The 3503E is SIL 3 certified, meeting the safety requirements set forth by IEC 61508 and IEC 61511, which are internationally recognized standards for functional safety. This ensures that the module can be used in systems where safety is paramount.

2. Redundant Design for Fault Tolerance

   • The 3503E features a redundant design, ensuring that if one part of the system fails, another part can take over without any loss of functionality or safety. This design feature significantly enhances the availability and reliability of the system.

3. Flexible Input Configuration

   • The 3503E offers 24 digital inputs (configurable), allowing for a flexible configuration to meet the specific needs of an application. The inputs can be mapped to a variety of field devices, providing flexibility in how the module is integrated into the overall safety system.

4. Robust and Durable Construction

   • The module is built with durability in mind, designed to withstand the harshest industrial environments. It features vibration resistance and is designed to operate within a wide temperature range. It can operate in extreme conditions, including extreme temperatures, and is designed to be immune to electromagnetic interference.

5. Diagnostic Features for Proactive Maintenance

   • The 3503E comes with diagnostic capabilities that allow operators to monitor the status of the module and detect faults before they cause system failures. This helps in preventive maintenance, reducing downtime and improving overall system reliability.

6. Seamless Integration with Tricon Safety Systems

   • The module integrates seamlessly with the Tricon™ Safety System, providing a comprehensive safety solution for industrial operations. It ensures reliable communication with other modules and field devices within the system, making it an integral part of a larger safety system.

Technical Specifications

Applications

The Triconex 3503E digital input module is used in various safety-critical industrial applications, where it is essential to monitor discrete signals and ensure the safe operation of processes. Some of the key applications include:

• Emergency Shutdown Systems (ESD)

  • The module is used to monitor signals from emergency shutdown systems, allowing the safety controller to trigger an emergency shutdown if unsafe conditions are detected.

• Fire and Gas Detection Systems

  • It integrates with fire and gas detection systems to provide inputs that enable the safety system to respond to fire or gas leaks, preventing catastrophic events.

• Process Control Systems

  • The module is used in process control applications to continuously monitor digital signals, ensuring the process is operating within safe parameters.

• Safety Instrumented Systems (SIS)

  • The 3503E is a crucial part of SIS, helping maintain the integrity and safety of critical systems that protect both people and equipment.

• Industrial Automation

  • The module can be used in general industrial automation for monitoring discrete digital signals from various field devices, enhancing system reliability and safety.
