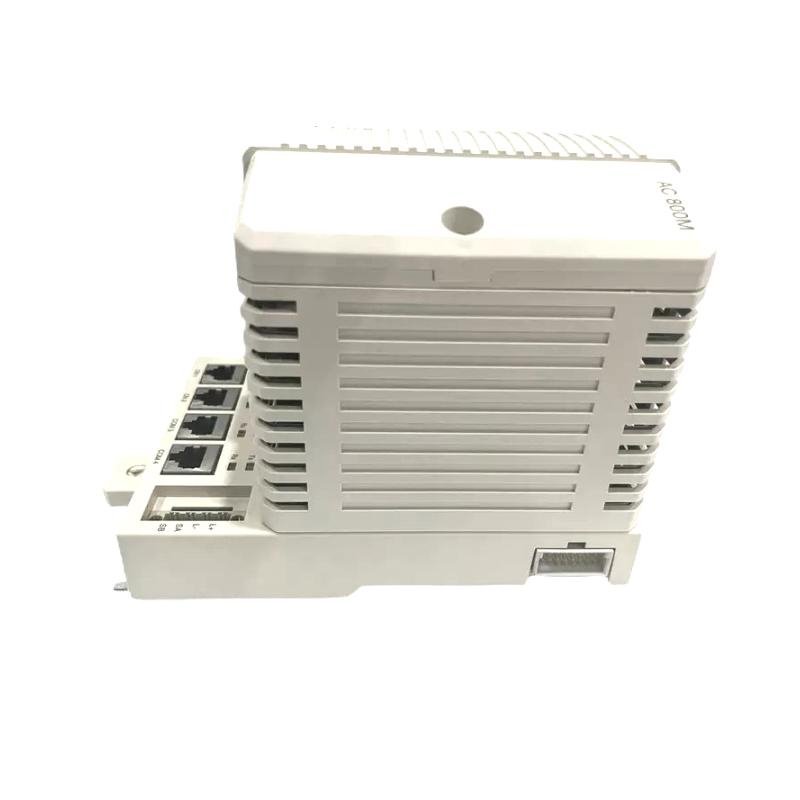

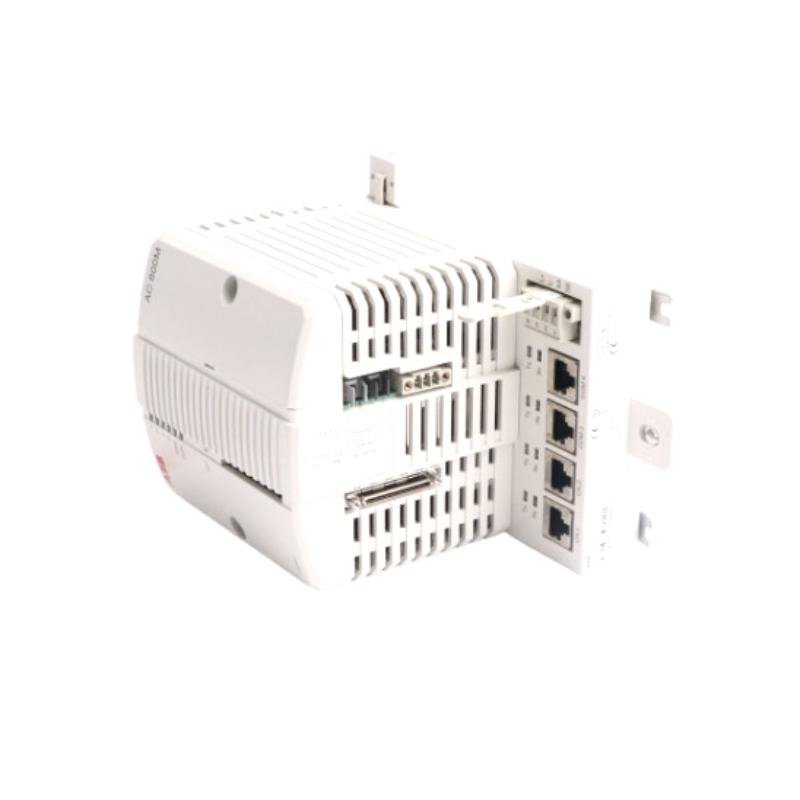

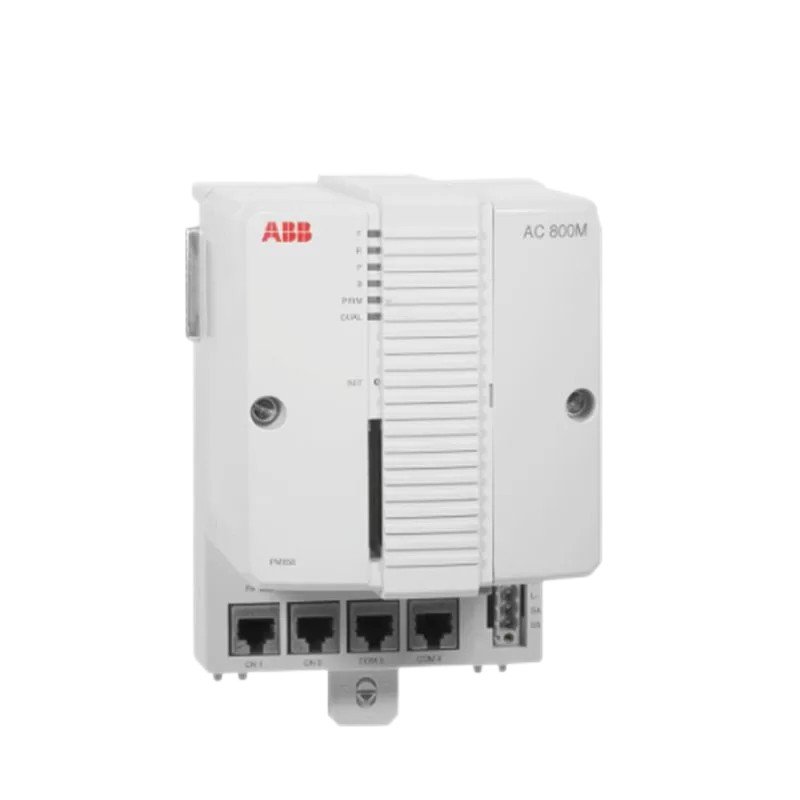

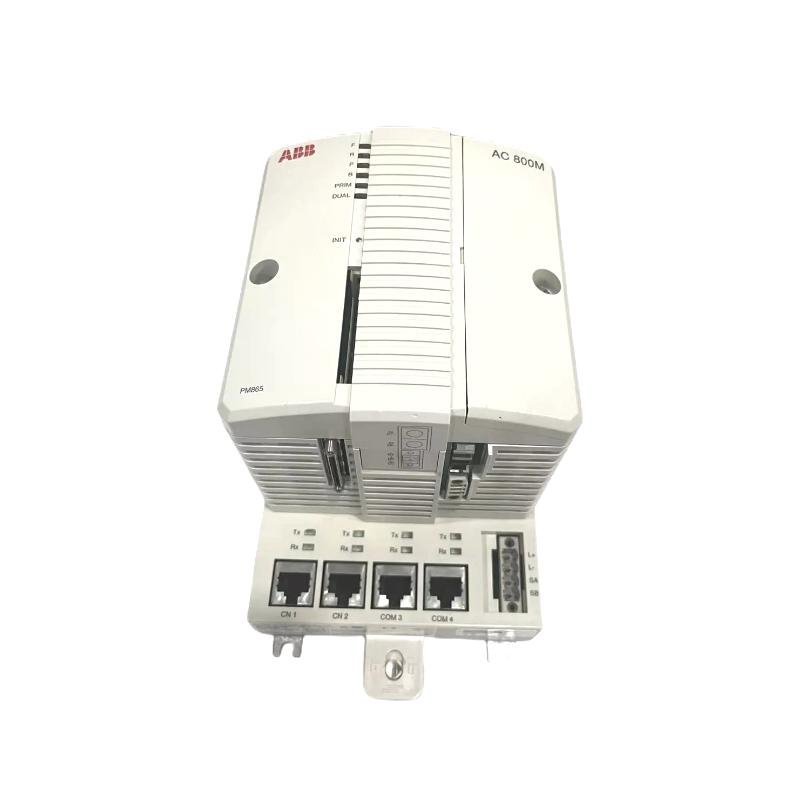

ABB PM865K02 3BSE031150R1 Processor Unit
Manufacturer: ABB
Product Number: PM865K02 (3BSE031150R1)
Category: Processor Unit (AC 800M series)
Processor: MPC862P
Redundancy: Supports redundant configurations
Safety Integrity Level: SIL 3 capable
Memory: 32 MB RAM, 64 MB Flash
Product Description
The ABB PM865K02 3BSE031150R1 is a high-performance industrial controller from the AC 800M series, designed for high-reliability and high-integrity automation applications. Featuring an MPC862P processor and redundancy support, it meets SIL 2/SIL 3 certifications (IEC 61508) for safety-critical systems. Its modular architecture allows integration with SM81x modules for enhanced integrity, while compatibility with 800xA Control Builder ensures flexible engineering.
With dual RJ45 Ethernet ports (CN1/CN2) and RS-232C serial interfaces (COM3/COM4), it enables robust communication and tool connectivity. The compact, IP20-rated design suits harsh environments like energy, chemicals, and manufacturing.
Key Features
- High-Integrity Certification: SIL 2 (PM865/SM810/SM811) and SIL 3 (PM865/SM811 or PM867/SM812) compliant.
- Redundancy: CPU, CEX-Bus, and communication redundancy with ≤10 ms switchover.
- Processing Power: 96 MHz clock, 0.17 ms for 1000 Boolean operations, 32 task capacity.
- Industrial Connectivity: Dual Ethernet (10 Mbit/s), MMS/IAC protocols, $800 I/O support.
- Robust Design: Operates at -40°C to +70°C, G3 corrosion resistance, IP20 protection.
Technical Specifications
Table 1: Physical Parameters
| Parameter | Specification |
|---|---|
| Dimensions (W×H×D) | 135 × 186 × 119 mm |
| Weight | 2.3 kg (KO2 model) |
| Protection Class | IP20 (EN 60529) |
Table 2: General Information
| Parameter | Specification |
|---|---|
| Model Number | PM865K02 3BSE031150R1 |
| Processor Type | MPC862P |
| Redundancy Support | Yes |
| Clock Frequency | 96 MHz |
| Memory | 32 MB RAM (22.184 MB usable) |
| Flash Storage | 4 MB firmware (no user storage) |
Table 3: Performance
| Parameter | Specification |
|---|---|
| Boolean Operations (1000x) | 0.17 ms |
| Max Tasks | 32 |
| Minimum Cycle Time | 1 ms |
| OPC Event Queue | 3000 events |
Table 4: Communication
| Parameter | Specification |
|---|---|
| Ethernet Ports | 2×RJ45, 10 Mbit/s (IEEE 802.3) |
| Serial Interfaces | COM3: RS-232C (19.2 kbps, non-isolated) |
| COM4: RS-232C (9.6 kbps, opto-isolated) | |
| CEX Bus Modules | 12 modules max |
Table 5: Power & Environment
| Parameter | Specification |
|---|---|
| Power Supply | 24V DC (19.2-30V DC) |
| Typical Consumption | 6.9 W (11.4 W max) |
| Operating Temperature | +5°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Humidity | 5%–95% (non-condensing) |
Industry Applications
- Oil & Gas: SIL 3-certified safety systems for offshore platforms.
- Chemicals: Redundant control in hazardous areas.
- Power: Grid monitoring and protection.
- Marine: DNV-GL/ABS-certified for engine room automation.
- Manufacturing: High-speed production line control.
