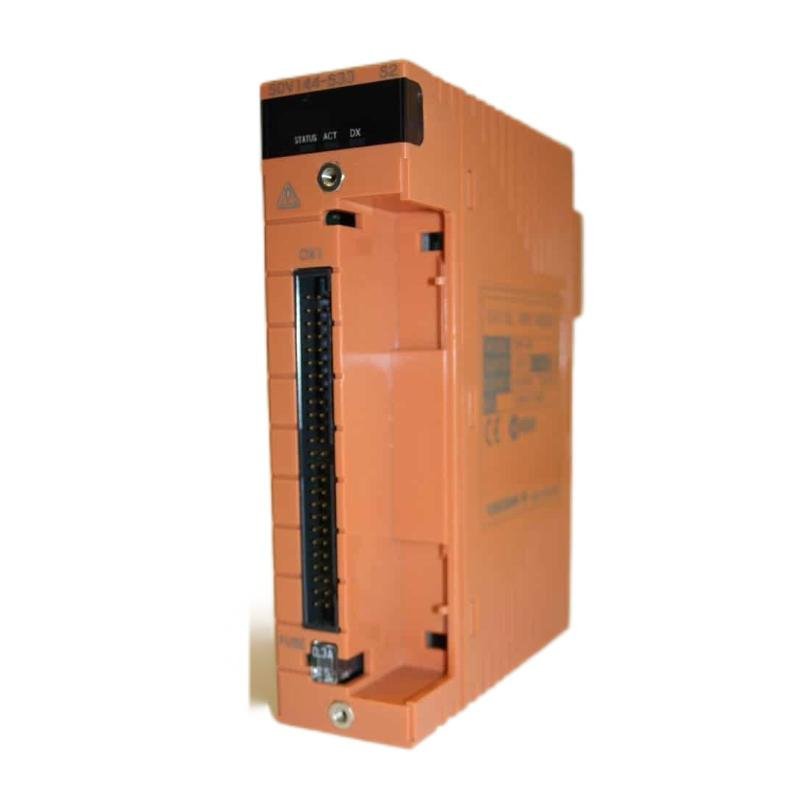

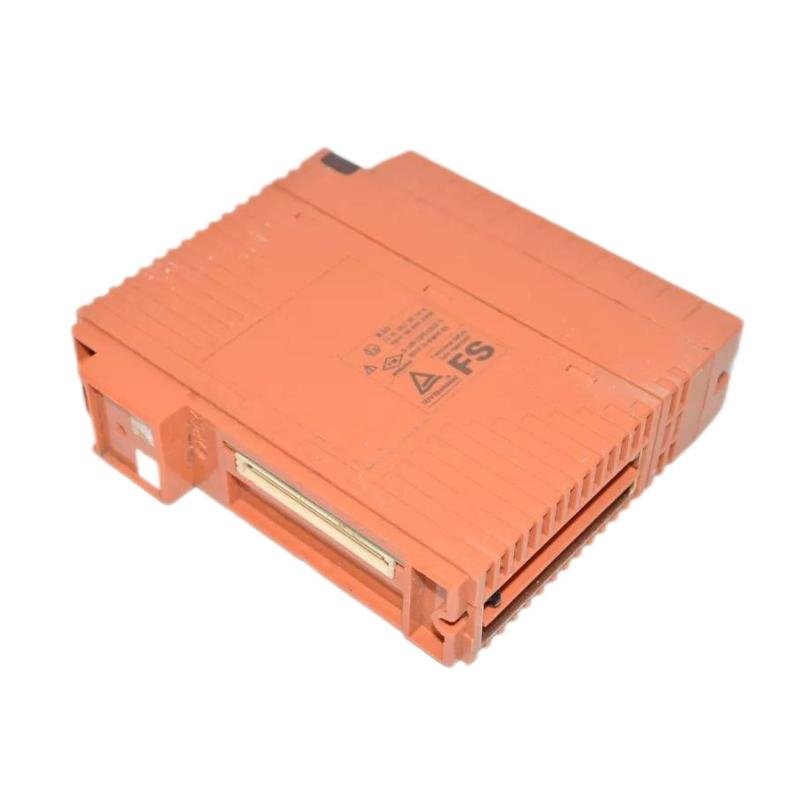

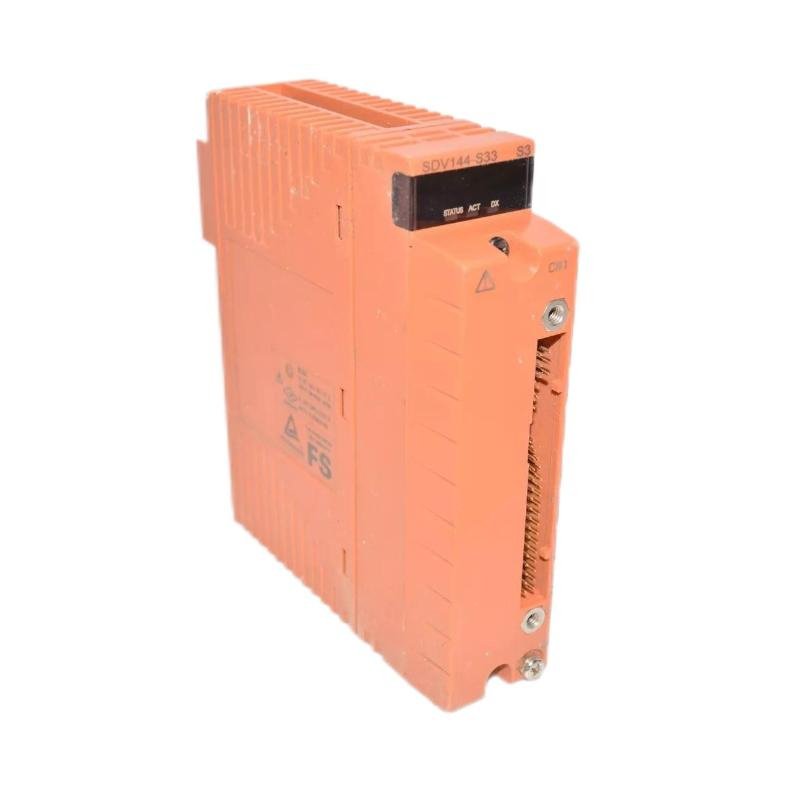

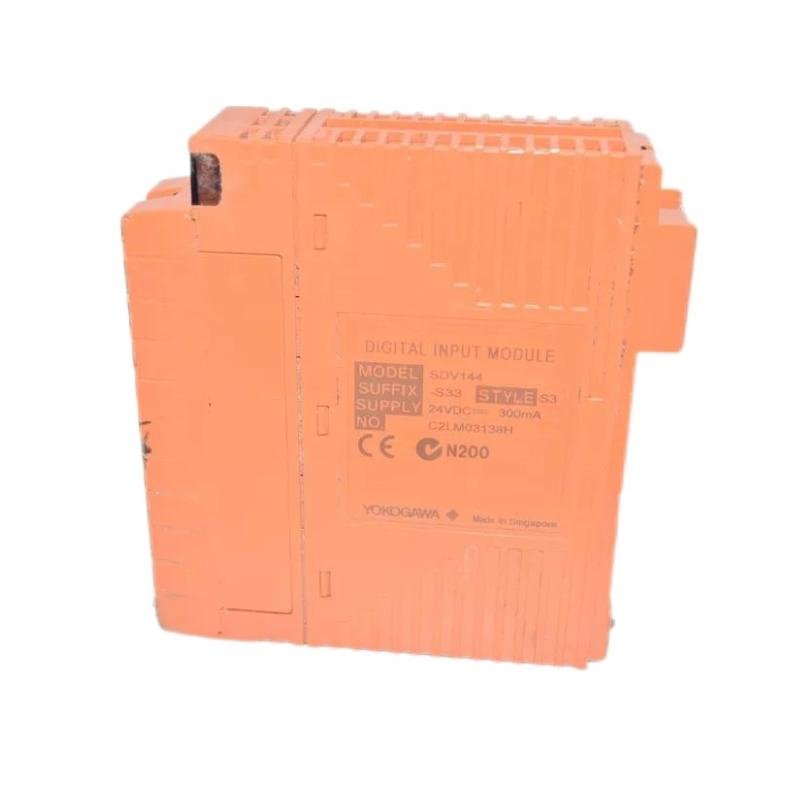

Yokogawa SDV144-S33 Digital Input Modules
Manufacturer: Yokogawa
Product Number: SDV144-S33
Category: Digital Input Module
Function: Interfaces with digital field devices such as switches, relays, and sensors
System Compatibility: Yokogawa control systems
Application: Providing accurate digital signals for process control applications
Product Description
The Yokogawa SDV144-S33 Digital Input Module is designed for use in Yokogawa’s control systems to interface with digital field devices, such as switches, relays, and sensors, to provide accurate digital signals for process control applications. This module ensures reliable and precise monitoring and control of input signals in a variety of industrial environments. It is part of the Yokogawa digital input module range, known for its high performance, versatility, and seamless integration into automation systems.
With its rugged design and wide input voltage range, the SDV144-S33 module is ideal for industrial environments that require robust and dependable signal processing for real-time applications in manufacturing, power generation, and process control.
Key Features
-
High Reliability: Ensures accurate and dependable monitoring of digital signals from field devices.
-
Wide Input Voltage Range: Supports a wide range of input voltages to accommodate various industrial applications.
-
Digital Signal Processing: Provides reliable digital signal input for precise process control and monitoring.
-
Status Monitoring: Equipped with LED indicators for easy monitoring of the module’s operational status and fault conditions.
-
Compact Design: Designed for easy installation in control panels or DIN rail systems, making it space-efficient.
-
Versatile Mounting: Can be installed in a DIN rail or directly mounted to a panel, offering flexibility in various system setups.
-
Seamless Integration: Fully compatible with Yokogawa’s control systems and other industrial automation devices for easy integration.
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 130 x 32.8 x 107.5mm |
| Weight | 0.77kg |
General Information
| Item | Specification |
|---|---|
| Model | SDV144-S33 |
| Manufacturer | Yokogawa |
| Installation | DIN Rail / Panel Mount |
| Power Supply | 24 V DC |
| Operating Temp | -20°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
Performance Characteristics
| Item | Specification |
|---|---|
| Number of Inputs | 16 Digital Inputs |
| Input Type | Dry contact, PNP/NPN |
| Input Voltage | 24 V DC ±10% |
| Input Current | 6-12 mA per input |
| Response Time | ≤ 10 ms |
Electrical Characteristics
| Item | Specification |
|---|---|
| Power Supply | 24 V DC ±10% |
| Power Consumption | Approx. 1.2 W |
| Operating Current | ≤ 0.1 A |
| Status Indicators | LED indicators for power, fault, and input conditions |
Industry Applications
-
Process Control: Facilitates the monitoring of digital field devices in industries such as chemical, oil and gas, and pharmaceuticals, ensuring real-time control and feedback.
-
Manufacturing: Used in automated production systems for detecting digital signals from machinery and sensors to maintain smooth operations.
-
Energy & Power Generation: Supports digital signal acquisition in power generation plants, ensuring reliable monitoring of control inputs in critical systems.
-
Water Treatment: Monitors digital inputs from sensors and switches in water treatment systems, providing precise control and feedback.
-
Building Automation: Enables integration with building management systems (BMS), supporting the monitoring of digital signals from HVAC systems, lighting, and security devices.
The Yokogawa SDV144-S33 Digital Input Module is a highly reliable and versatile solution for acquiring digital signals from field devices in industrial automation systems. Its compact design, wide input range, and ease of integration into Yokogawa’s control systems make it an essential component for enhancing process control and monitoring in various industrial applications.
