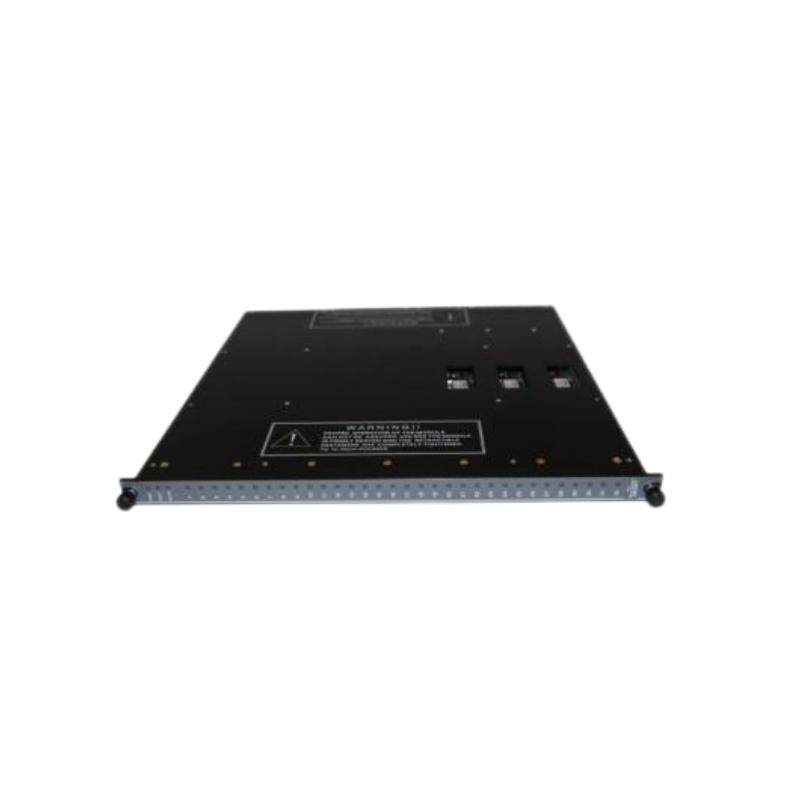

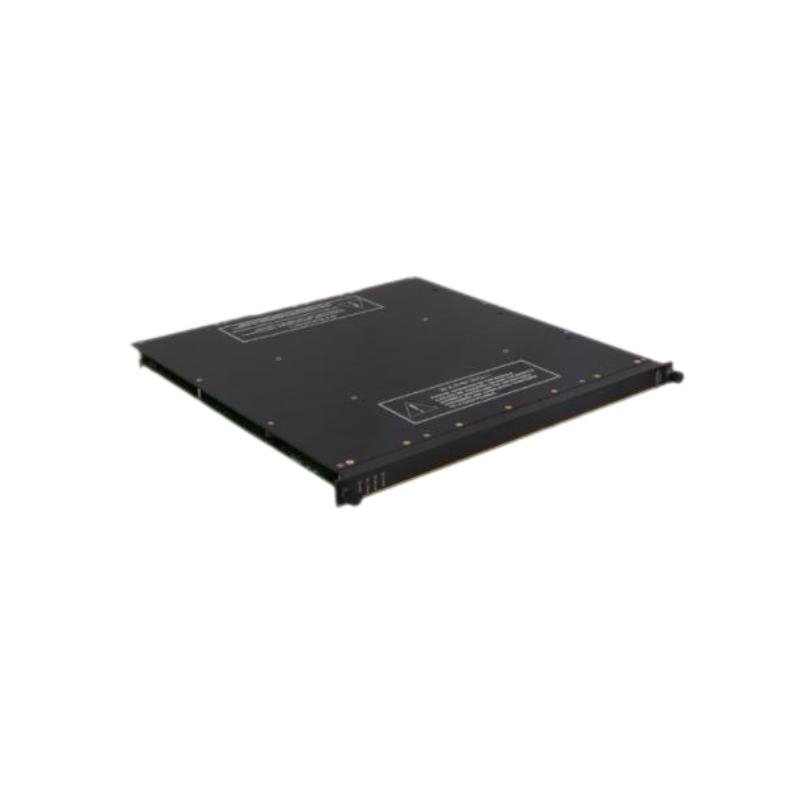

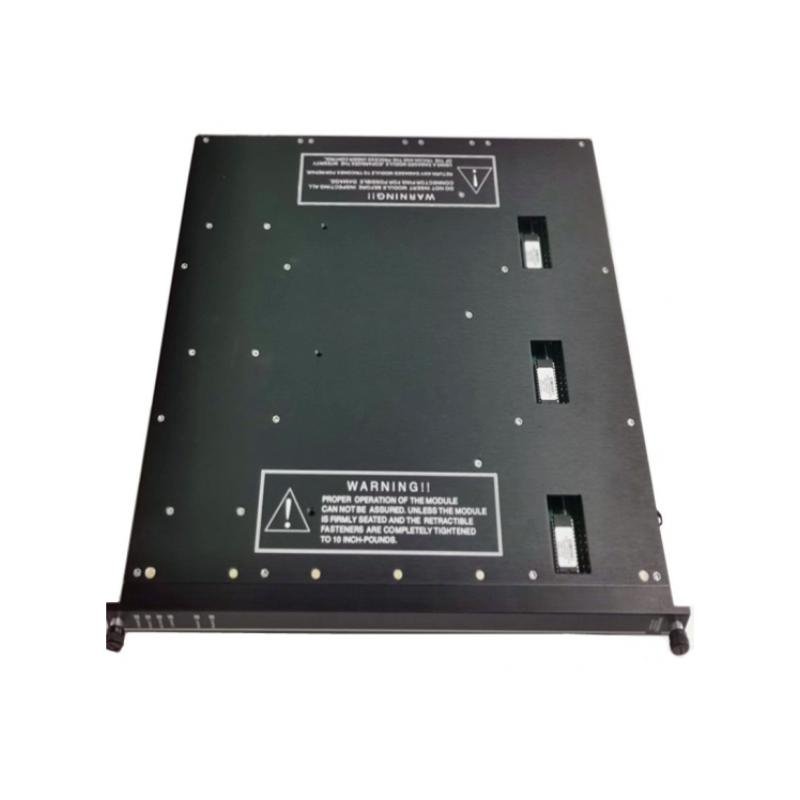

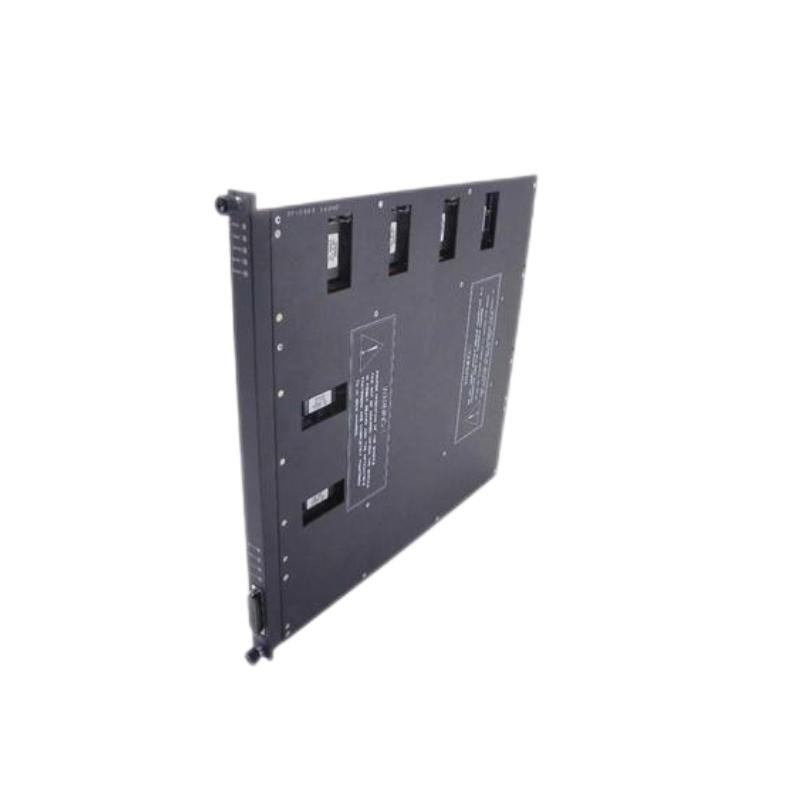

Triconex 3504A Digital Input Module

The Triconex 3504A is a digital input module designed as part of the Tricon™ Safety System. This module is used to interface with a wide variety of field devices, collecting discrete digital signals and providing them to the Tricon controller for decision-making and control in safety-critical applications. The 3504A module is particularly suitable for industries like chemical processing, oil and gas, power generation, and petrochemicals, where continuous monitoring and high-reliability systems are essential.

The 3504A module provides up to 32 digital input channels, which can be configured to accommodate a variety of signal types from field devices. These devices can include emergency shutdown systems (ESD), fire and gas detection systems, and other critical monitoring applications. The module is SIL 3 certified, ensuring that it meets the highest safety standards for safety instrumented systems (SIS). With the ability to handle multiple field devices and inputs in parallel, the 3504A is designed for both redundancy and high fault tolerance, which makes it a reliable choice for demanding environments.

Key Features and Benefits

1. SIL 3 Certification

   • The 3504A module is certified to SIL 3 according to IEC 61508 and IEC 61511, making it suitable for use in highly critical applications where system safety is paramount.

2. High Reliability and Fault Tolerance

   • The 3504A has built-in redundant features to ensure operational continuity even in the event of hardware failures. These features include dual processors and redundant power supplies, allowing for fault-tolerant operation.

3. 32 Digital Inputs

   • The module supports up to 32 digital input channels, which are flexible and can handle dry contact, open collector, or voltage signals. This makes the module compatible with a wide range of field devices and sensors.

4. Flexible Signal Handling

   • The 3504A module can handle a variety of input signals, such as 24V DC, dry contacts, and open collector inputs, allowing for easy integration with diverse field equipment.

5. Diagnostic and Monitoring Features

   • Equipped with LED indicators, the 3504A offers comprehensive diagnostics and status monitoring, enabling operators to check the health of each input and the overall module.

6. High Environmental Resilience

   • The 3504A is designed to operate in harsh industrial environments, with electromagnetic interference (EMI) resistance, high vibration tolerance, and wide temperature ranges, making it suitable for both extreme and challenging conditions.

7. Seamless Integration with Tricon Safety Systems

   • As part of the Tricon family, the 3504A integrates smoothly with other modules and systems, providing a unified safety system that can be easily expanded and adapted to meet the needs of various industrial processes.

Technical Specifications

Applications

The Triconex 3504A digital input module is highly versatile and can be used in various industrial sectors where safety and reliability are critical. Some of the main applications include:

1. Emergency Shutdown Systems (ESD)

   • The 3504A module plays a key role in emergency shutdown systems, ensuring that the system can receive input signals that trigger shutdown processes in response to hazardous situations.

2. Fire and Gas Detection Systems

   • This module integrates with fire and gas detectors, providing real-time monitoring and enabling the system to take action in the event of a fire or gas leak.

3. Process Control Systems

   • The 3504A module can be used in process control systems, where it monitors inputs from various field devices to ensure safe and efficient operation.

4. Safety Instrumented Systems (SIS)

   • As a critical component of Safety Instrumented Systems, the 3504A module helps to maintain the integrity and safety of industrial systems in high-risk environments.

5. Industrial Automation

   • The module is also useful in industrial automation applications, where it provides real-time input signal monitoring to ensure consistent and reliable system operations.
