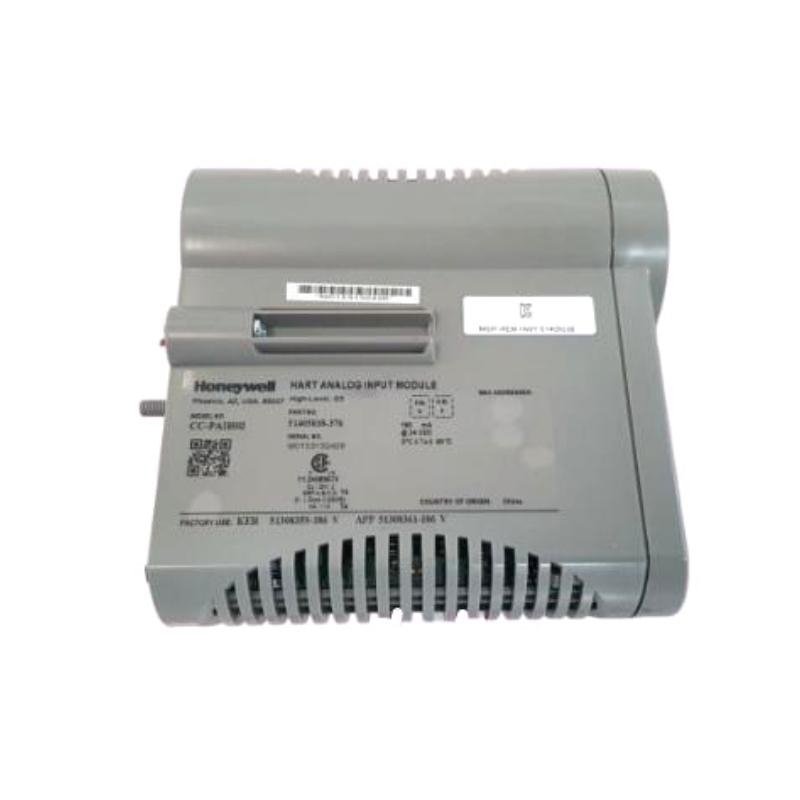

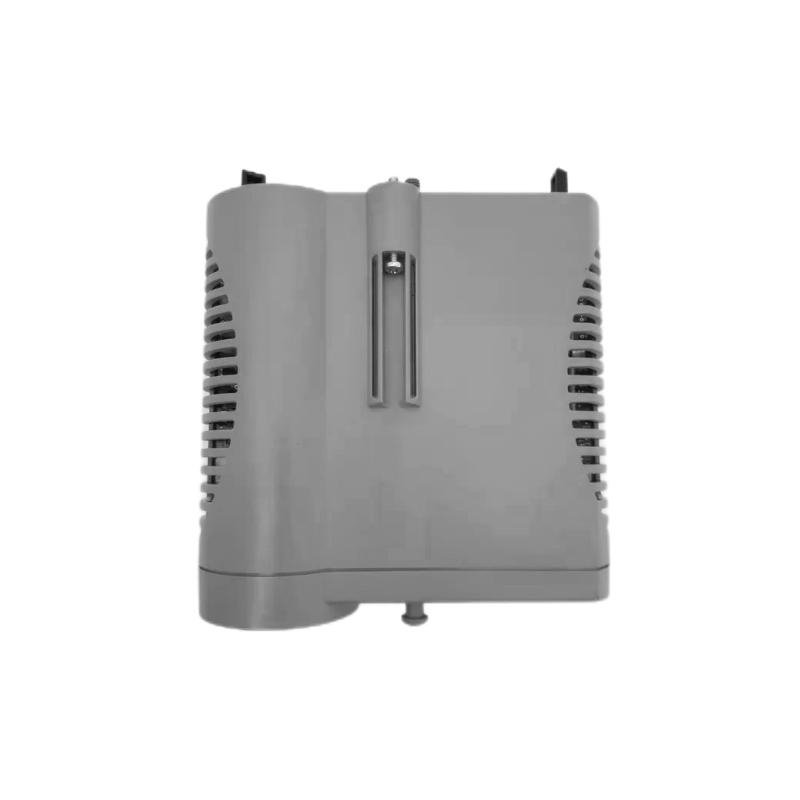

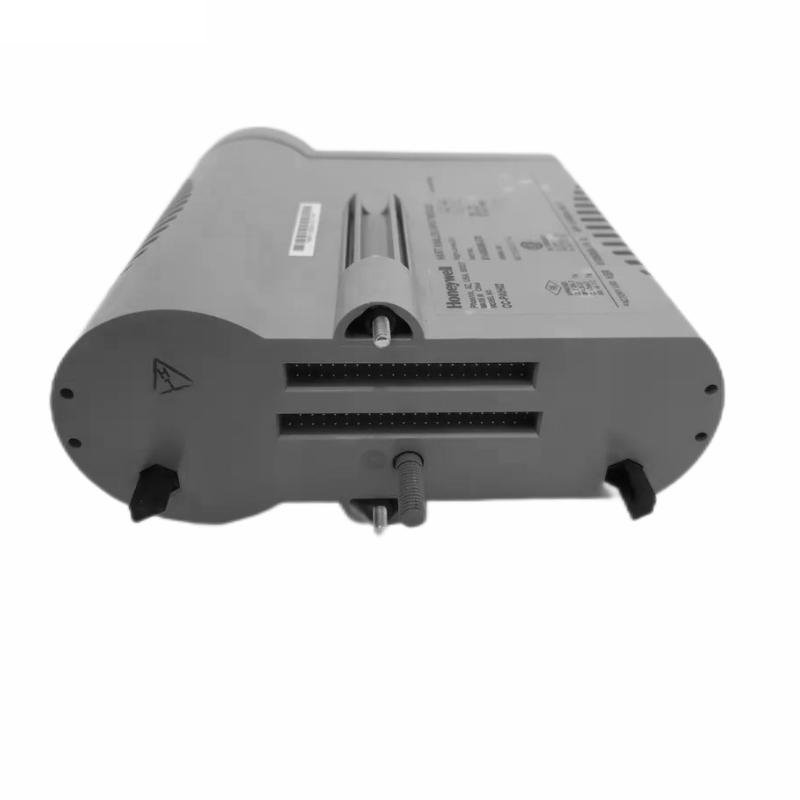

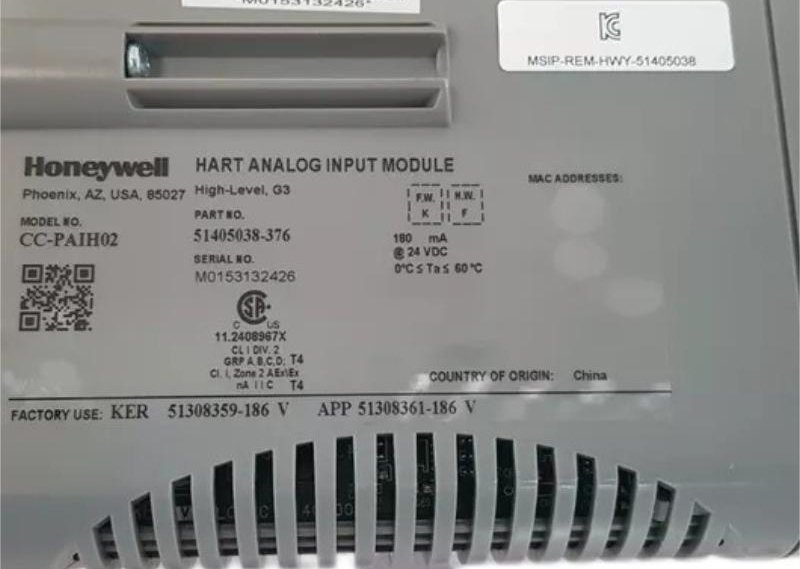

Honeywell CC-PAIH02 51405038-376 HART Differential Analog Input Module
Manufacturer: Honeywell
Product Number: CC-PAIH02 (51405038-376)
Category: HART Differential Analog Input Module
Number of Channels: 16
Input Signal Types: 4-20mA, 1-5V, 0-5V
Protocol: HART-compatible
System Compatibility: Honeywell control systems
Product Description
The Honeywell CC-PAIH02 51405038-376 is a HART-compatible differential analog input module. It supports up to 16 input channels and accommodates a variety of input signal types such as 4-20mA, 1-5V, and 0-5V. The module is designed for use in industrial automation systems and, when paired with compatible IOTAs (Input/Output Terminal Units), provides accurate analog input signals for process control systems.
Key Features
- HART Protocol Support: Enables two-way communication with devices using the HART protocol, supporting remote configuration and diagnostics.
- High Channel Capacity: Supports up to 16 analog input channels, providing flexible signal acquisition.
- Multiple Input Types: Compatible with 4-20mA, 1-5V, and 0-5V signal types, meeting various industrial application needs.
- Redundancy Support: Supports redundancy configurations for enhanced reliability and stability.
- Wide Application Range: Suitable for process control, manufacturing, chemical industries, and more.
Technical Specifications
Dimensions and Weight
| Parameter | Specification |
| Dimensions | 159 x 50 x 160 mm |
| Weight | 0.8 kg |
General Information
| Parameter | Specification |
| Module Type | Differential Analog Input |
| Channel Count | 16 |
| Input Types | 4-20mA, 1-5V, 0-5V |
| HART Communication | Supported |
| Redundancy Support | Supported |
| Power Requirements | 24V DC |
| Mounting Type | DIN Rail |
Functionality and Performance
| Parameter | Specification |
| Input Signal Range | 4-20mA, 1-5V, 0-5V |
| Max Input Impedance | 250 Ω |
| Voltage Accuracy | ±0.1% |
| Transmission Speed | 10Hz maximum |
| Max Power Consumption | 2W |
| Compatible IOTAs | CC-TAID01, CC-TAID11 |
Industry Applications
The Honeywell CC-PAIH02 module is widely used in:
- Oil and Gas: For monitoring and controlling sensor signals in oil and gas production.
- Chemical Processing: For data acquisition and control in chemical reaction processes.
- Manufacturing: In industrial production to monitor equipment performance and ensure smooth operations.
- Energy Management: For monitoring the status of electrical equipment and systems.
