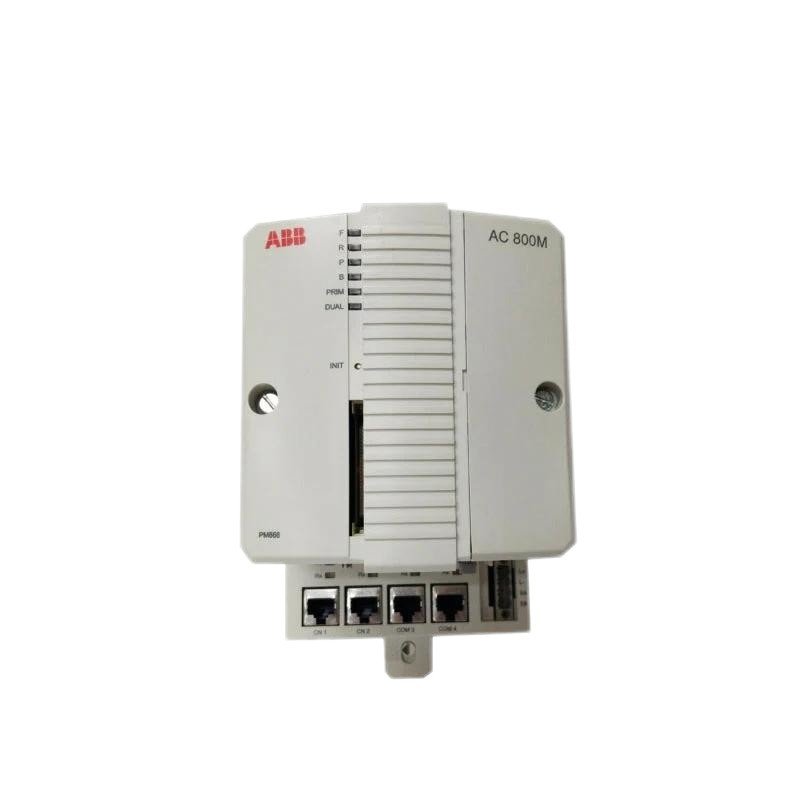

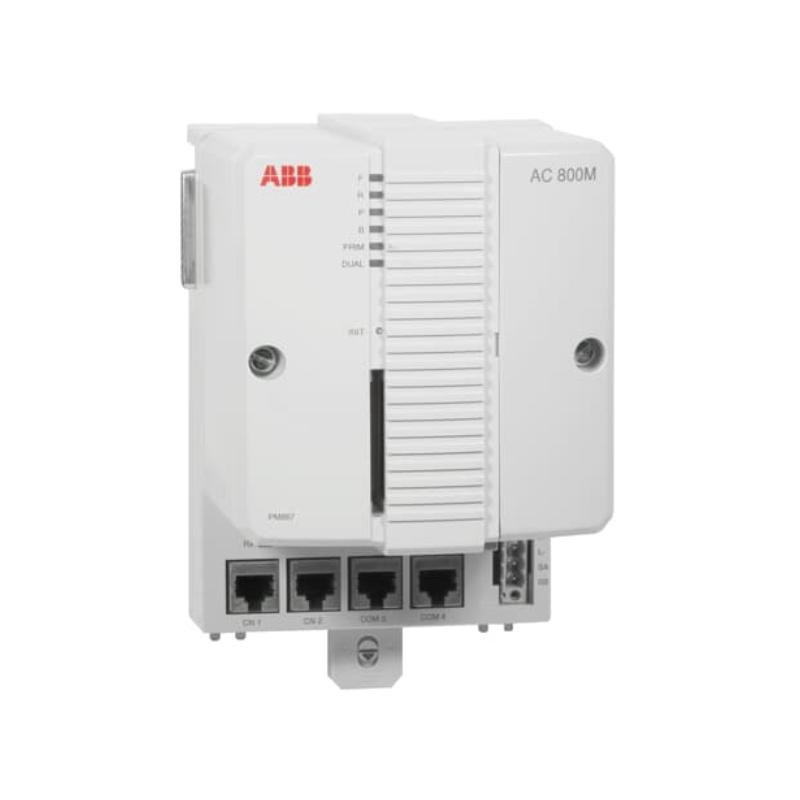

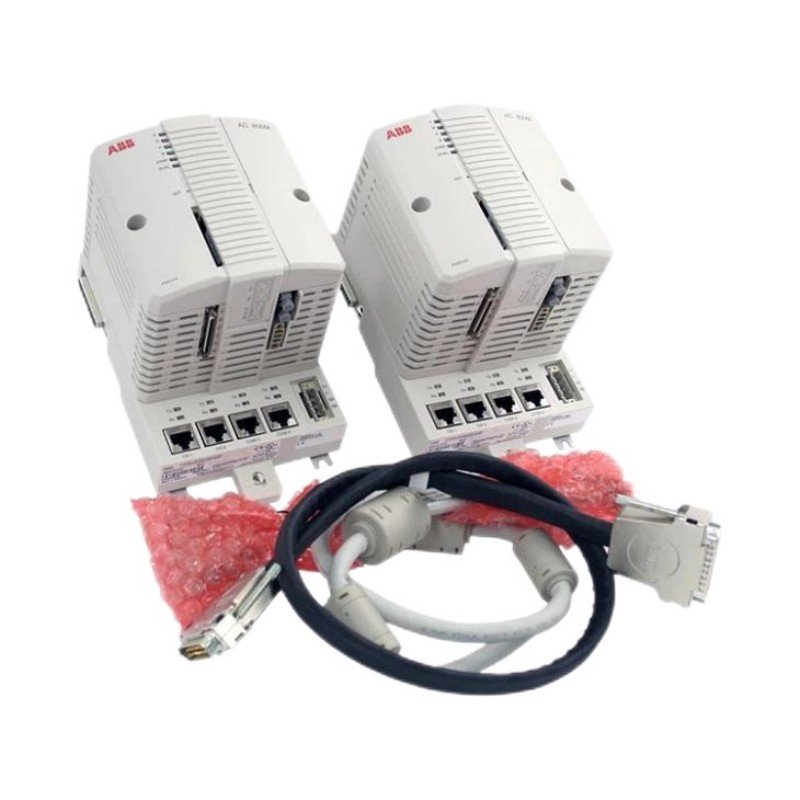

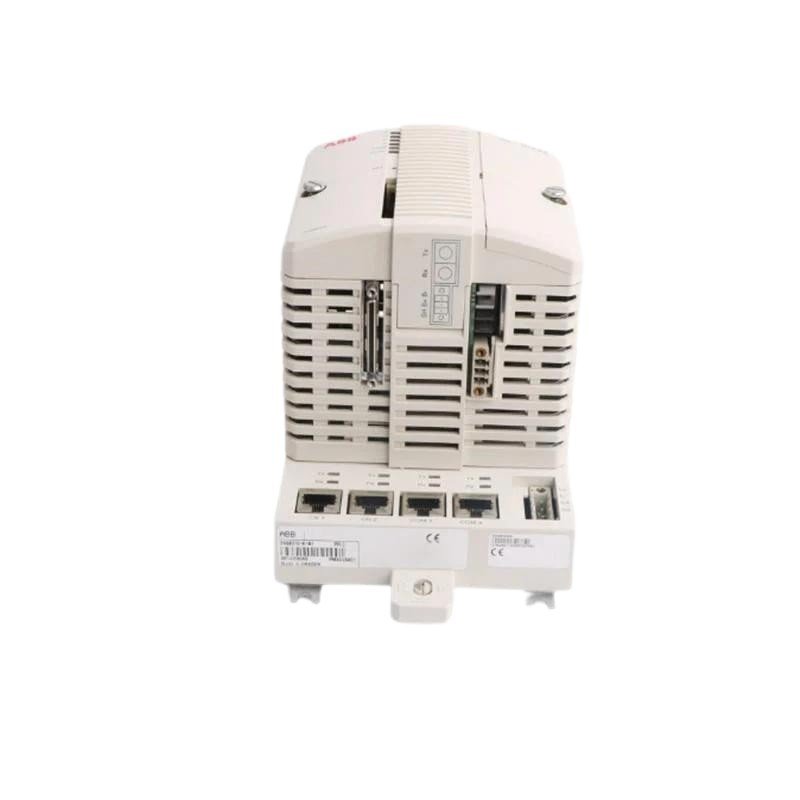

ABB PM867K01 3BSE076355R1 Processor Unit
Manufacturer: ABB
Product Number: PM867K01 (3BSE076355R1)
Category: Processor Unit (High Integrity Processor)
System Compatibility: ABB AC 800M control systems
Features: Powerful processing capabilities, memory configurations, and redundant communication for applications requiring high reliability and integrity
Safety Integrity Level: Suitable for SIL 3 applications
Product Description
The ABB PM867K01 3BSE076355R1 Processor Unit is a high-performance industrial control processor designed for applications requiring high reliability and integrity. This processor combines powerful processing capabilities, memory configurations, and multiple communication interfaces, making it suitable for ABB’s AC 800M control systems. The PM867K01 processor utilizes the MPC866 microprocessor and supports S800 I/O High Integrity functionality, providing an IEC 61508 and TÜV-certified SIL 2 and SIL 3 safety control environment. Its redundant design and comprehensive communication features make it ideal for applications requiring high availability.
Key Features
- High Integrity Support: The processor supports SIL 3 certification when combined with the SM812 module and SIL-certified software, making it suitable for applications with high safety and integrity requirements.
- Redundancy Support: Redundant CPUs, CEX buses, and communication interfaces ensure high availability and reliability.
- Built-in Redundant Ethernet Ports: Redundant Ethernet ports ensure continuous network connectivity for critical control systems.
- Powerful Processing and Memory Configuration: Supports up to 32 applications and 64 programs, with each application containing up to 128 diagrams.
- Flexible I/O Expansion: Allows the expansion of up to 96 I/O modules via the Modulebus, supporting different types of I/O modules and scan rates.
Technical Specifications
Dimensions and Weight
| Parameter | Value |
|---|---|
| Dimensions | 135 × 186 × 119 mm |
| Weight | 1.2 kg |
General Information
| Parameter | Value |
|---|---|
| Processor Type | MPC866 |
| Clock Frequency | 133 MHz |
| Memory | 64 MB |
| Available Memory | 46.559 MB |
| Flash Memory | None |
| Power Supply | 24 V DC (19.2-30 V DC) |
| Power Consumption (24 V) | Typical: 210 mA / Max: 360 mA |
| Power Dissipation | 5.1 W (Max: 8.6 W) |
| Battery Type | Lithium, 3.6 V |
| Clock Synchronization | 1 ms via CNCP protocol |
| Backup Battery | Built-in |
Network Interfaces
| Parameter | Value |
|---|---|
| Ethernet Interface | 2 RJ-45 Ethernet Ports |
| Network Protocol | MMS (Manufacturing Message Service) |
| Control Network Protocol | IAC (Inter Application Communication) |
| Recommended Network Backbone | 100 Mbit/s Switched Ethernet |
| RS-232C Interface (COM3) | 75-19200 Baud, RTS-CTS Support |
| RS-232C Interface (COM4) | 9600 Baud, Opto Isolated, No RTS-CTS Support |
High Integrity and Redundancy
| Parameter | Value |
|---|---|
| CPU Redundancy | Yes |
| Redundancy Switch Time | Max 10 ms |
| High Integrity Function | Supports S800 I/O High Integrity |
| High Integrity Certification | SIL 3, IEC 61508 Compliant |
| High Integrity Control Environment | TÜV Certified SIL 2 and SIL 3 |
| Redundant Power Status Input | Yes |
Performance
| Parameter | Value |
|---|---|
| Performance (per 1000 Boolean Ops) | 0.09 ms |
| Cycle Time (Per Application) | Down to 1 ms |
| Applications per Controller | 32 |
| Programs per Application | 64 |
| Tasks per Controller | 32 |
| Different Cycle Times per Controller | 32 |
| Event Queue per OPC Client | Up to 3000 Events |
| OPC Server Transmission Speed | 36-86 Events/sec, 113-143 Data Msg/sec |
Other
| Parameter | Value |
|---|---|
| CEX Bus Modules | 12 |
| Power Current (CEX Bus) | Max 2.4 A |
| I/O Clusters (Electrical) | 1 Electrical, 7 Optical |
| Modulebus Scan Rate | 0-100 ms (Dependent on I/O Modules) |
| I/O Capacity (Non-Redundant CPU) | 96 I/O Modules |
| I/O Capacity (Redundant CPU) | 84 I/O Modules |
Industry Applications
The ABB PM867K01 3BSE076355R1 Processor Unit is widely used in industrial automation across various sectors, particularly in applications requiring high reliability and safety, such as chemical, power, and oil & gas industries. Its redundancy design and powerful processing capabilities make it the ideal choice for critical process control systems. Whether in safety-critical applications or general control applications requiring high availability and network redundancy, the PM867K01 excels in providing superior performance and reliability.
This processor unit is particularly suited for safety systems that require IEC 61508 certification, capable of handling both safety and business-critical process control without compromising safety integrity. This makes it highly applicable in industrial automation environments, especially where multiple systems and control networks need to be integrated.
