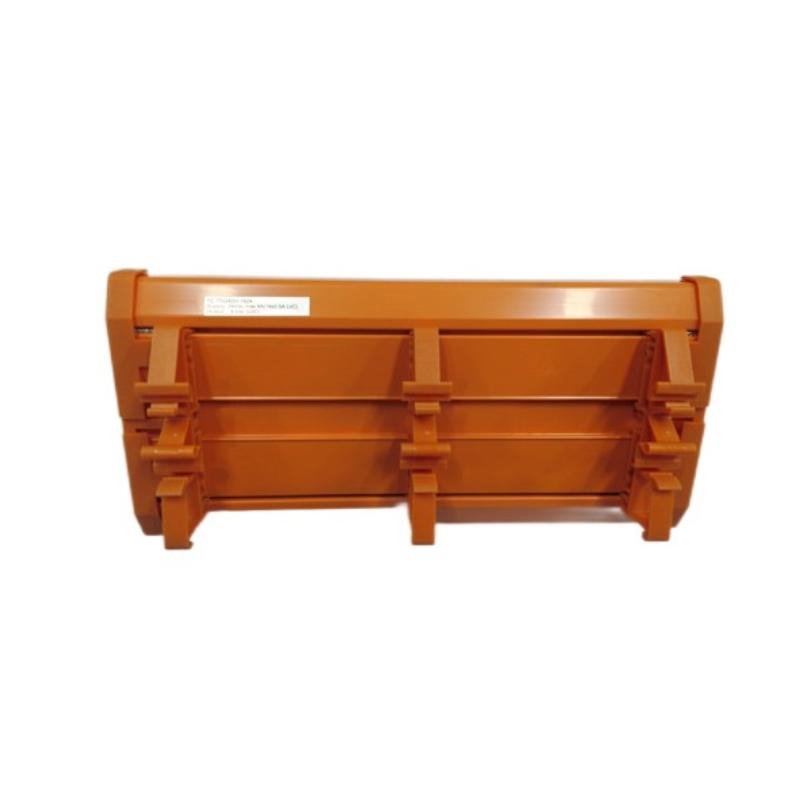

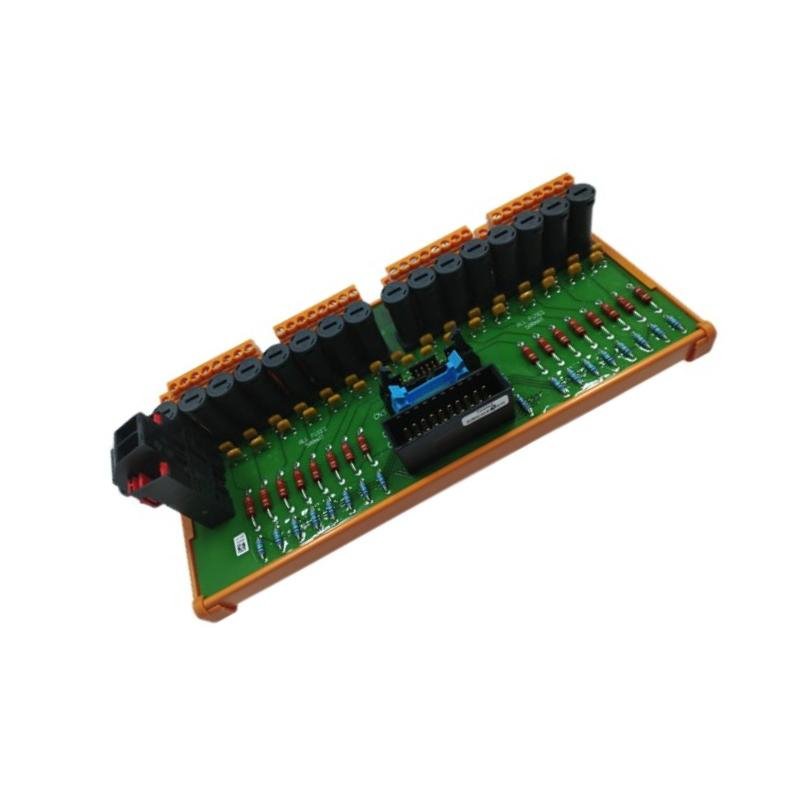

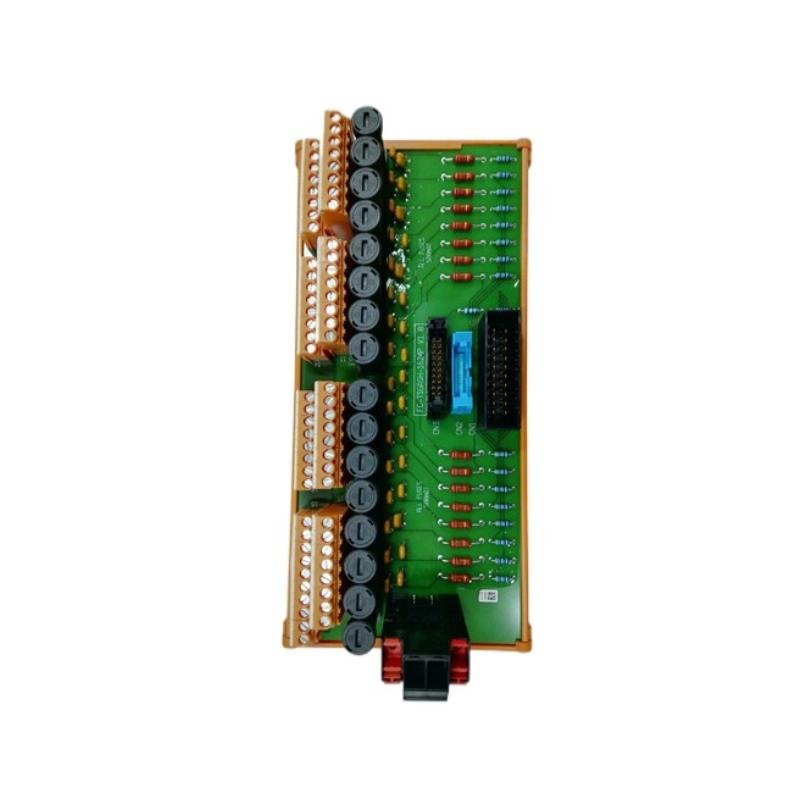

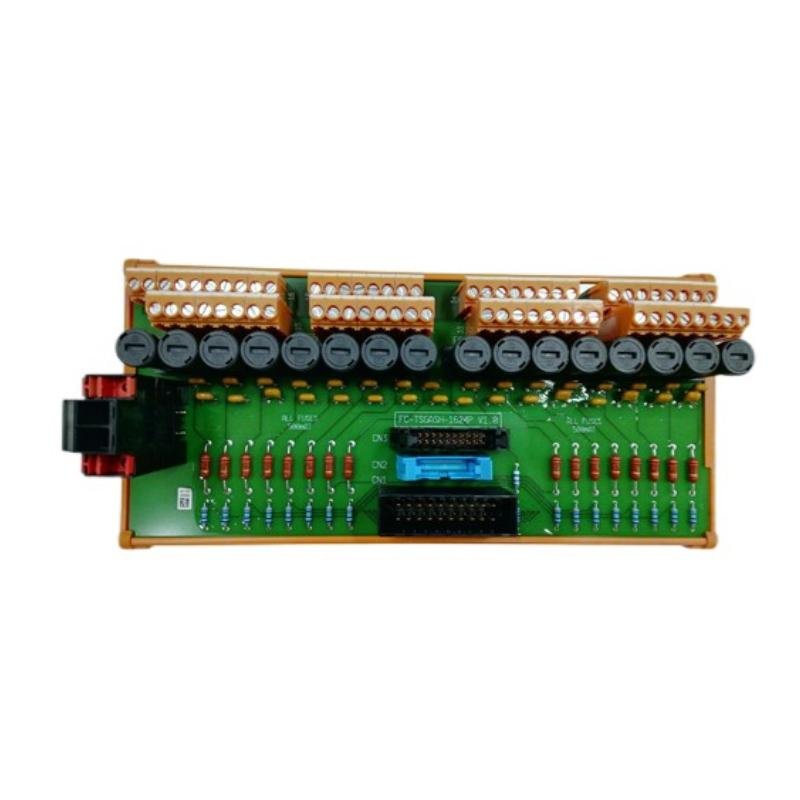

Honeywell FC-TSGAS-1624 Field Terminal Module Assemblies
Manufacturer: Honeywell
Product Number: FC-TSGAS-1624
Category: Field Terminal Module (FTM) Assemblies
System Compatibility: Honeywell Safety Manager system, safety-related analog or discrete I/O modules
Function: Provides reliable signal interfacing and simplified field wiring termination for safety modules
Product Description
The Honeywell FC-TSGAS-1624 is a field terminal module (FTM) designed for use with safety-related analog or discrete input/output modules within Honeywell’s Safety Manager system. This FTM provides reliable signal interfacing and simplified field wiring, while ensuring electrical isolation and physical separation of safety signals. It is optimized for ease of installation and maintenance in safety instrumented systems (SIS), supporting up to 16 field signals with high reliability in mission-critical environments.
Key Features
-
Direct Module Interface–Designed for use with Honeywell Safety Manager I/O modules
-
16-Channel Support–Accommodates up to 16 field signal connections in one assembly
-
Simplified Wiring–Provides organized termination points for field wiring and signal routing
-
Isolation and Protection–Ensures electrical isolation and protection against transient voltages
-
DIN Rail Mounting–Compact design for easy installation in control cabinets
-
Enhanced Safety Design–Supports high-integrity applications in compliance with IEC 61508
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 60 × 70 × 225 mm |
| Weight | 0.5 kg |
Electrical Characteristics
| Item | Specification |
|---|---|
| Number of Channels | 16 signal terminals |
| Voltage Range | 0–30 V DC (application dependent) |
| Current Capacity | Up to 2 A per channel |
| Terminal Type | Screw-type, removable connector blocks |
| Wire Size Supported | 14–22 AWG (solid or stranded) |
Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | -20°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5%–95% non-condensing |
| Protection | IP20 (when installed in enclosure) |
System Compatibility
| Item | Specification |
|---|---|
| Compatible Systems | Honeywell Safety Manager |
| Supported Modules | Compatible I/O modules (digital or analog) |
| Mounting | DIN rail |
Industry Applications
-
Oil & Gas–Enables secure field termination in emergency shutdown and process control systems
-
Chemical Processing–Provides signal interfacing for high-integrity interlocks and alarm systems
-
Power Generation–Used in turbine and boiler protection loops for safe wiring and signal routing
-
Pharmaceuticals–Supports validated control systems requiring high signal integrity
-
Water & Wastewater–Ensures reliable sensor and actuator wiring in critical infrastructure
The Honeywell FC-TSGAS-1624 Field Terminal Module Assembly offers a dependable and organized solution for wiring critical safety signals in industrial environments. Its robust design, high channel density, and compatibility with Honeywell Safety Manager systems make it an essential component in safety instrumented architectures.
