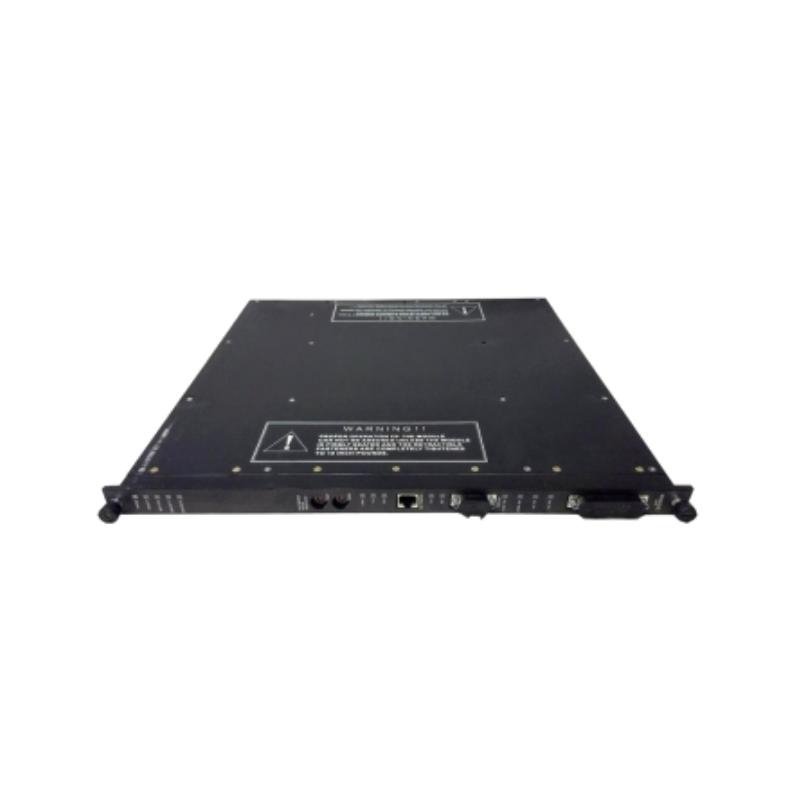

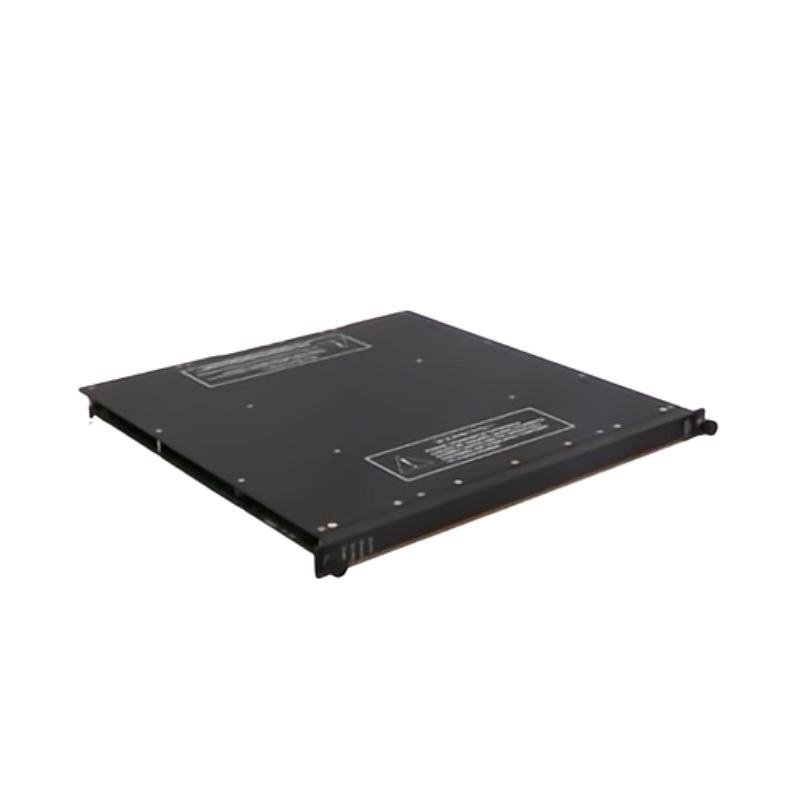

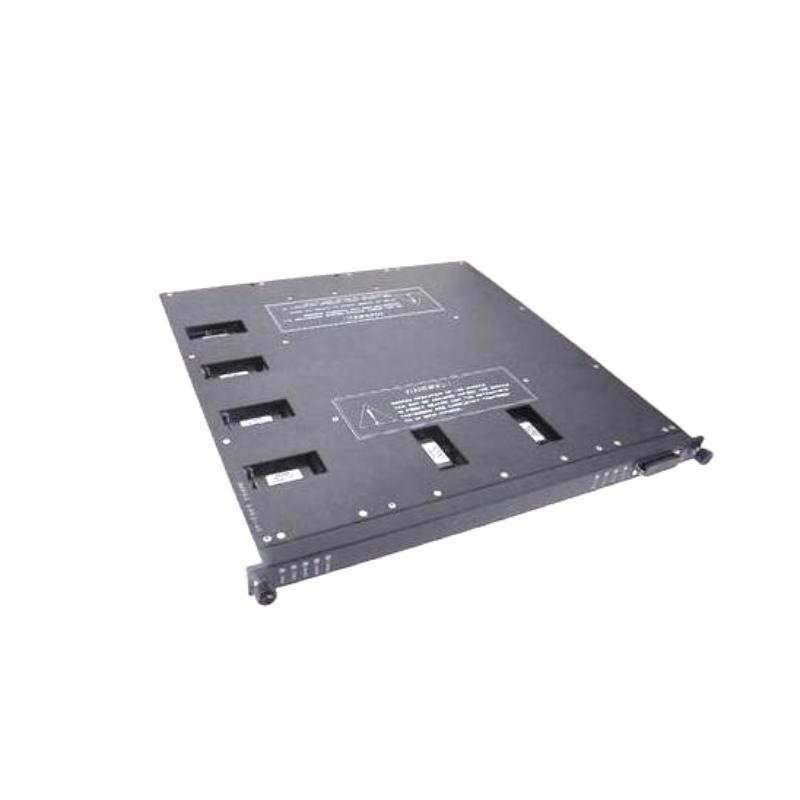

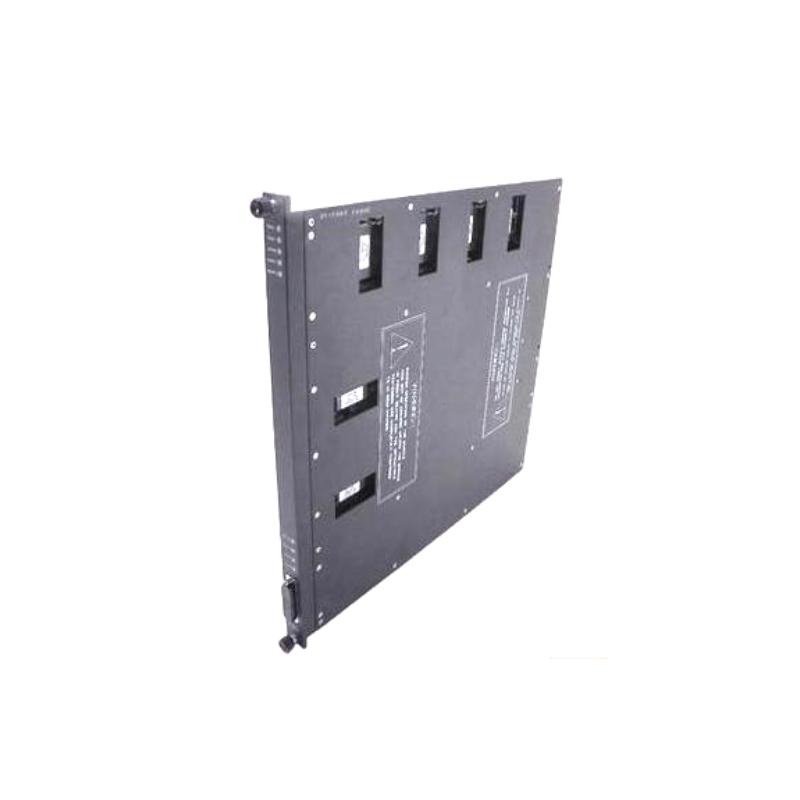

Triconex 4305A Enhanced Intelligent Communication Module
Manufacturer: Triconex (Schneider Electric)
Product Number: 4305A
Category: Enhanced Intelligent Communication Module (EICM)
System Compatibility: Triconex safety controller
Features: Redundant data exchange, robust and secure communication
Function: Provides robust, secure, and redundant data exchange between safety controller and external systems
Product Description
The Triconex 4305A Enhanced Intelligent Communication Module (EICM) is a high-performance communication module designed to provide robust, secure, and redundant data exchange between the Triconex safety controller and external systems. Part of the Schneider Electric Triconex product family, the 4305A enables seamless integration with distributed control systems (DCS), human-machine interfaces (HMI), historians, and third-party automation networks.
The 4305A module enhances communication performance with support for Modbus, TCP/IP, and other industrial protocols, while maintaining the deterministic and fault-tolerant characteristics required for critical safety applications. It ensures reliable operation in SIL 3 environments and is frequently deployed in safety instrumented systems (SIS) within the oil & gas, chemical, and power industries.
Key Features
-
Redundant Operation Support–Capable of operating in primary/secondary configurations for fault-tolerant communication
-
Multiple Protocols–Supports Modbus RTU/ASCII, Modbus TCP, and Triconex peer-to-peer communication
-
High-Speed Data Transfer–Enables fast and secure exchange of process and diagnostic information
-
Robust Diagnostics–Integrated system diagnostics and health monitoring capabilities
-
Secure Communications–Built-in integrity and error-checking mechanisms to ensure data reliability
-
System Integration–Seamlessly integrates with Tricon v11 safety systems and other Triconex architecture components
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 200 x 100 x 40 mm |
| Weight | 0.5 kg |
Electrical Characteristics
| Item | Specification |
|---|---|
| Input Voltage | Supplied via Tricon chassis backplane |
| Power Consumption | Approx. 6 W |
| Communication Ports | 2 × RS-232/RS-485 serial ports, 1 × Ethernet port |
Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5%–95% RH (non-condensing) |
| Vibration Resistance | 2 g @ 10–500 Hz |
| Protection Rating | IP20 |
System Compatibility
| Item | Specification |
|---|---|
| Triconex Compatibility | Tricon v9 and v10/v11 main processors |
| Supported Protocols | Modbus RTU, Modbus TCP, Peer-to-Peer Messaging |
| Programming Support | Triconex TriStation 1131 software |
| SIL Certification | IEC 61508 SIL 3 |
Industry Applications
-
Oil & Gas–Communication interface in safety systems for refineries, pipelines, and offshore platforms
-
Chemical and Petrochemical–Facilitates reliable data exchange in SIS and emergency shutdown systems
-
Power Generation–Used in turbine protection, boiler management, and plant-wide communication
-
Pharmaceutical Manufacturing–Supports compliant and secure data transmission in GMP-regulated systems
-
Water and Wastewater–Integrated in control architectures to ensure safe and stable operations
The Triconex 4305A Enhanced Intelligent Communication Module delivers the speed, redundancy, and protocol flexibility required for mission-critical communications in safety systems. It is a trusted component in high-integrity automation solutions where continuous system availability and reliability are non-negotiable.
