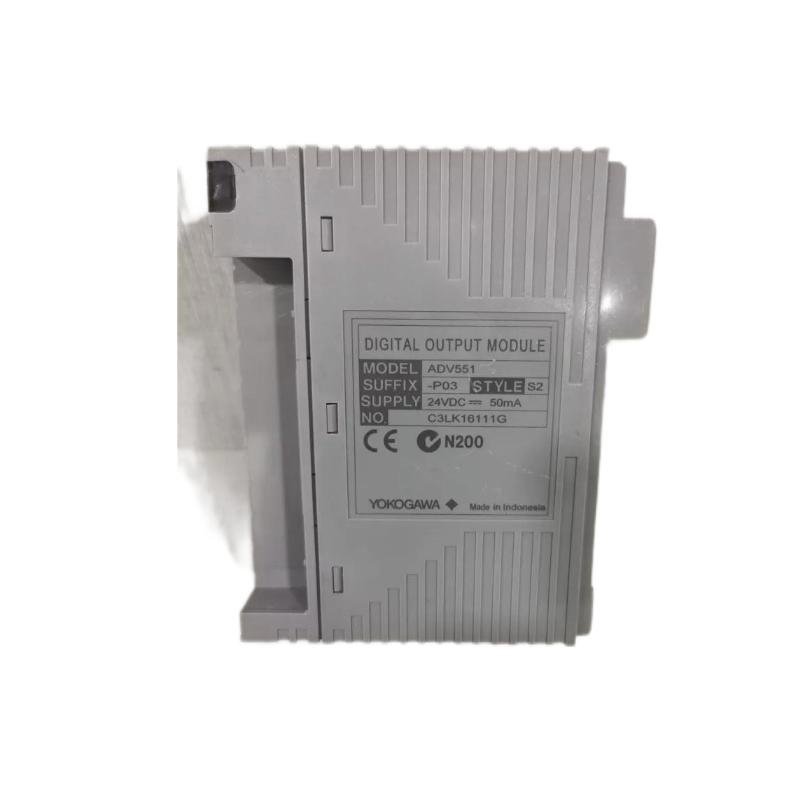

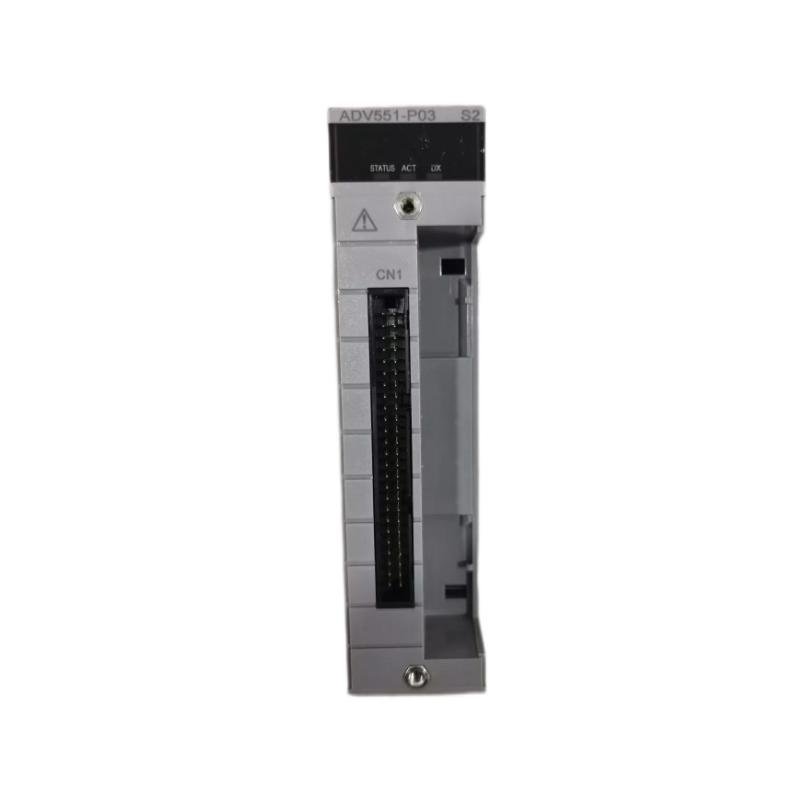

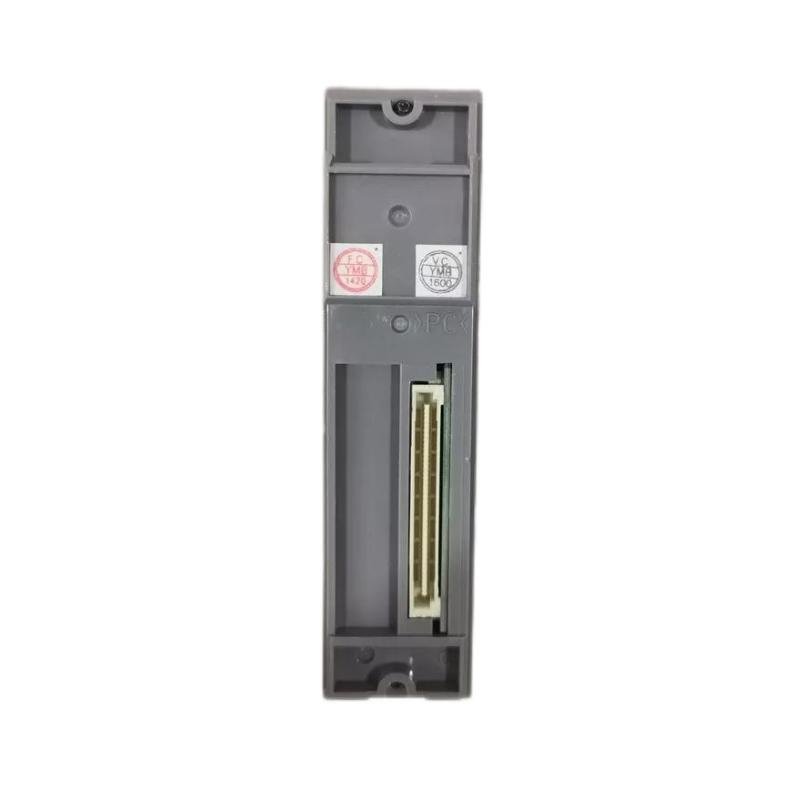

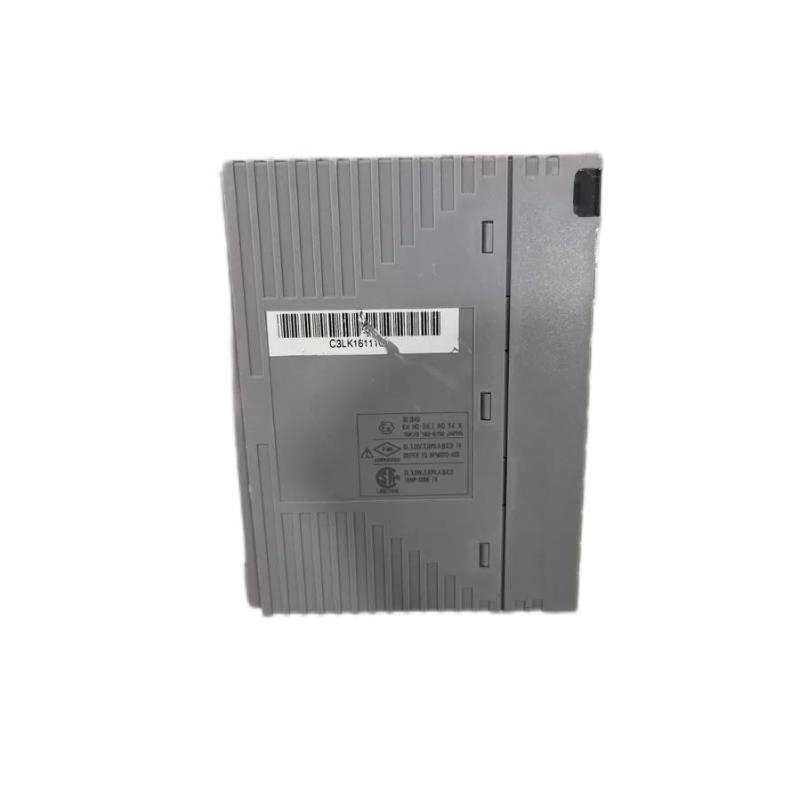

Yokogawa ADV551-P03 S2 Digital Output Modules
Manufacturer: Yokogawa
Product Number: ADV551-P03 S2
Category: Digital Output Module (CENTUM and STARDOM control systems)
Number of Channels: 32
Output Type: Transistor contact outputs
System Compatibility: Yokogawa CENTUM and STARDOM control systems
Application: Control of a wide range of field devices requiring digital output signals
Product Description
The Yokogawa ADV551-P03 S2 is a 32-channel digital output module designed for use in Yokogawa’s CENTUM® and STARDOM® control systems. This module provides reliable transistor contact outputs, enabling control of a wide range of field devices such as actuators, solenoids, and valves. With its high load capacity and pulse width modulation (PWM) capabilities, it is ideal for industrial automation applications that require precise and reliable digital signal transmission. The module ensures excellent system performance in harsh industrial environments.
Key Features
-
32 Output Channels: Supports up to 32 digital output channels for flexible system configuration.
-
Transistor Contact Output: Each channel provides a current sink output, suitable for controlling various field devices.
-
High Load Capacity: Capable of handling up to 100 mA per channel at 26.4 V DC.
-
Pulse Width Modulation (PWM): Supports PWM output with a range from 8 ms to 7200 s, providing precise control of actuators.
-
Time-Proportioning Output: Enables time-proportioning ON/OFF control, ideal for applications requiring variable control.
-
Dual Redundant Configuration: Supports redundant configurations to enhance system reliability and availability.
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 107.5 × 130 × 32.8 mm |
| Weight | 0.2 kg |
Electrical Characteristics
| Item | Specification |
|---|---|
| Number of Output Channels | 32 |
| Rated Applied Voltage | 24 V DC |
| Output Format | Current Sink |
| Maximum Load Current | 100 mA/channel at 26.4 V DC |
| Pulse Width Range | 8 ms to 7200 s |
| Pulse Width Resolution | 8 ms (additional 1 ms for ON/OFF) |
| Output Response Time | 16 ms or less |
Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | -40°C to +70°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 95% non-condensing |
| Environmental Seal | IP20 |
System Compatibility
| Item | Specification |
|---|---|
| Compatible Systems | Yokogawa CENTUM® and STARDOM® systems |
| Mounting | DIN rail or screw mounting options |
Industry Applications
-
Industrial Automation: Ideal for controlling field devices such as actuators and valves in large-scale automation systems.
-
Process Control: Essential for industries like oil & gas, chemical, and manufacturing for precise control of digital signals.
-
Control Systems: Integrates seamlessly into Yokogawa CENTUM® and STARDOM® systems, ensuring reliable and efficient process control.
The Yokogawa ADV551-P03 S2 Digital Output Module is a critical component for industrial automation and process control systems, providing reliable and high-performance output capabilities. With its robust design, wide range of features, and system compatibility, it ensures precise control of field devices in demanding industrial environments.
