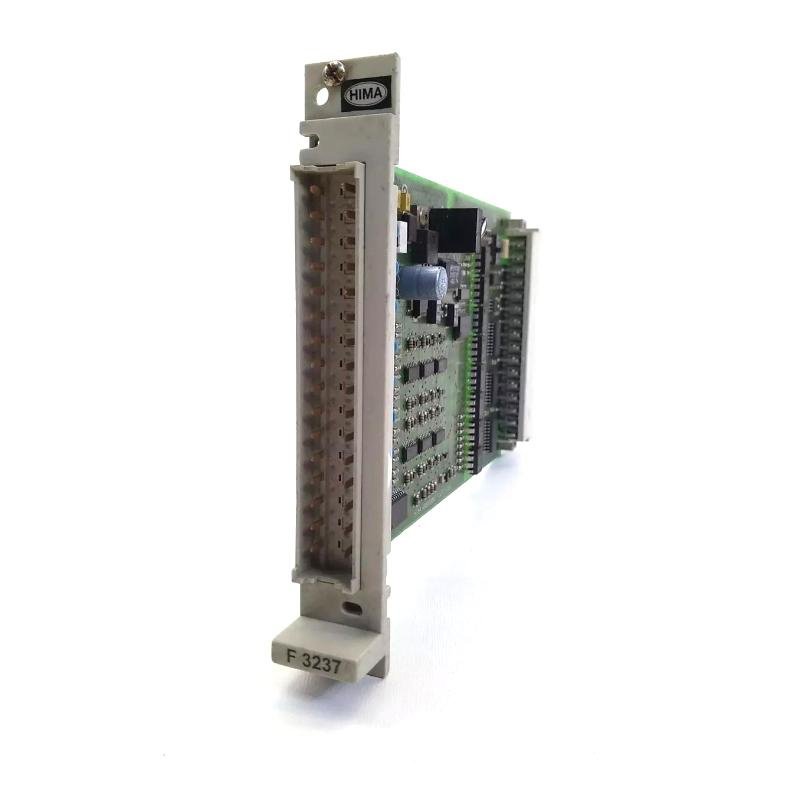

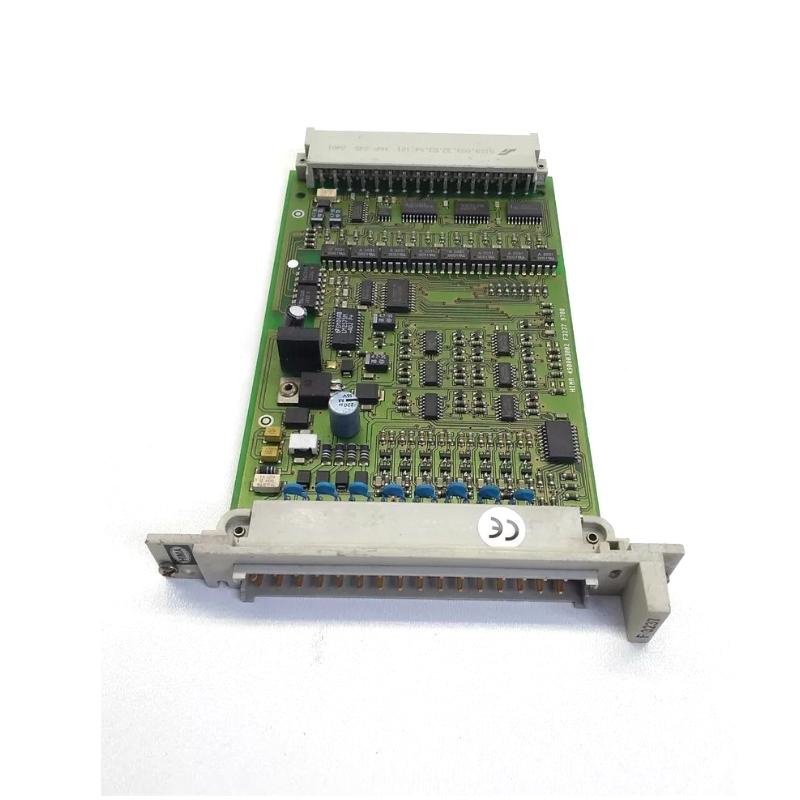

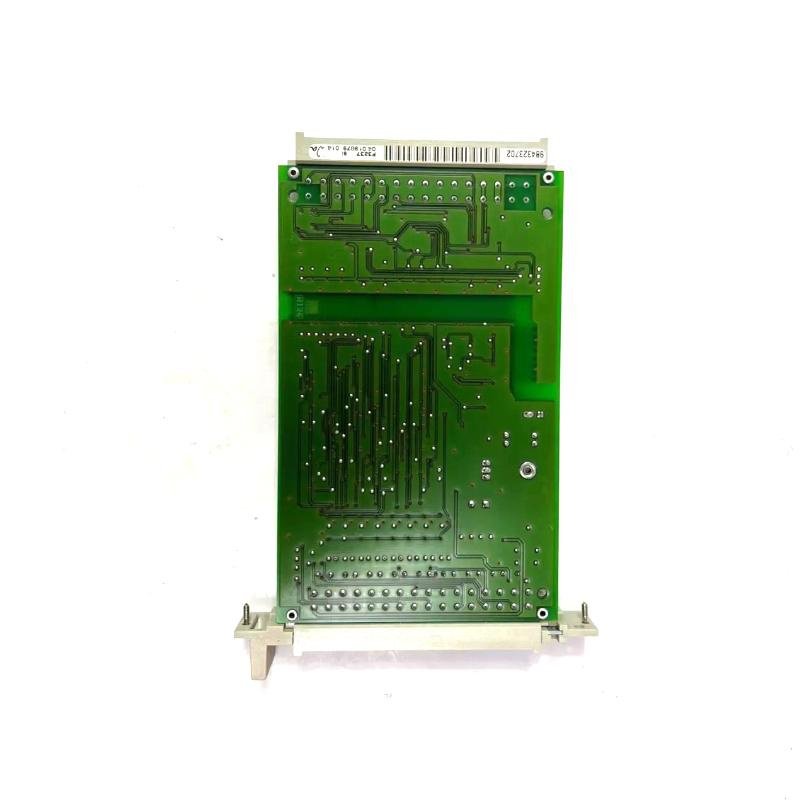

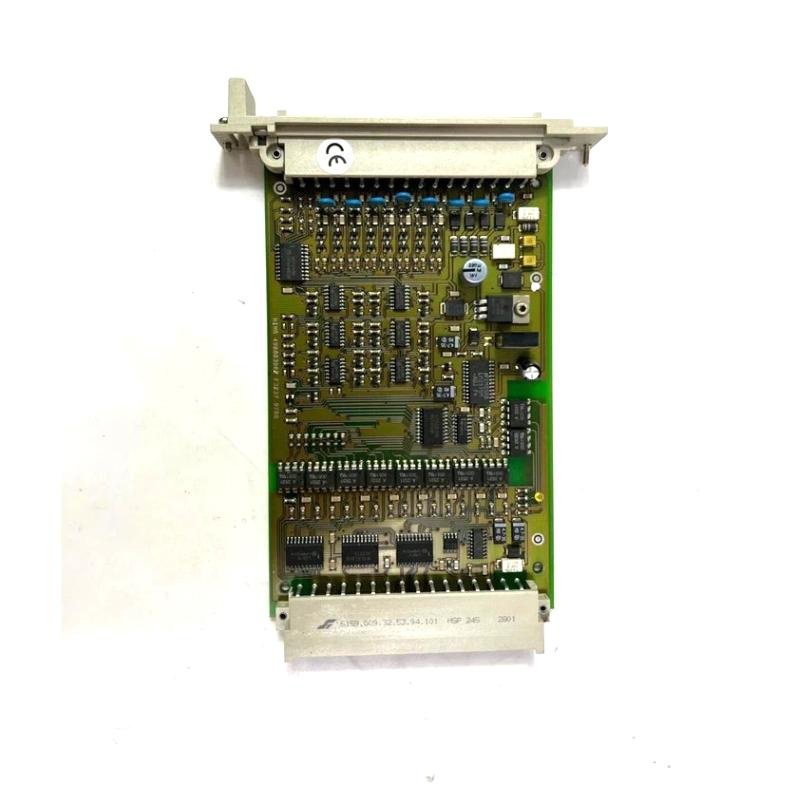

Hima F3237 Safety-Related Digital Input Module
Manufacturer: HIMA
Product Number: F3237
Category: 8-Channel Safety-Related Digital Input Module
Number of Channels: 8
Input Type: Proximity switches, NAMUR devices (DIN 19234), resistive sensors
Switching Time: Approx. 10 ms
Input Current Thresholds: 1 signal: 2.1-6.0 mA; 0 signal: 0.35-1.2 mA; wire break <0.28 mA
Line Impedance: ≤50 Ohm (per DIN 19234)
Power Consumption: 5V: 90 mA; 24V: 170 mA
Product Description
The HIMA F3237 is an eight-channel safety-related digital input module designed for use in industrial automation and safety systems. It supports the connection of proximity switches (including NAMUR devices according to DIN 19234) and resistor-wired sensors, while continuously monitoring wiring integrity such as short-circuit and wire-break detection. The module performs built-in self-tests during operation to ensure reliable performance.
It is ideal for safety-critical applications requiring high availability and functional safety up to SIL 3.
Main Features:
-
Eight isolated safety-related input channels
-
Supports NAMUR proximity sensors per DIN 19234
-
Continuous self-diagnostic and line-fault detection
-
Suitable for redundant safety architectures
-
Compact 4 TE plug-in module design
-
Typical switching time of approximately 10 ms
Technical Specifications
| Parameter | Specification | Remarks |
|---|---|---|
| Model Number | F3237 | Eight-channel safety input module |
| Input Channels | 8 | For NAMUR and resistor-wired sensors |
| Safety Class | AK 1 … 6 / SIL 3 | Functional safety rated |
| Switching Time | ≈ 10 ms | Typical response time |
| Input Current (Ie) | 0-Signal: 0.35–1.2 mA / 1-Signal: 2.1–6.0 mA / Wire break: ≤ 0.28 mA / Short-circuit: ≥ 6.5 mA | Defines detection thresholds |
| Line Impedance | ≤ 50 Ω | According to DIN 19234 |
| Maximum Cable Length | ≤ 1 000 m (0.5 mm²) | For proximity switch connection |
| Sensor Supply Voltage (Us) | 8.2 V | Supplied to connected sensors |
| Module Power Consumption | 5 V: ≈ 90 mA; 24 V: ≈ 170 mA | Typical operating current |
| Mechanical Width | 4 TE | Rack mounting width |
| Dimensions (W × H × D) | Approx. 110 mm × 30 mm × 120 mm | Standard compact module size |
| Weight | Approx. 0.14 kg (140 g) | Lightweight construction |
| Operating Temperature | 0 °C–60 °C | Typical ambient range |
| Country of Origin | Germany | Manufactured by HIMA Paul Hildebrandt GmbH |
