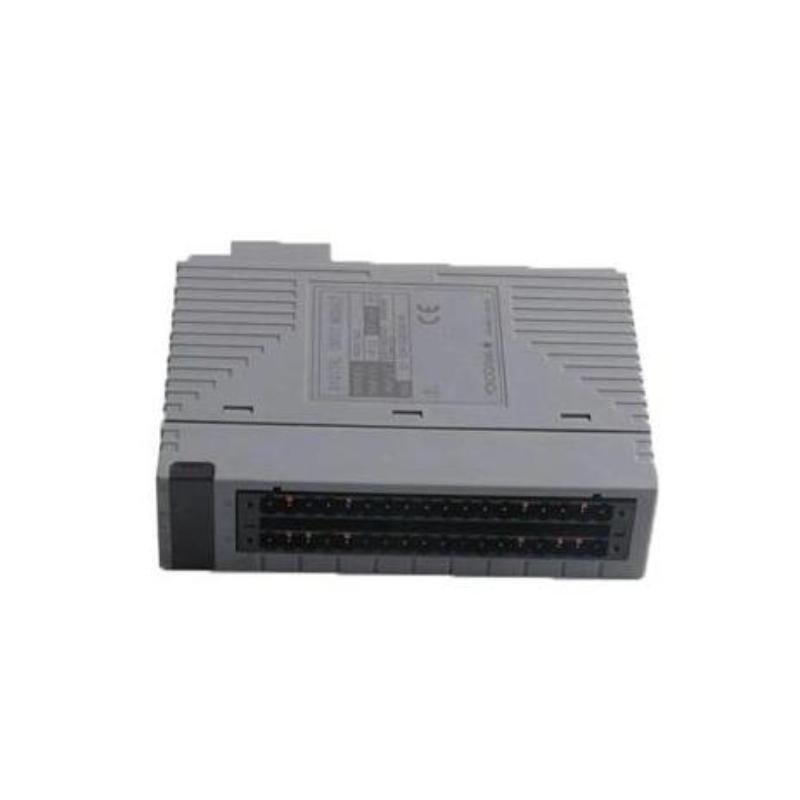

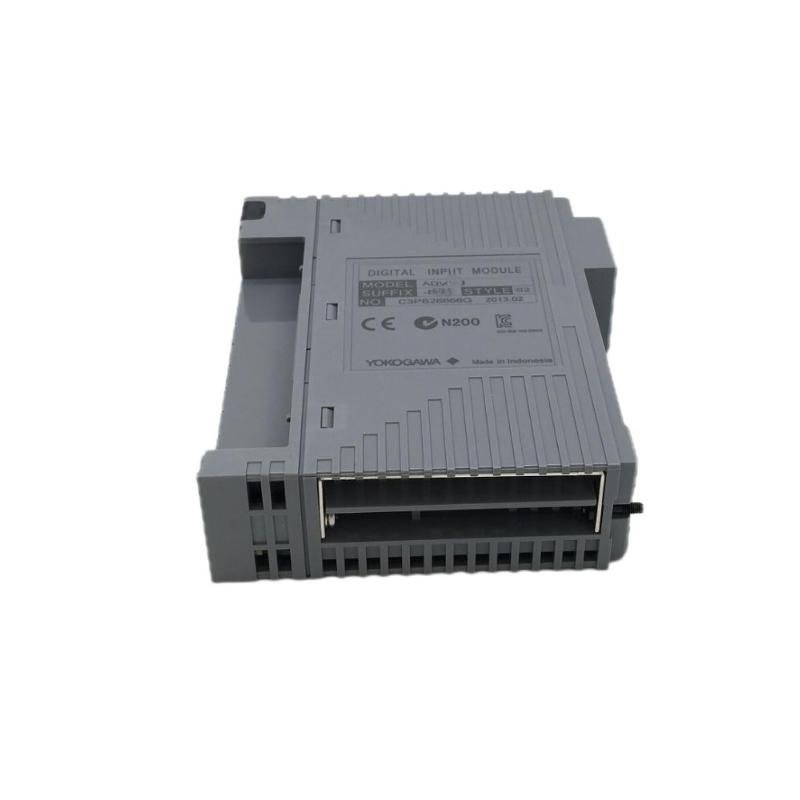

Yokogawa ADV869 Digital I/O Modules
Manufacturer: Yokogawa
Product Number: ADV869
Category: Digital I/O Modules (CENTUM VP and compatible DCS)
Features: Multiple isolated digital input and output channels for reliable high-speed signal interfacing
System Compatibility: Yokogawa CENTUM VP and compatible distributed control systems
Product Description
The Yokogawa ADV869 Digital I/O Modules are designed to deliver reliable, high-speed digital signal interfacing for Yokogawa’s CENTUM VP and compatible distributed control systems. These modules provide multiple isolated digital input and output channels with excellent noise immunity and fast response times. Equipped with comprehensive diagnostics, the ADV869 supports enhanced system monitoring and maintenance, making it suitable for critical industrial automation applications requiring robust digital control.
Key Features
-
Multiple Digital I/O Channels–Supports numerous isolated digital input and output channels
-
High-Speed Response–Ensures rapid processing of digital signals for precise control
-
Channel-to-Channel Isolation–Reduces interference and enhances signal integrity
-
Advanced Diagnostics–Real-time fault detection and status monitoring
-
Compact Design–Space-efficient for dense control panel installations
-
Broad System Compatibility–Compatible with Yokogawa CENTUM VP and other DCS platforms
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 130 x 127.2 x 32.8 mm |
| Weight | 0.3 kg |
Electrical Characteristics
| Item | Specification |
|---|---|
| Digital Inputs | Multiple isolated channels |
| Digital Outputs | Multiple isolated channels |
| Input Voltage Range | 24 VDC nominal |
| Isolation | Channel-to-channel isolation |
| Power Supply | 24 VDC nominal |
Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temperature | -20°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 10%–90% RH (non-condensing) |
| Enclosure Rating | IP20 |
| Shock/Vibration | IEC 60068-2 compliant |
System Compatibility
| Item | Specification |
|---|---|
| Platform | Yokogawa CENTUM VP and compatible DCS systems |
| Module Type | Digital Input/Output Module |
Industry Applications
-
Petrochemical Industry–Reliable digital I/O for process safety and automation
-
Power Generation–Fast digital signal handling for turbine and plant control
-
Water & Wastewater Treatment–Accurate digital monitoring and control
-
Chemical Processing–Robust digital I/O for hazardous environments
-
Pharmaceutical Manufacturing–Supports validated digital control systems
The Yokogawa ADV869 Digital I/O Modules provide reliable, fast, and isolated digital signal processing capabilities, making them ideal for demanding industrial control applications.
