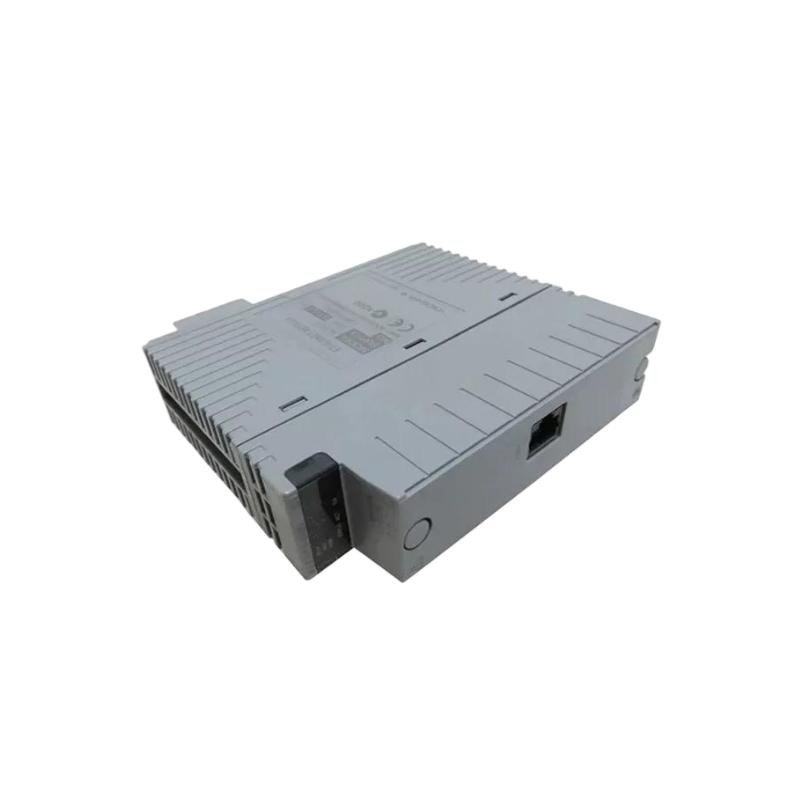

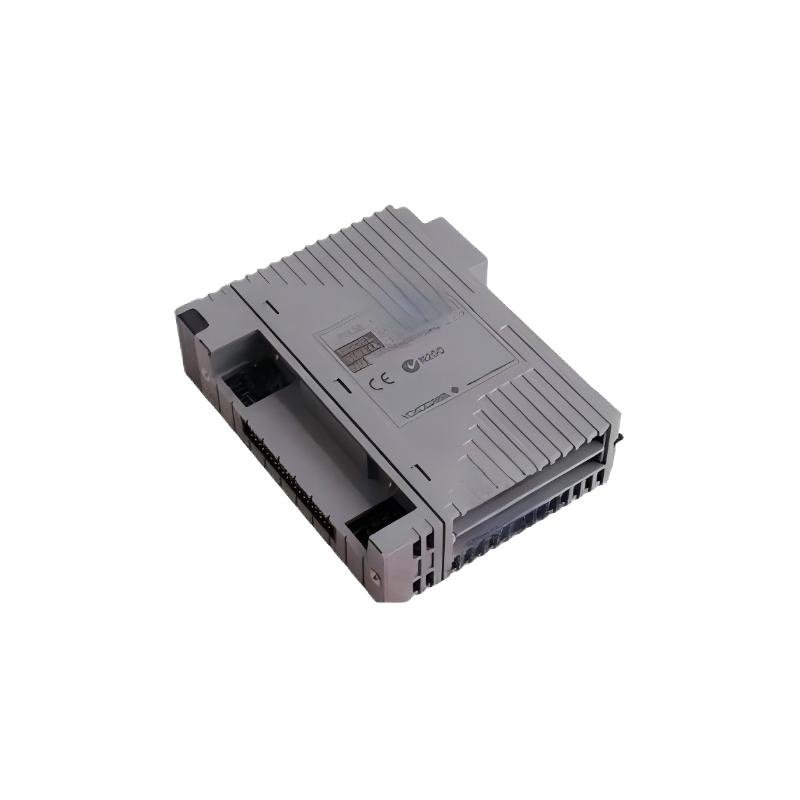

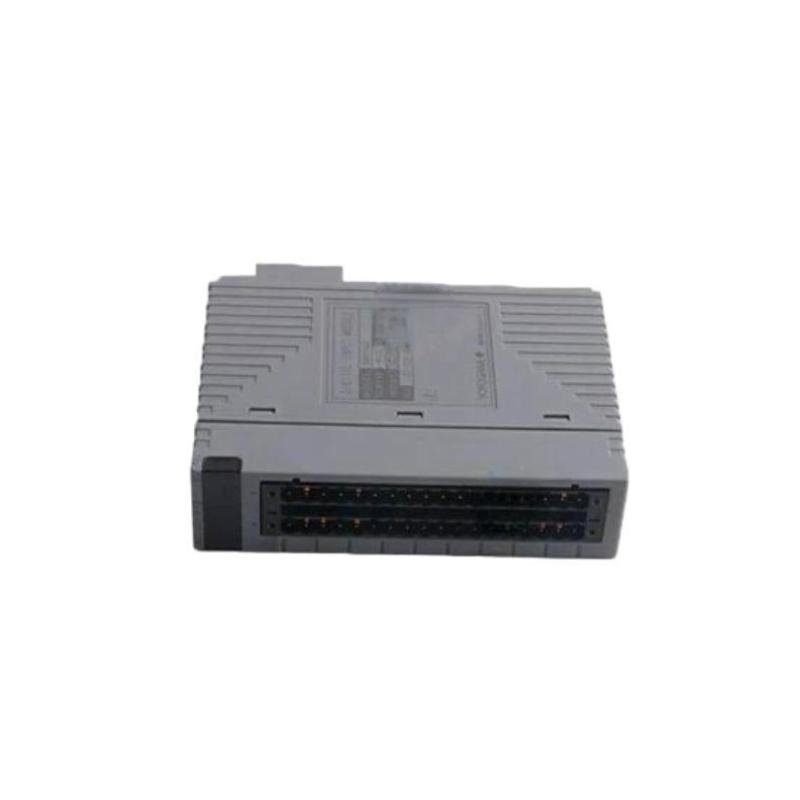

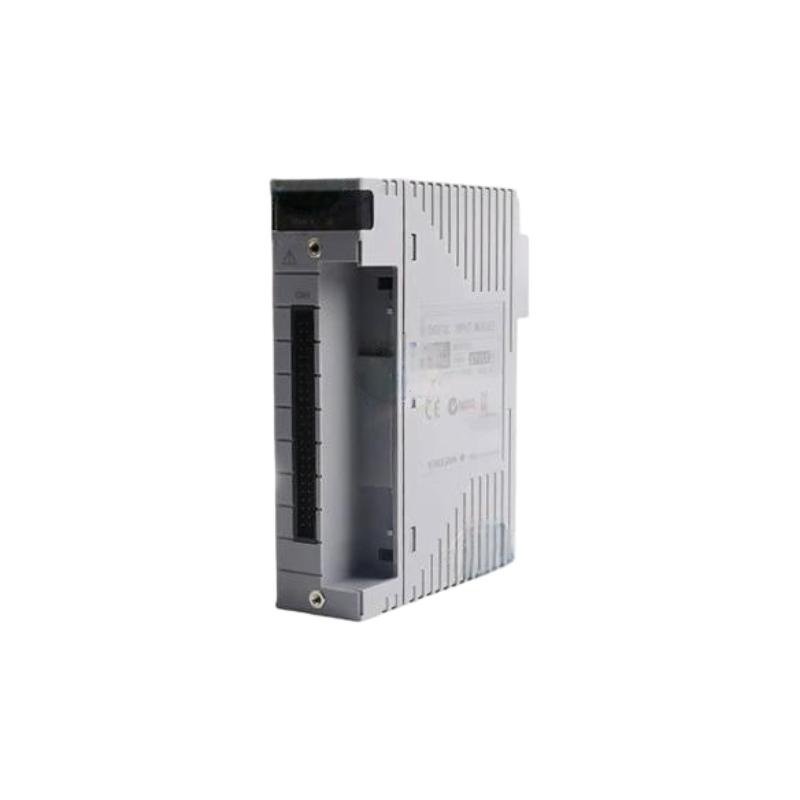

Yokogawa ADV144-S13 Digital Input Modules
Manufacturer: Yokogawa
Product Number: ADV144-S13
Category: Digital Input Module
System Compatibility: Yokogawa control systems
Function: Efficient digital signal processing, allowing seamless integration of digital signals from field devices
Product Description
The Yokogawa ADV144-S13 Digital Input Modules are designed to provide reliable and efficient digital signal processing in Yokogawa’s control systems. These modules allow for seamless integration of digital signals from field devices into the system, offering precise and dependable control. With robust construction and versatile functionality, the ADV144-S13 modules are ideal for use in a wide range of industries, including process automation, manufacturing, energy, and utilities. The modules are engineered to handle demanding environments, ensuring that the system operates continuously with minimal downtime.
Key Features
-
Reliable Digital Signal Processing–Processes digital signals from various field devices such as switches, relays, and sensors with high precision
-
Flexible Integration–Compatible with a wide array of industrial sensors and field devices, ensuring smooth integration with Yokogawa control systems
-
Compact Design–Space-saving form factor allows for easy installation in control panels or system racks, maximizing space efficiency in control rooms
-
Real-Time Signal Conversion–Ensures fast and accurate conversion of digital signals, providing immediate response for real-time control and monitoring
-
Durable for Harsh Environments–Built to withstand tough industrial conditions, including electrical noise, extreme temperatures, and mechanical vibrations
-
Easy Setup and Configuration–Designed for quick installation and seamless integration into existing Yokogawa systems, minimizing setup time and operational downtime
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 107.5 × 130 × 32.8 mm |
| Weight | 0.3 kg |
Electrical Characteristics
| Item | Specification |
|---|---|
| Input Voltage | 24 VDC (nominal) |
| Input Type | Digital (Discrete) |
| Number of Channels | 8 input points per module |
| Input Voltage Range | 0–30 VDC |
| Isolation | 250 VDC isolation between channels |
Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5%–95% RH (non-condensing) |
| Vibration Resistance | Compliant with IEC industrial standards |
System Compatibility
| Item | Specification |
|---|---|
| Compatible Systems | Yokogawa DCS, SCADA systems, and other Yokogawa control systems |
| Mounting | DIN rail or panel-mounted |
Industry Applications
-
Process Automation–Facilitates reliable and precise digital signal processing for process control applications in industries such as chemical, petrochemical, and pharmaceuticals
-
Manufacturing–Ensures seamless data flow between field devices and control systems in automated manufacturing environments
-
Oil & Gas–Provides robust and reliable digital signal integration for critical control systems in oil rigs, refineries, and pipelines
-
Water & Wastewater Treatment–Supports control systems in water and wastewater facilities, ensuring accurate monitoring of sensors and field devices
-
Energy & Utilities–Integrates with power generation and distribution systems, ensuring smooth control and monitoring of equipment in the energy sector
The Yokogawa ADV144-S13 Digital Input Modules are a reliable, durable, and efficient solution for integrating digital signals into Yokogawa control systems. Their rugged design and fast signal processing make them ideal for a wide range of industrial applications that require precise control, real-time monitoring, and dependable performance under challenging environmental conditions.
