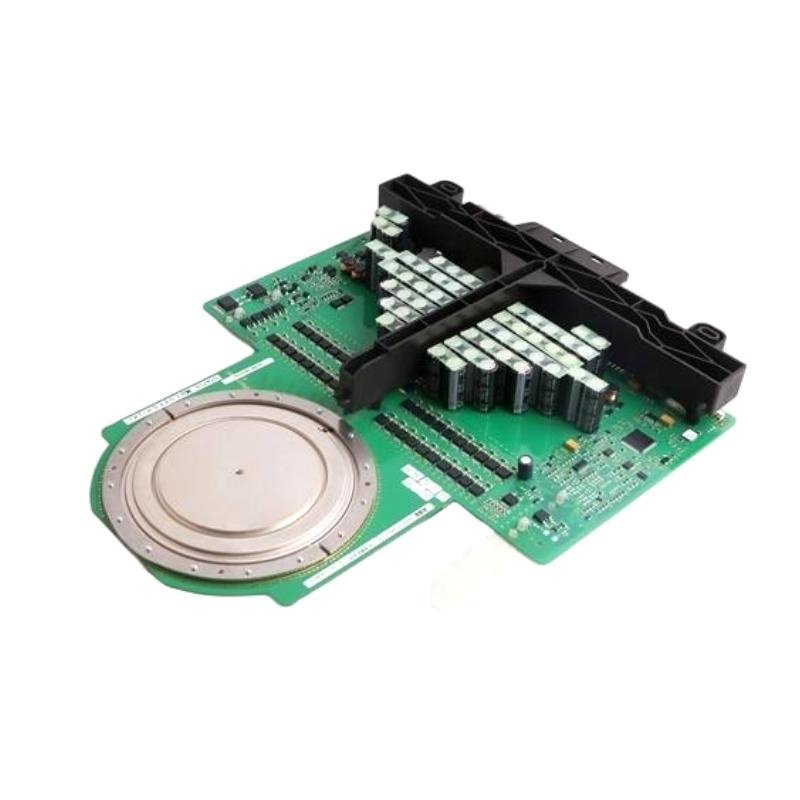

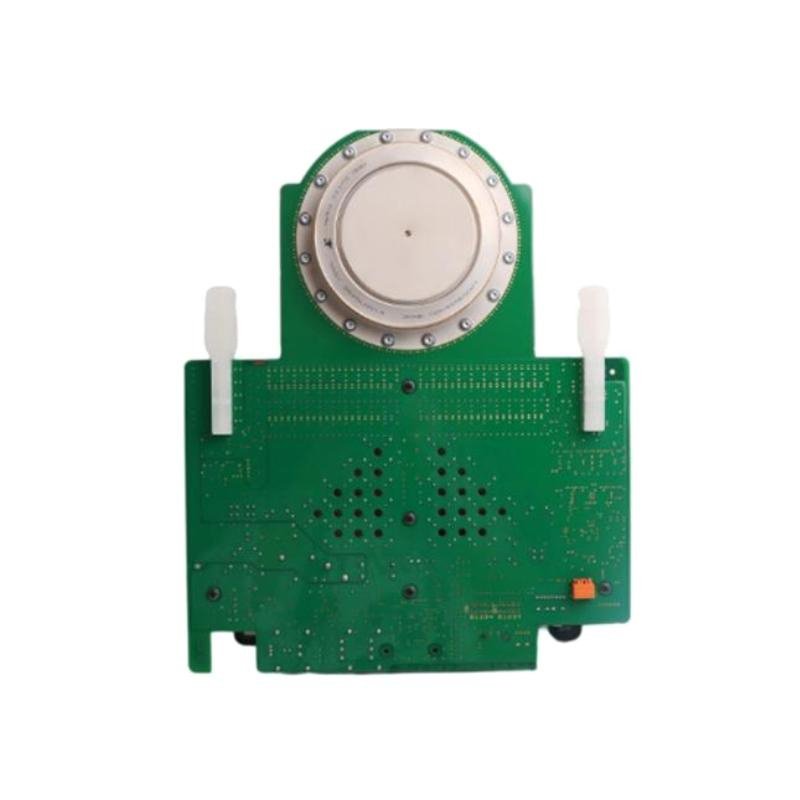

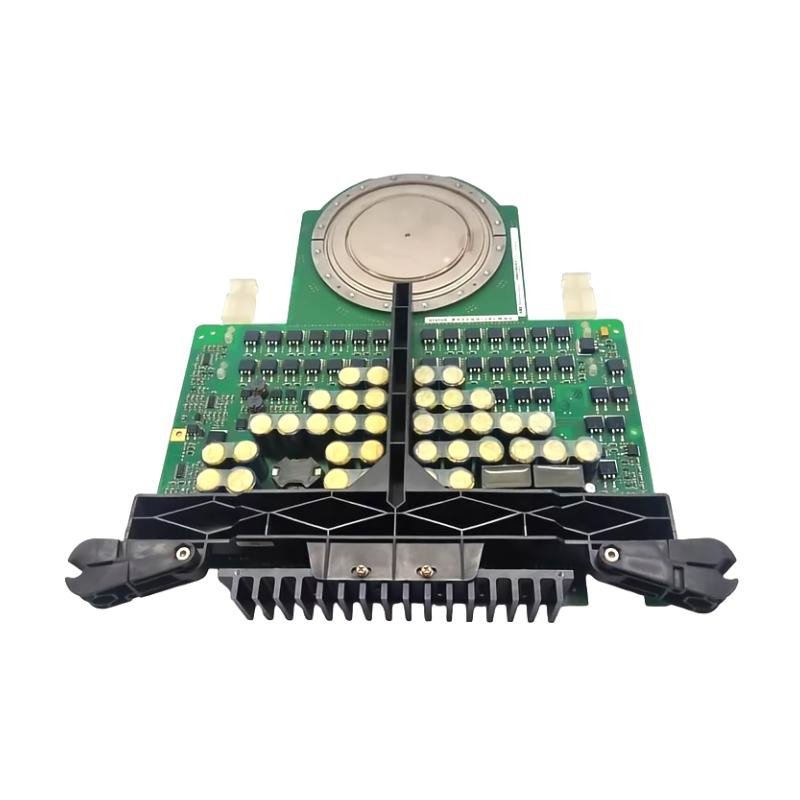

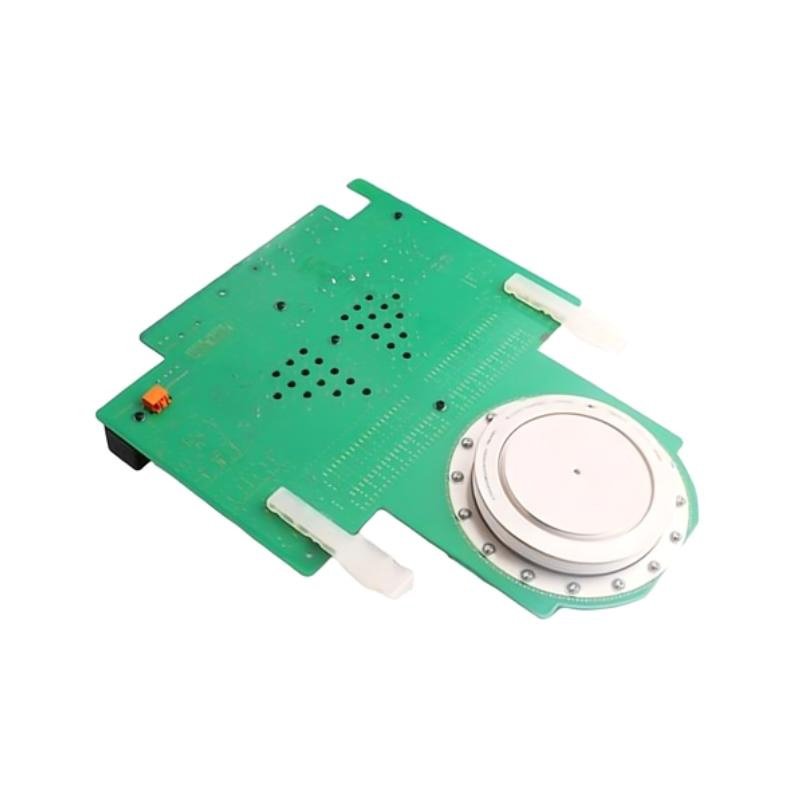

ABB 5SHY3545L0014 3BHE023784R0001 Thyristor Modules
Manufacturer: ABB
Product Number: 5SHY3545L0014 (3BHE023784R0001)
Category: Thyristor Module
Voltage Rating: 4500V (typical)
Current Rating: 3545A
Application: High voltage and current switching in industrial power control applications
Product Description
The ABB 5SHY3545L0014 and 3BHE023784R0001 are high-quality thyristor modules designed for industrial power control applications. These modules provide reliable and efficient switching of high voltage and current loads, enabling precise control of AC power in applications such as motor drives, heating controls, and power converters. With robust construction and advanced thermal management, these thyristor modules ensure long-term stability and safety in demanding industrial environments.
Key Features
-
High current and voltage handling capability for demanding industrial loads
-
Fast switching and low conduction losses for efficient power control
-
Integrated thermal management features to prevent overheating
-
Robust packaging suitable for harsh operating conditions
-
Compatible with various ABB power control systems and devices
-
Easy installation and maintenance with standardized connections
Technical Specifications
Dimensions and Weight
| Specification | Value |
|---|---|
| Dimensions | 120 x 26 x 120 mm |
| Weight | 1.32 kg |
Electrical Characteristics
| Specification | 5SHY3545L0014 | 3BHE023784R0001 |
|---|---|---|
| Rated Voltage | 1200 V AC | 1600 V AC |
| Rated Current | 45 A | 35 A |
| Surge Current (I_TSM) | 450 A (for 10 ms) | 350 A (for 10 ms) |
| Gate Trigger Current | Typically 50-100 mA | Typically 50-100 mA |
| Maximum Operating Temperature | 125°C | 125°C |
| Isolation Voltage | 2500 V AC | 2500 V AC |
General Information
| Specification | Details |
|---|---|
| Module Type | Thyristor Module |
| Manufacturer | ABB |
| Application | AC power control, motor drives, heating control, power converters |
| Mounting | Panel or heatsink mounting |
Industry Applications
-
Industrial motor control and drives
-
Power regulation in heating systems
-
Power converters and inverters
-
Renewable energy systems such as solar and wind inverters
-
Industrial automation systems requiring precise AC power control
The ABB 5SHY3545L0014 and 3BHE023784R0001 thyristor modules provide robust, efficient, and reliable solutions for AC power control in demanding industrial applications. Their high voltage and current ratings, combined with advanced thermal management and durable design, make them suitable for a wide range of power control systems, ensuring consistent performance and longevity.
