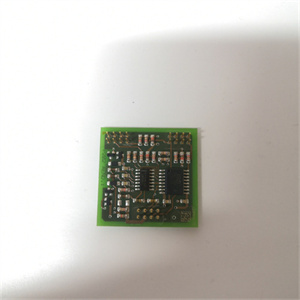

ABB XVC767AE102 Product Overview

ABB XVC767AE102 is a medium-sized motor control center(MCC)or high-speed interface module provided by ABB.It is mainly used to control and protect industrial motors or as a spare part for PLC/DCS systems.It is favored by the market for its compact structure,powerful functions,easy installation and maintenance,and high reliability and safety.

Technical specifications

Rated voltage:AC 380V(when used as a motor control center)

Rated current:630A(when used as a motor control center)

Breaking capacity:35kA(when used as a motor control center)

Protection level:IP54(when used as a motor control center)/IP30(may be different when used as a high-speed interface module)

Certification standards:IEC,CE,CCC(when used as a motor control center)

Dimensions:1200 x 800 x 600 mm(when used as a motor control center)

Weight:about 500 kg(when used as a motor control center)

Installation method:floor-standing installation(when used as a motor control center)/35mm DIN rail installation(when used as a high-speed interface module)

Features

Compact structure:The product has a reasonable design and occupies a small space,which is easy to install in a limited industrial environment.

Powerful functions:Supports multiple protection functions,such as overload protection,short circuit protection,ground fault protection,etc.,to meet the needs of various industrial applications.

Easy installation and maintenance:The terminals are clear and easy to identify,which facilitates maintenance personnel to replace and repair parts.

High reliability and safety:The use of high-quality materials and manufacturing processes ensures stable operation in various environments and reduces the possibility of failure.

High-speed interface module features(if applicable)

Provide PCI Express expansion to make data transmission more efficient.

Ability to monitor rising and falling digital edge conversions of all lines and notify the host processor of changes in input status.

Each I/O line can be programmed for input,output,or output with readback operation,which has high flexibility.

It has fast dynamic response capabilities and can quickly adjust the speed and torque of the motor.

High control accuracy is achieved through advanced control algorithms and precise sensors.

Application fields

ABB XVC767AE102 is widely used in various industrial automation fields,including but not limited to

Oil and gas:Used to control pumps,compressors and other rotating equipment to ensure effective operation in oil and gas extraction,production and transportation.

Power:Used in safety systems such as generator protection and substation protection.

Water:used in water treatment equipment to control pumps and other equipment to maintain the stability and efficiency of the water treatment process.

Steel:in the manufacturing industry,it controls various mechanical equipment,such as conveyor belts,mixers,pumps,etc.on the production line.

Cement:also suitable for controlling various mechanical equipment on the production line.

Other industrial fields:such as manufacturing,wind power and renewable energy,building HVAC systems,transportation systems,etc.,have a wide range of applications.
