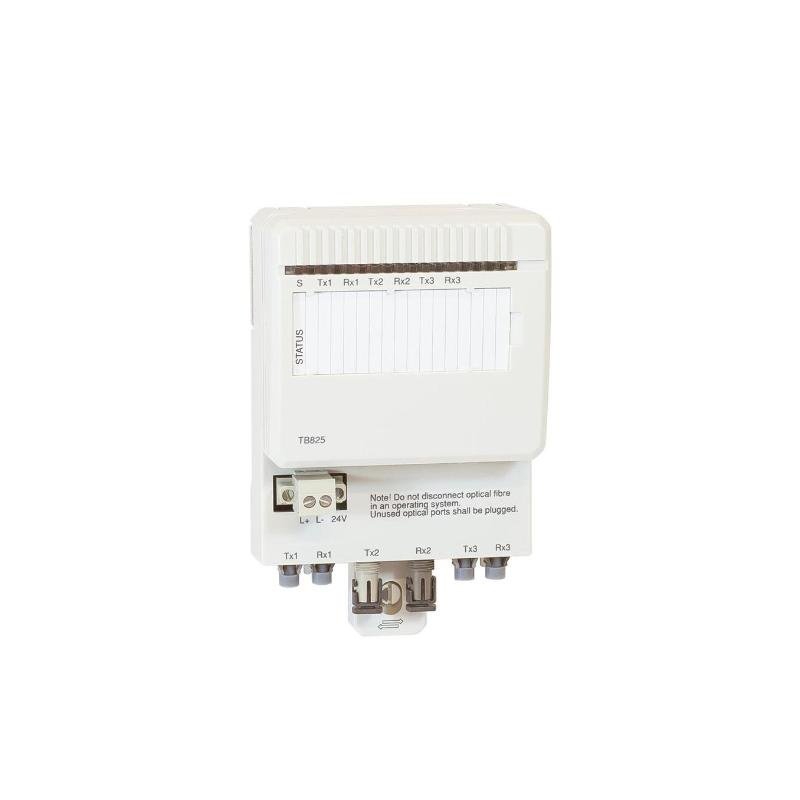

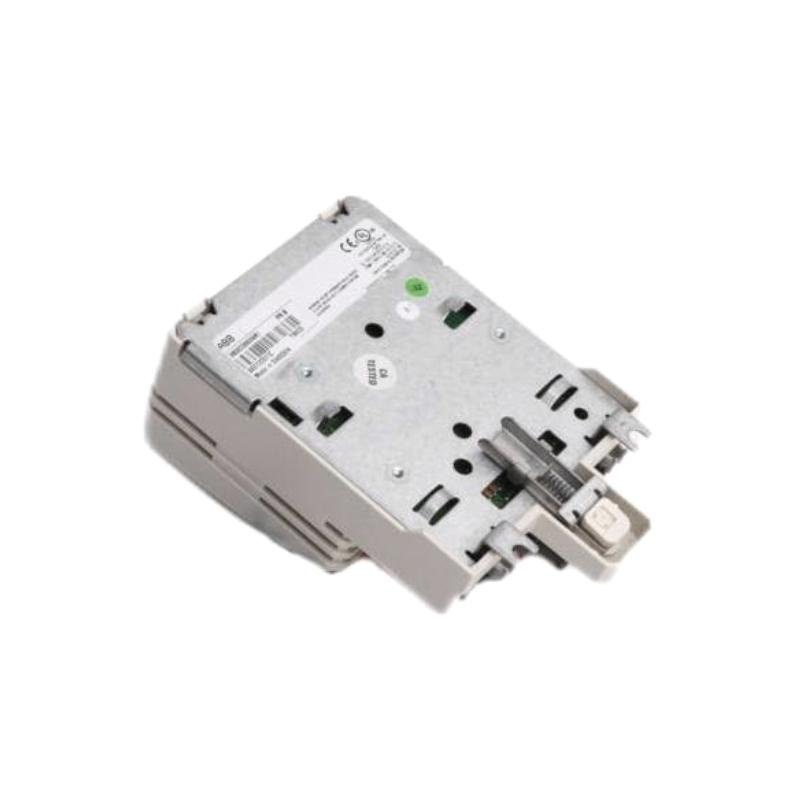

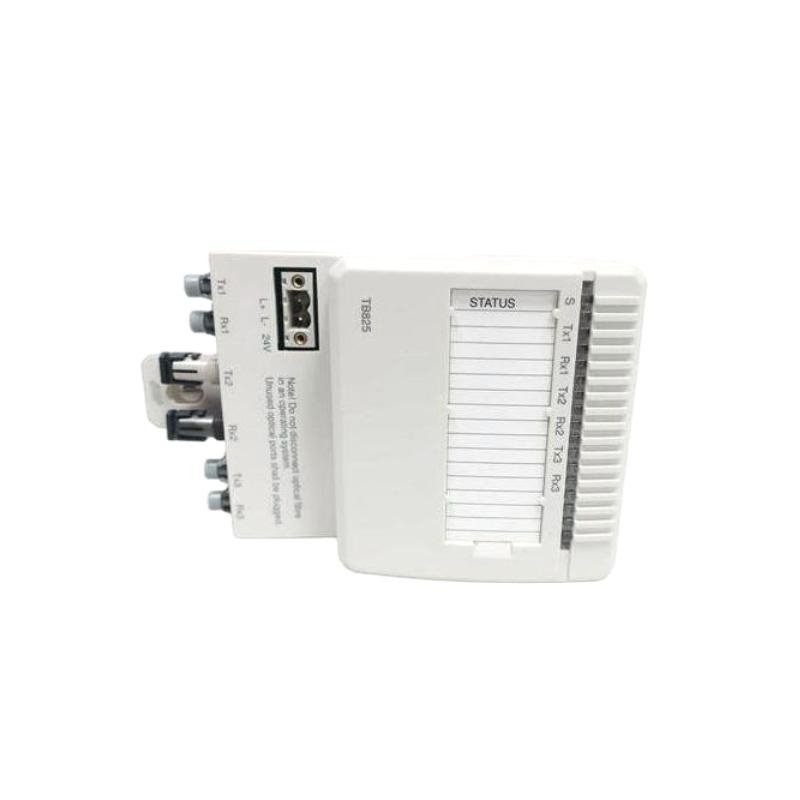

ABB TB825 3BSE036634R1 Module Bus Fiber Optic Media Converter Multimode
Manufacturer: ABB
Product Number: TB825 (3BSE036634R1)
Category: Module Bus Fiber Optic Media Converter (Multimode)
System Compatibility: ABB industrial control systems
Function: Enables high-speed, reliable data transfer over long distances via fiber optic media
Product Description
The ABB TB825 3BSE036634R1 Module Bus Fiber Optic Media Converter Multimode is an advanced communication module designed to enable high-speed, reliable data transfer over long distances within industrial control systems. The media converter provides seamless integration between copper-based communication systems and fiber optic networks, ensuring optimal performance and signal integrity in demanding environments. Specifically designed for ABB’s automation systems, the TB825 module supports multimode fiber optic cables, offering robust and secure communication solutions for industrial applications that require high-bandwidth data transmission.
Key Features
-
Fiber Optic Communication–Supports multimode fiber optic cables for extended communication range and high data transfer rates, ideal for large-scale industrial networks
-
Seamless Integration–Easily integrates with ABB control systems, providing efficient communication between copper and fiber optic networks
-
High-Speed Data Transfer–Ensures fast and reliable communication with minimal latency, reducing delays in industrial control systems
-
Durable Construction–Built to withstand harsh industrial environments, offering long-term reliability and minimal maintenance requirements
-
Compact and Flexible Design–Space-efficient module that fits easily within control systems and offers flexible installation options
-
EMI Protection–Provides excellent protection against electromagnetic interference (EMI), ensuring stable data transmission even in electrically noisy environments
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 85.6 x 136 x 58.5 mm |
| Weight | 0.21 kg |
Electrical Characteristics
| Item | Specification |
|---|---|
| Input Voltage | 24 V DC (nominal) |
| Power Consumption | 3 W |
| Current Rating | 125 mA (typical) |
| Signal Type | Fiber Optic and Digital Signals |
| Isolation Voltage | 500 V AC |
Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5%–95% RH (non-condensing) |
| Vibration | Up to 5 g (in application) |
| Enclosure Rating | IP20 |
System Compatibility
| Item | Specification |
|---|---|
| Platform | Compatible with ABB automation systems |
| Mounting | DIN Rail or Panel Mounted |
Industry Applications
-
Industrial Automation–Optimizes communication networks by enabling fiber optic connectivity for high-bandwidth, long-distance data transfer
-
Manufacturing–Used to connect control systems across large manufacturing facilities, ensuring seamless communication and minimal data loss
-
Energy Generation–Supports power plants and energy generation systems by connecting control systems over long distances, improving data integrity and operational efficiency
-
Oil & Gas–Essential for communication in oil and gas installations, where long-distance, interference-free data transmission is critical
-
Building Automation–Ensures reliable communication between control systems in large building management systems, enhancing HVAC, security, and lighting control
The ABB TB825 3BSE036634R1 Module Bus Fiber Optic Media Converter Multimode is a crucial component for industrial communication networks, providing high-speed, long-distance connectivity between copper and fiber optic systems. Its robust design, EMI protection, and seamless integration with ABB automation platforms make it an ideal solution for demanding industrial environments.
