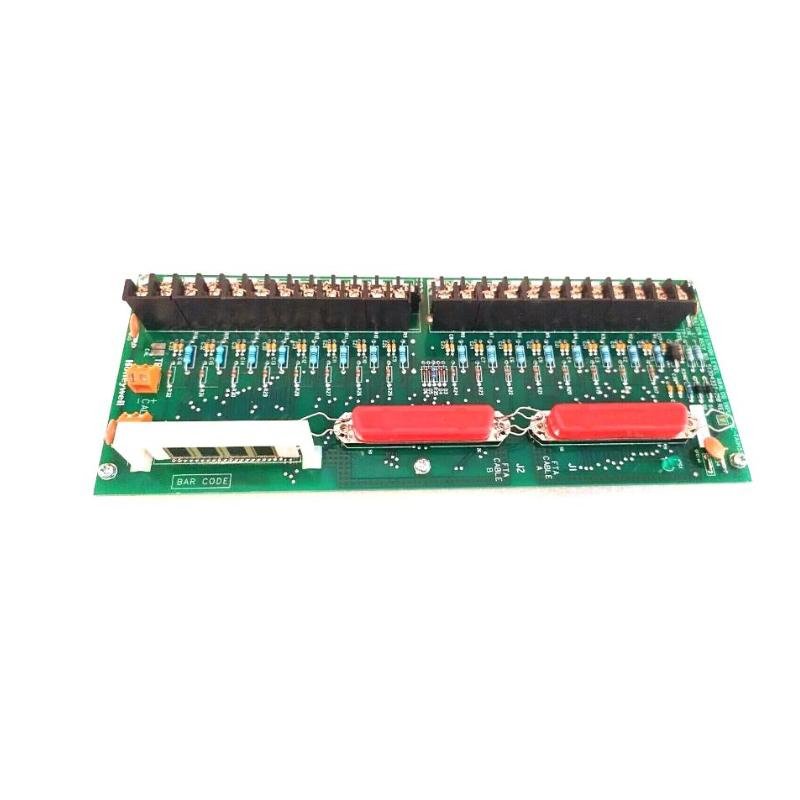

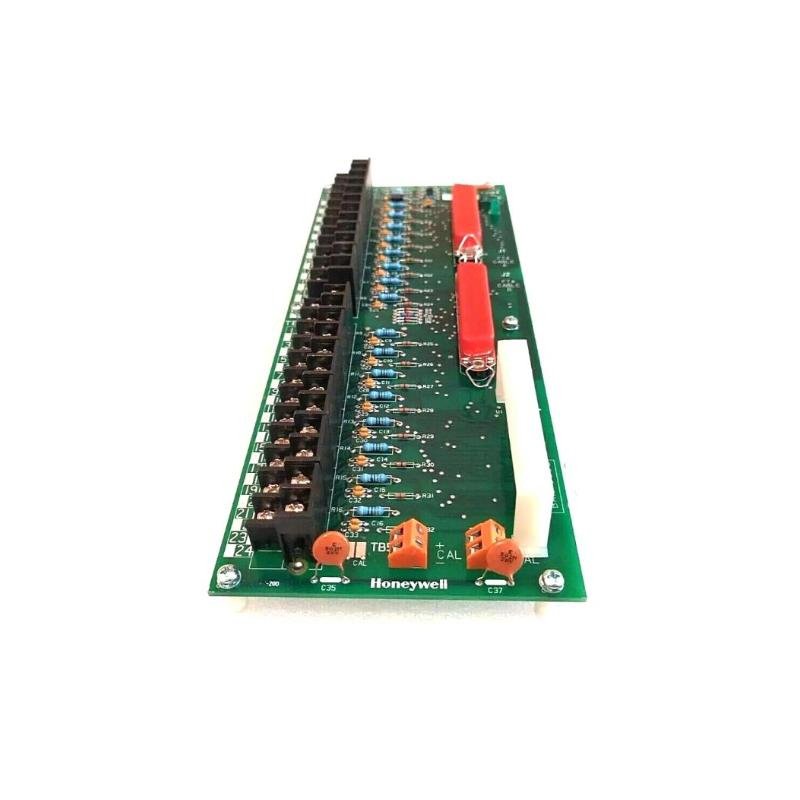

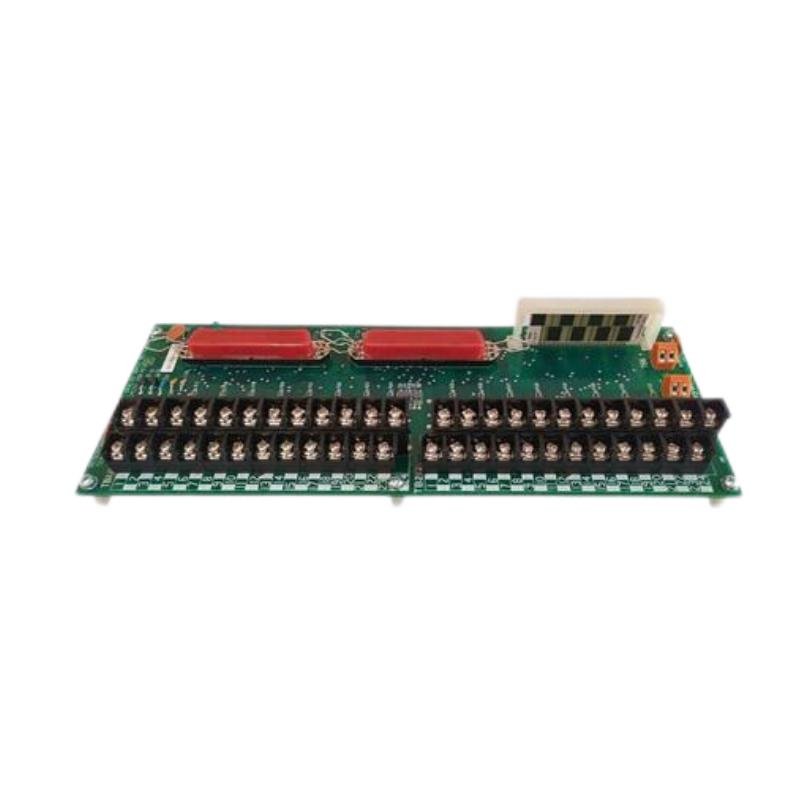

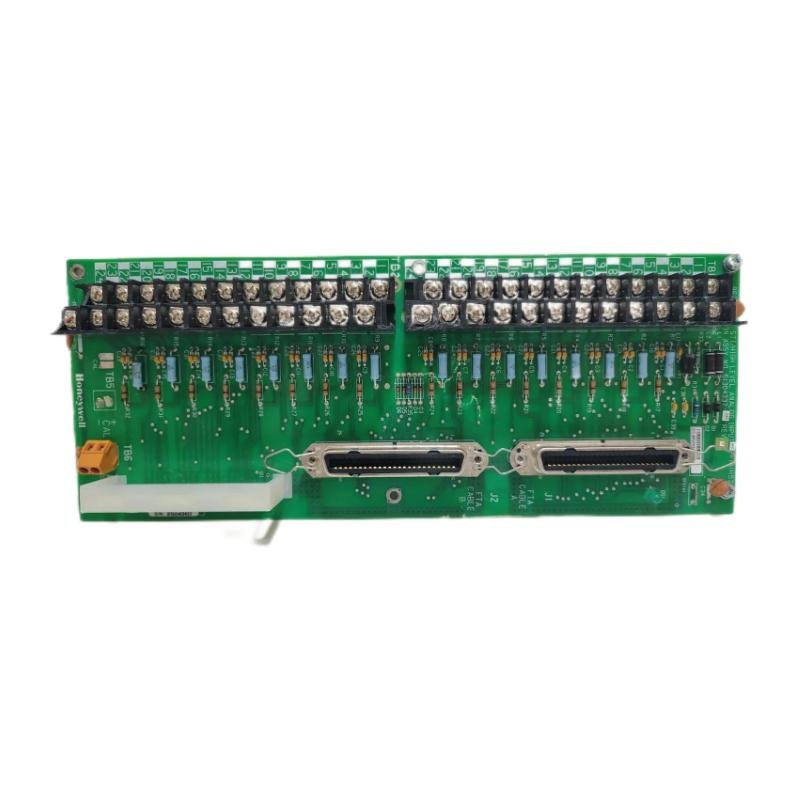

Honeywell MC-TAIH52 51304337-250 High Level Analog Input Module
Manufacturer: Honeywell
Product Number: MC-TAIH52 (51304337-250)
Category: High Level Analog Input Module (Experion PKS)
Number of Channels: 16 (typical)
Input Signal Types: 4-20 mA, 0-10 V
Resolution: 16-bit
System Compatibility: Honeywell Experion Process Knowledge System (PKS)
Product Description
The Honeywell MC-TAIH52 51304337-250 High Level Analog Input Module is a high-performance I/O module designed for use in Honeywell’s Experion Process Knowledge System (PKS). This module is engineered to provide precise analog input capabilities for process control systems. It is optimized for applications requiring high accuracy and reliability in measuring signals from field devices such as transmitters, sensors, and controllers. The MC-TAIH52 module supports a wide range of input signal types, ensuring seamless integration with existing control systems.
Key Features
-
Wide Input Range–Supports a broad range of high-level analog signals (0-10 VDC, 4-20 mA) for versatile compatibility.
-
High Accuracy–Features high-resolution input channels for precise measurement and control.
-
Signal Isolation–Built-in isolation between input channels and system to protect against electrical noise and ground loops.
-
Configurable Calibration–Easy calibration to accommodate various input types and field device requirements.
-
Enhanced Diagnostics–Integrated diagnostics for real-time health monitoring of the module and connected devices.
-
Seamless Integration–Fully compatible with Honeywell’s Experion PKS and other Honeywell control systems.
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 137 x 51 x 151 mm |
| Weight | 0.5 kg |
Electrical Characteristics
| Item | Specification |
|---|---|
| Power Supply | 24 VDC |
| Input Type | 0-10 VDC, 4-20 mA (configurable) |
| Input Impedance | > 1 MΩ |
| Current Draw | Approx. 100 mA |
| Accuracy | ±0.1% of full scale |
Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | -20°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5%–95% non-condensing |
| Environmental Seal | IP20 |
System Compatibility
| Item | Specification |
|---|---|
| Compatible Systems | Honeywell Experion PKS, Legacy systems |
| Mounting | DIN rail or panel mounting |
Industry Applications
-
Oil & Gas–Used for monitoring high-level process parameters like pressure and temperature in pipelines and refinery units.
-
Power Generation–Measures critical signals such as flow, temperature, and pressure in turbine and boiler control.
-
Chemical Manufacturing–Provides accurate data from process variables for chemical reactors and mixers.
-
Pharmaceuticals–Measures high-level analog signals for batch processes and regulatory compliance.
-
Water Treatment–Monitors pressure, level, and flow in water treatment plants.
The Honeywell MC-TAIH52 51304337-250 High Level Analog Input Module offers reliable, high-accuracy analog input for demanding industrial applications. Its broad input compatibility, precision, and seamless integration make it a key component in efficient and safe process control systems.
