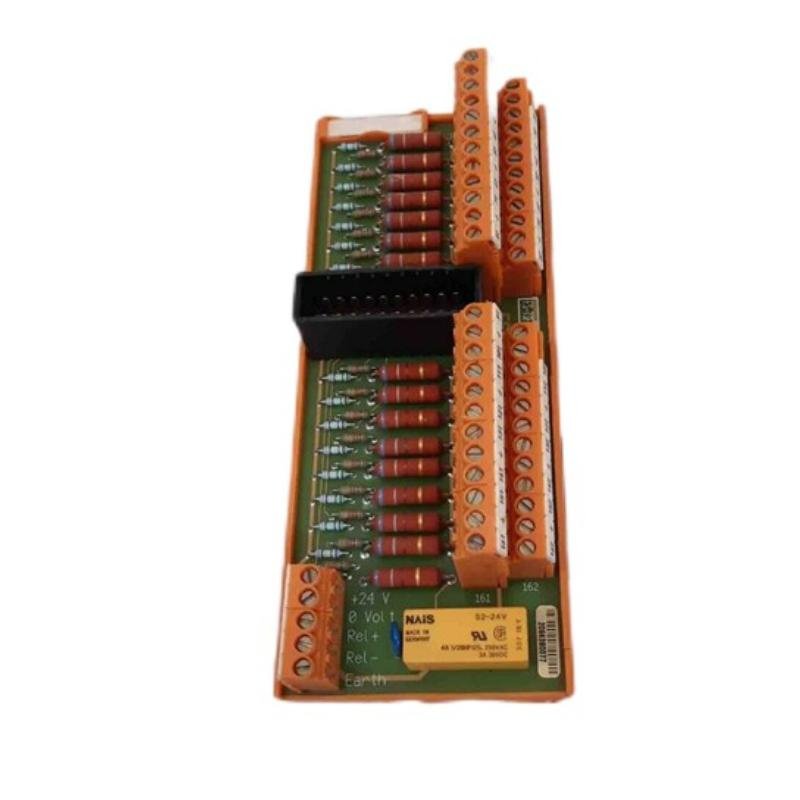

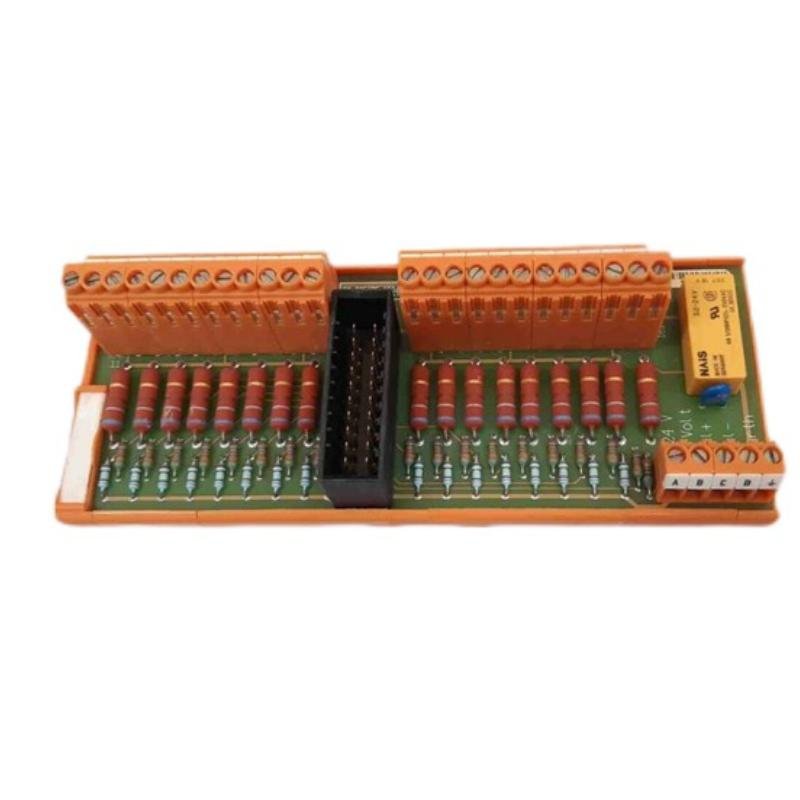

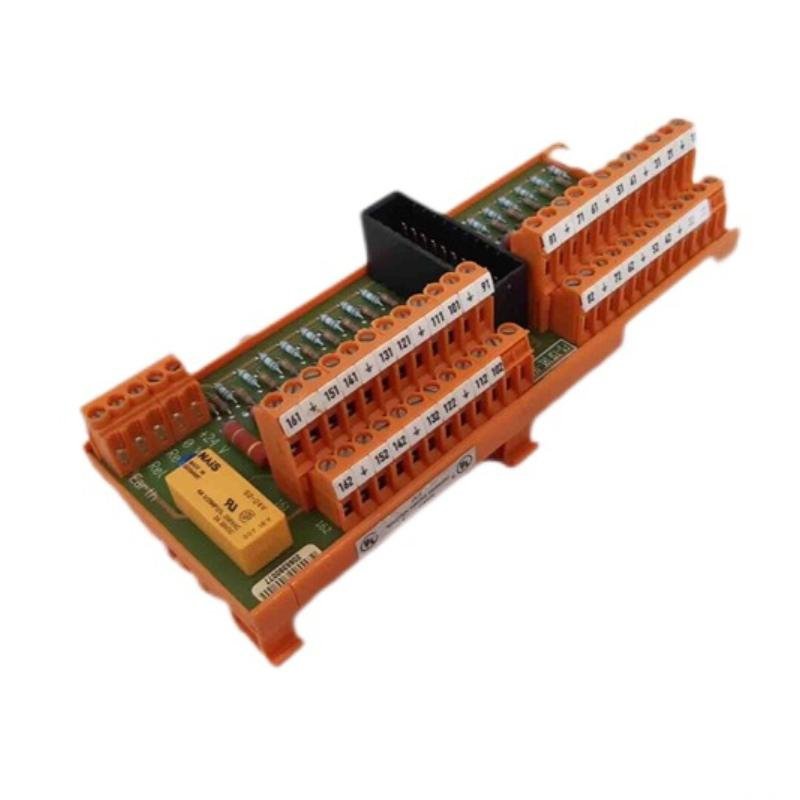

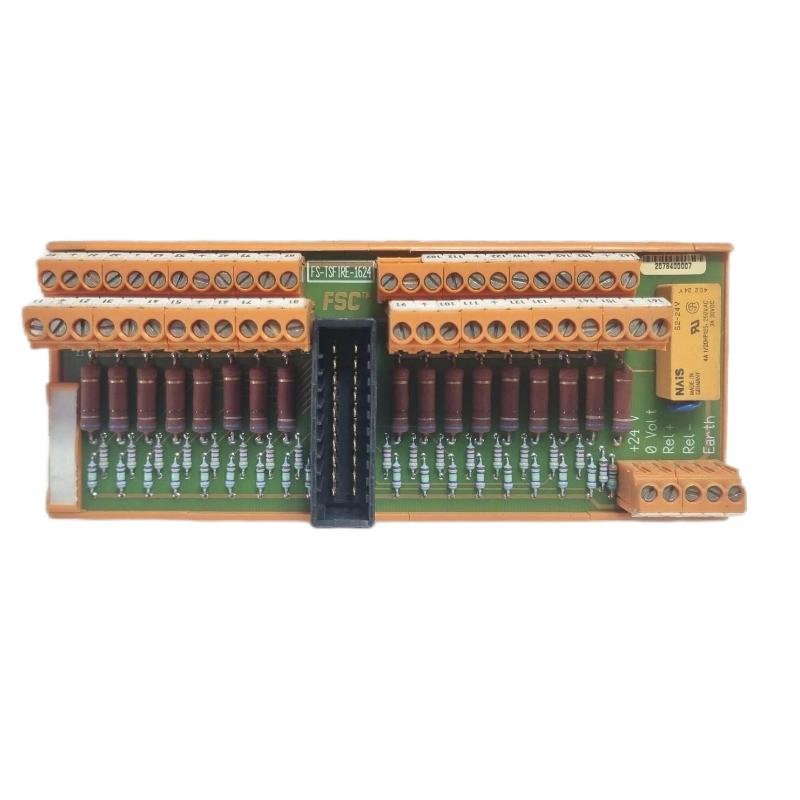

Honeywell FS-TSFIRE-1624 Safety Fire Detector Input FTA
Manufacturer: Honeywell
Product Number: FS-TSFIRE-1624
Category: Safety Fire Detector Input FTA (Safety Instrumented Systems)
System Compatibility: Honeywell safety instrumented systems (SIS)
Function: Critical interface module for monitoring fire detection inputs in high-integrity safety applications
Product Description
The Honeywell FS-TSFIRE-1624 Safety Fire Detector Input FTA (Field Termination Assembly) is a critical interface module used in safety instrumented systems (SIS) for monitoring fire detection inputs. Designed for high-integrity and high-availability safety applications, this module enables accurate and fail-safe signal acquisition from field-mounted fire detectors.
Engineered to meet demanding safety and environmental standards, the FS-TSFIRE-1624 ensures seamless integration with Honeywell’s Safety Manager systems and provides robust electrical isolation, fault diagnostics, and real-time status indication. Its modular design and secure connections simplify installation and maintenance in mission-critical fire and gas detection systems.
Key Features
-
Fire Detector Interface: Specifically designed for input signals from flame, smoke, and heat detectors.
-
Safety-Certified: Suitable for SIL-rated systems and compliant with relevant fire safety standards.
-
Electrical Isolation: Protects control systems from field-related disturbances and faults.
-
Diagnostic Indicators: Equipped with LED indicators for channel and power status monitoring.
-
High Channel Density: Supports multiple detector inputs within a compact form factor.
-
Secure Termination: Field-wiring terminals ensure robust and vibration-resistant connections.
-
Hot-Swappable: Allows module replacement without shutting down the system, increasing uptime.
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 160 × 120 × 40 mm |
| Weight | 0.75 kg |
General Information
| Item | Specification |
|---|---|
| Model | FS-TSFIRE-1624 |
| Manufacturer | Honeywell |
| Installation | Field Termination Panel (FTA) Mountable |
| Compatible Systems | Honeywell Safety Manager |
| Operating Temp | -20°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Power Supply | Supplied via system power bus |
| Cooling Method | Natural convection |
Electrical Characteristics
| Item | Specification |
|---|---|
| Input Type | Contact closure / 24 V DC detector signals |
| Number of Channels | 16 input channels |
| Rated Voltage | 24 V DC |
| Input Impedance | > 10 kΩ |
| Isolation | Channel-to-system optical isolation |
| EMC Compliance | IEC 61000-4-2, IEC 61000-4-3 |
| Safety Compliance | SIL2/3 Certified per IEC 61508 |
Industry Applications
-
Oil & Gas: Integrated into fire and gas detection systems on offshore platforms and refineries.
-
Power Generation: Fire monitoring in control rooms, switchgear, and turbine enclosures.
-
Petrochemical: Interfaces with critical fire detection systems across hazardous processing zones.
-
Pharmaceutical: Fire alarm integration in controlled and clean room manufacturing environments.
-
Data Centers: Used in critical infrastructure protection systems for fire response automation.
-
Industrial Manufacturing: Centralized fire detection input across production lines and storage areas.
The Honeywell FS-TSFIRE-1624 Safety Fire Detector Input FTA provides a reliable and secure interface for fire detection systems in high-integrity industrial applications. With robust design, advanced diagnostics, and integration-ready architecture, it ensures consistent performance in environments where safety is paramount.
