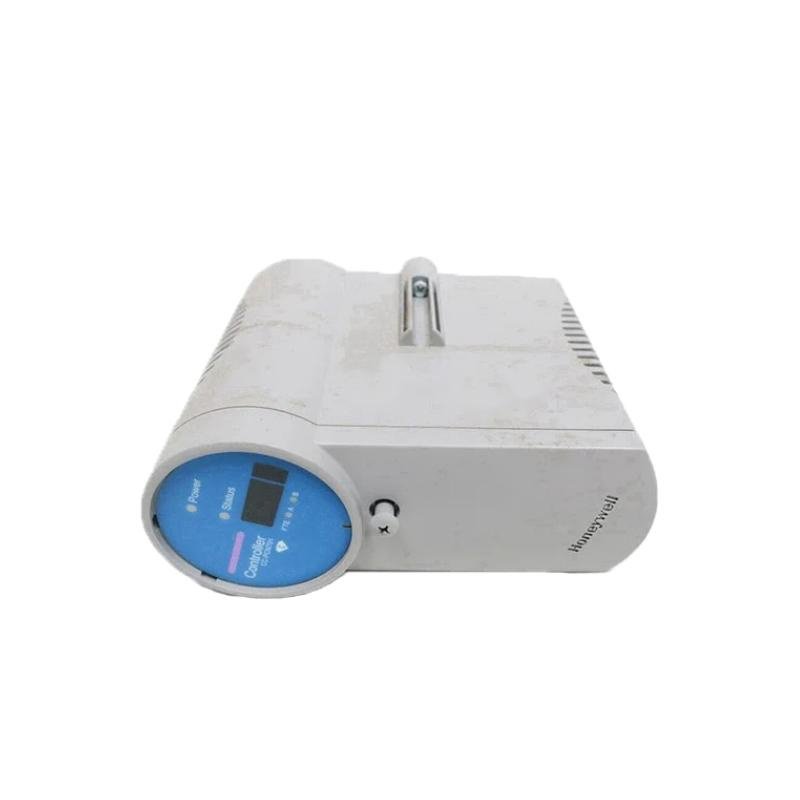

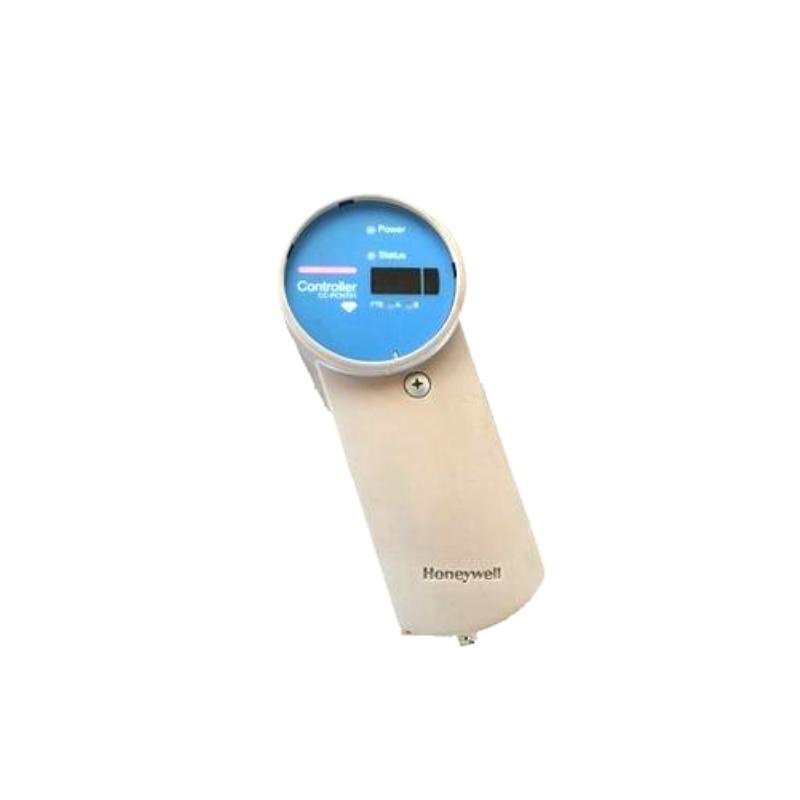

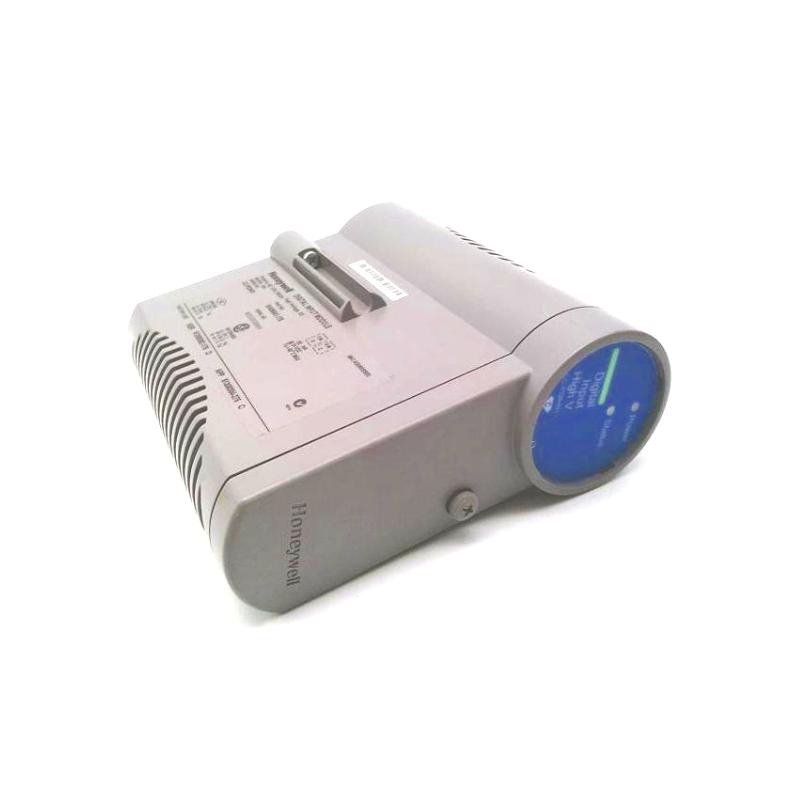

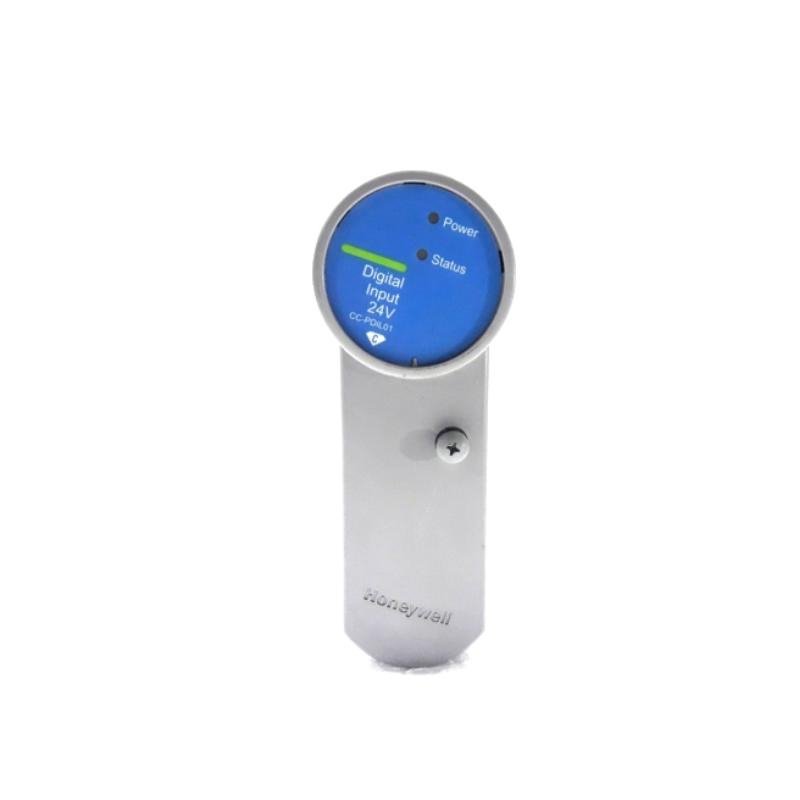

Honeywell CC-PDIH01 51405041-175 Digital Input Modules

The Honeywell CC-PDIH01 51405041-175 Digital Input Module is a high-performance I/O module designed to provide reliable digital signal input for industrial automation systems. Part of Honeywell’s Experion Process Knowledge System (PKS), this module supports up to 16 discrete input channels, enabling real-time monitoring and control of digital signals in mission-critical applications. The CC-PDIH01 module is ideal for environments requiring high reliability and accuracy, such as process control, safety, and energy management systems.

Key Features

• Multiple Digital Inputs–Supports up to 16 isolated digital input channels for flexible and scalable process monitoring

• High Signal Integrity–Provides reliable and accurate digital signal input, ensuring accurate status monitoring and control

• Wide Input Range–Accepts a broad range of input signal types, including dry contact, and 24 VDC logic levels, ensuring compatibility with various devices

• Isolated Inputs–Channel-to-channel and channel-to-system isolation protect against signal interference, maintaining system integrity

• Built-in Diagnostics–Features integrated diagnostic tools with real-time fault detection for quick troubleshooting and minimal downtime

• Hot-Swappable–Can be replaced without system shutdown, minimizing disruption to ongoing operations

• Compact Design–Space-efficient, enabling easy installation in tight enclosures while maintaining system performance

Technical Specifications

Dimensions and Weight

Electrical Characteristics

Environmental Characteristics

System Compatibility

Industry Applications

• Process Control–Ideal for monitoring digital signals in continuous process industries such as oil and gas, chemicals, and power generation

• Safety Systems–Provides reliable digital input for safety-critical applications, ensuring accurate status monitoring of emergency shutdown systems

• Energy Management–Used to monitor and control digital inputs from energy metering and monitoring equipment, enabling efficient energy management

• Water Treatment–Ensures accurate monitoring and control of digital signals in water and wastewater treatment plants

• Manufacturing Automation–Supports precise input from various manufacturing and control systems, contributing to automated production lines and quality control

The Honeywell CC-PDIH01 51405041-175 Digital Input Module offers a highly reliable and flexible solution for digital signal acquisition in industrial automation systems. Its high signal integrity, diagnostic capabilities, and easy integration with Honeywell’s Experion PKS make it an ideal choice for applications requiring high reliability and performance.
