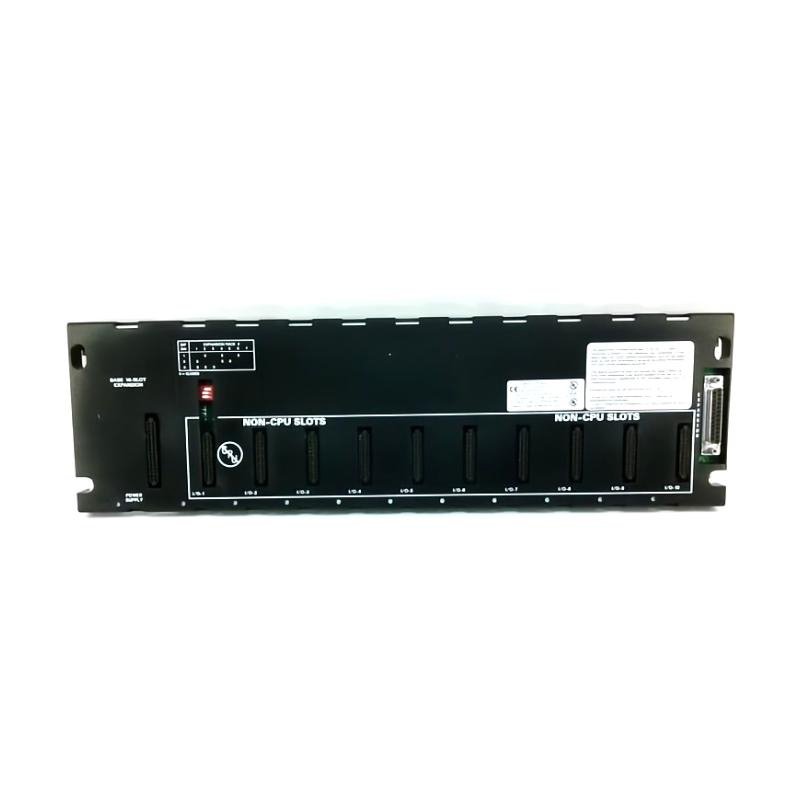

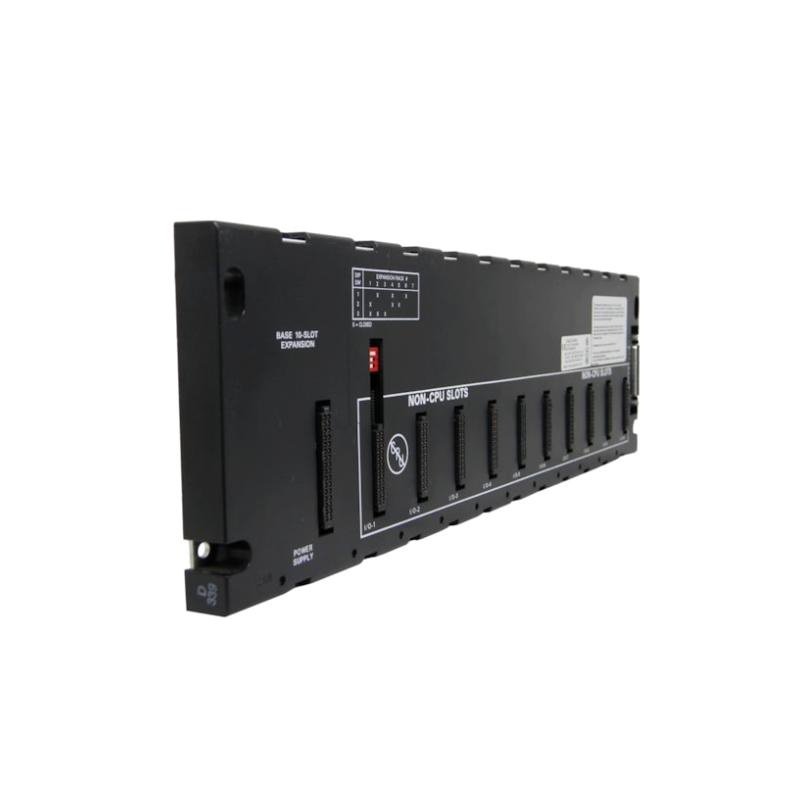

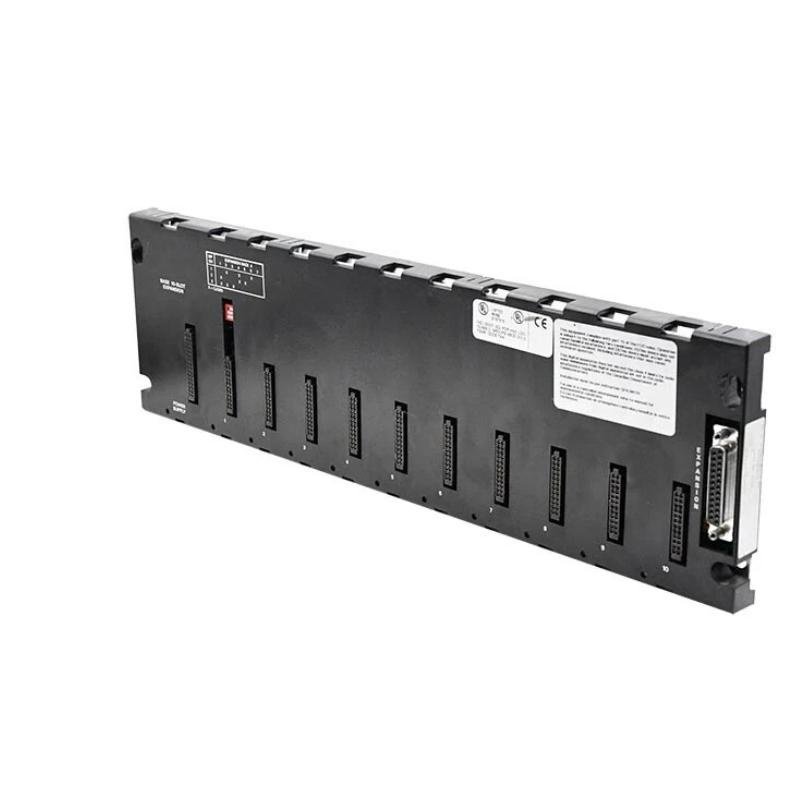

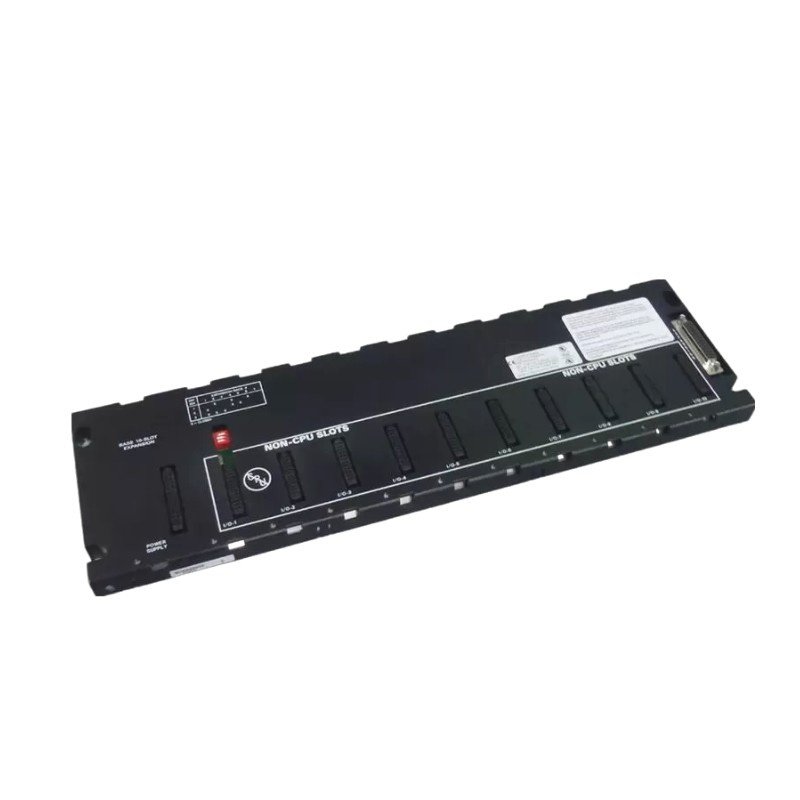

GE Fanuc IC693CHS392 10-slot Expansion Base
Manufacturer: GE Fanuc
Product Number: IC693CHS392
Category: 10-slot Expansion Base (Series 90-30 PLC)
Number of Slots: 10
System Compatibility: GE Fanuc Series 90-30 PLC system
Function: Provides additional module slots to extend system capabilities
Product Description
The GE Fanuc IC693CHS392 is a 10-slot expansion base designed for use with the Series 90-30 Programmable Logic Controller (PLC) system. This expansion chassis provides additional module slots to extend system capabilities and is ideal for applications requiring scalable I/O configurations. The IC693CHS392 supports installation of various I/O, power supply, CPU, and specialty modules, enabling flexible control system design. It connects to the main or other expansion racks via expansion cables and is engineered for reliable performance in industrial automation environments.
Key Features
-
10 Module Slots–Accommodates up to 10 I/O and specialty modules
-
Flexible Expansion–Easily integrates into Series 90-30 PLC configurations
-
Rugged Construction–Built to operate reliably in harsh industrial environments
-
Plug-and-Play Installation–Simplified wiring and module mounting
-
Compatible with Multiple Modules–Supports digital, analog, and communication modules
-
DIN-Rail or Panel Mounting–Versatile installation options for control cabinets
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 443 x 130 x 141.9 mm |
| Weight | 0.93 kg |
Electrical Characteristics
| Item | Specification |
|---|---|
| Module Capacity | 10 slots |
| Backplane Current | 2.0 A maximum (via power supply module) |
| Power Supply Support | External module (not included) |
| Expansion Interface | Supports remote and local base expansion |
Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5%–95% RH (non-condensing) |
| Enclosure Rating | NEMA-rated enclosure (cabinet-mounted) |
| Vibration/Shock | IEC 60068-2 compliant |
System Compatibility
| Item | Specification |
|---|---|
| PLC Platform | GE Fanuc Series 90-30 |
| Module Type | Expansion Base Unit |
| Expansion Cable | Supports IC693CBL3x series cables |
Industry Applications
-
Industrial Automation Systems–Enhances flexibility and scalability of control systems
-
Manufacturing Plants–Supports high I/O density for production line control
-
Water & Wastewater Facilities–Expands input/output range for remote stations
-
Material Handling Systems–Integrates sensors, actuators, and motion modules
-
Energy and Utilities–Enables modular deployment in substation automation
The GE Fanuc IC693CHS392 10-slot Expansion Base offers robust, modular expansion capabilities for Series 90-30 PLCs, delivering reliable performance and adaptability for growing industrial control systems.
