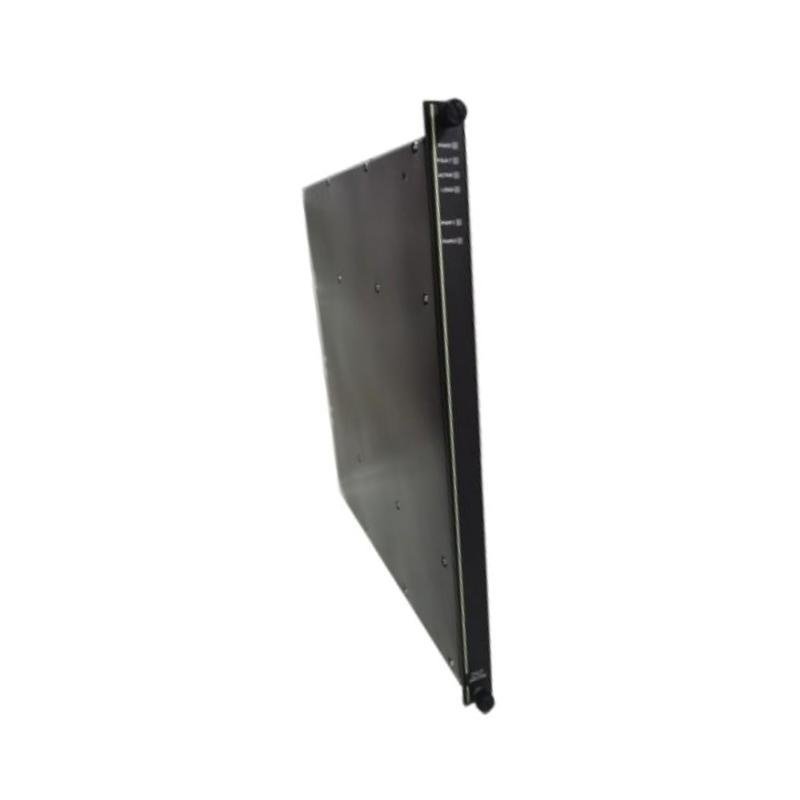

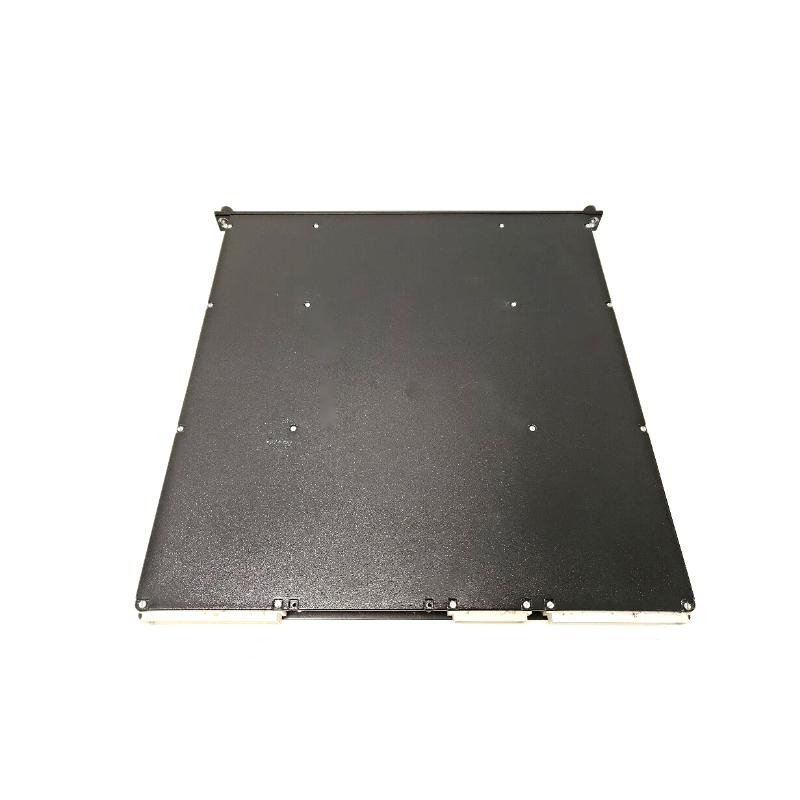

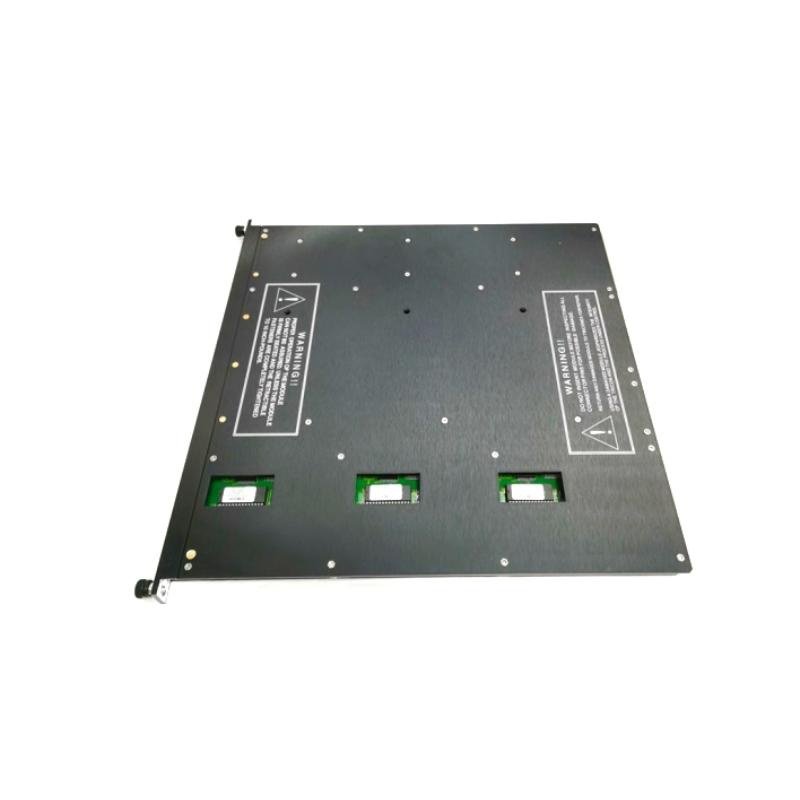

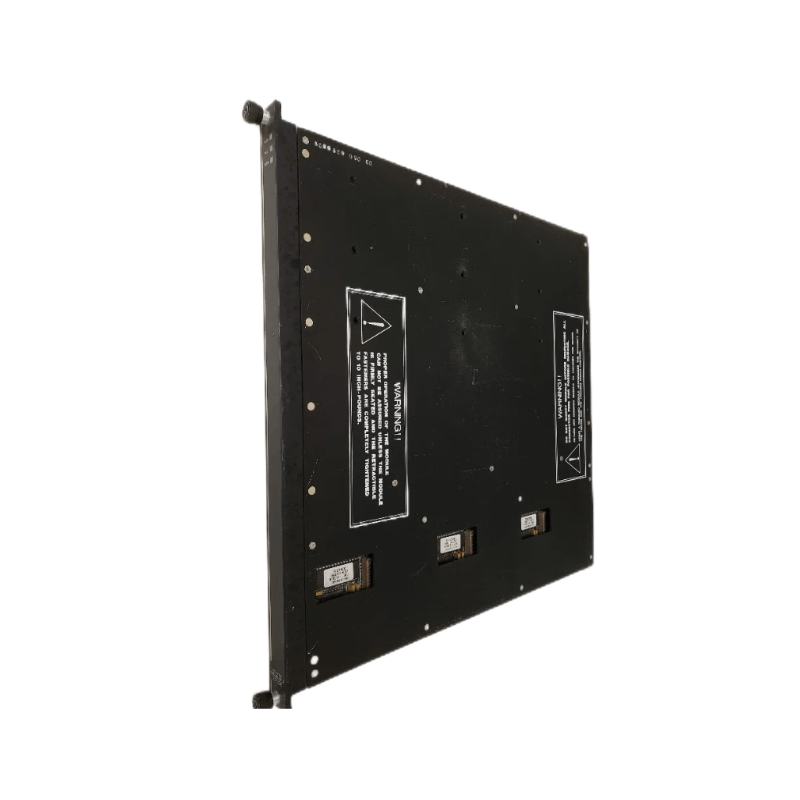

Triconex 3703E Input Module

The Triconex 3703E Input Module is designed for use in Tricon™ safety and control systems, providing reliable and accurate digital input signal processing in critical industrial applications. This high-integrity module supports a wide range of digital input signals and is engineered to meet the stringent safety standards required in industries such as oil & gas, power generation, and chemical processing. With features such as built-in diagnostics, redundancy support, and fault tolerance, the 3703E Input Module ensures robust and safe operation for mission-critical applications.

Key Features

• Multiple Digital Inputs–Supports up to 32 digital inputs per module, enabling efficient signal management in large-scale control systems

• High Safety Integrity–Designed to meet high safety standards, including SIL 3 (Safety Integrity Level 3) for critical control applications

• Redundant Configuration–Supports redundant configurations for high-availability applications, enhancing system reliability and minimizing downtime

• Built-In Diagnostics–Features comprehensive self-testing and fault detection capabilities for real-time health monitoring and easy troubleshooting

• Wide Voltage Range–Compatible with a wide range of input voltages, ensuring compatibility with various sensors and devices

• Compact and Efficient–Optimized for space and energy efficiency, making it suitable for compact control enclosures and systems with limited space

• High Fault Tolerance–Ensures continued operation even in the event of a module failure, maintaining system integrity and safety

Technical Specifications

Dimensions and Weight

Electrical Characteristics

Environmental Characteristics

System Compatibility

Industry Applications

• Oil & Gas–Provides safe and reliable monitoring of critical signals such as pressure switches, flowmeters, and emergency stop circuits in upstream and downstream operations

• Power Generation–Supports the safe monitoring of digital signals from turbine control systems, generator protection, and safety shutdown systems

• Chemical Processing–Ensures secure operation of safety-critical input signals in chemical reactors, pressure relief systems, and emergency shutdown circuits

• Pharmaceutical Manufacturing–Enables precise control of digital signals in pharmaceutical production processes to ensure compliance with regulatory standards

• Water Treatment–Facilitates reliable monitoring of digital inputs in water treatment facilities, such as valve positions, alarms, and safety interlocks

The Triconex 3703E Input Module offers high-integrity digital input processing for mission-critical industrial applications. With its safety certifications, redundant configurations, and comprehensive diagnostic capabilities, this module is essential for any high-availability safety system that requires reliable digital signal management.
