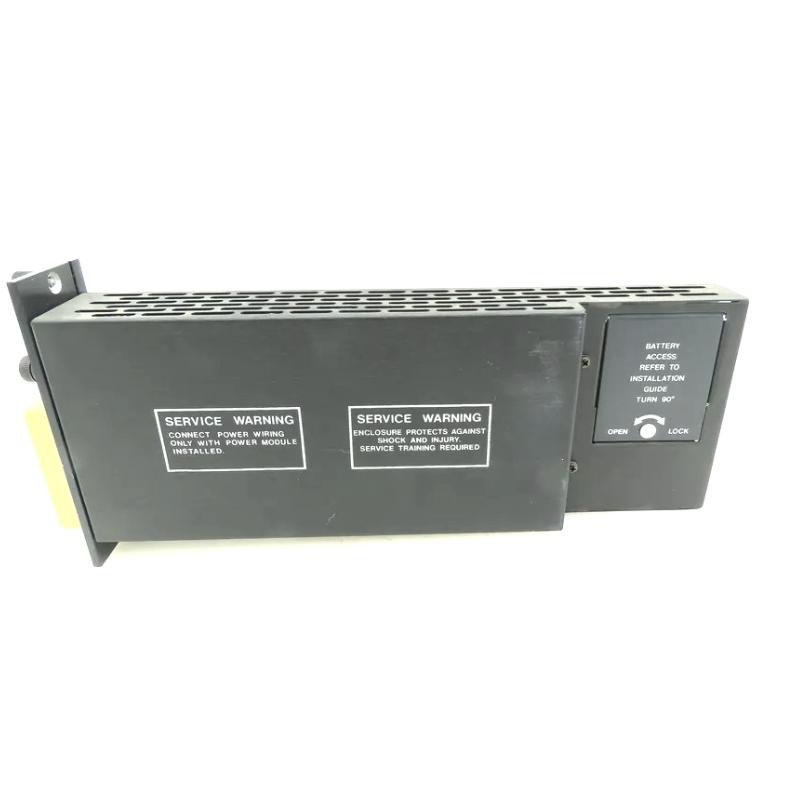

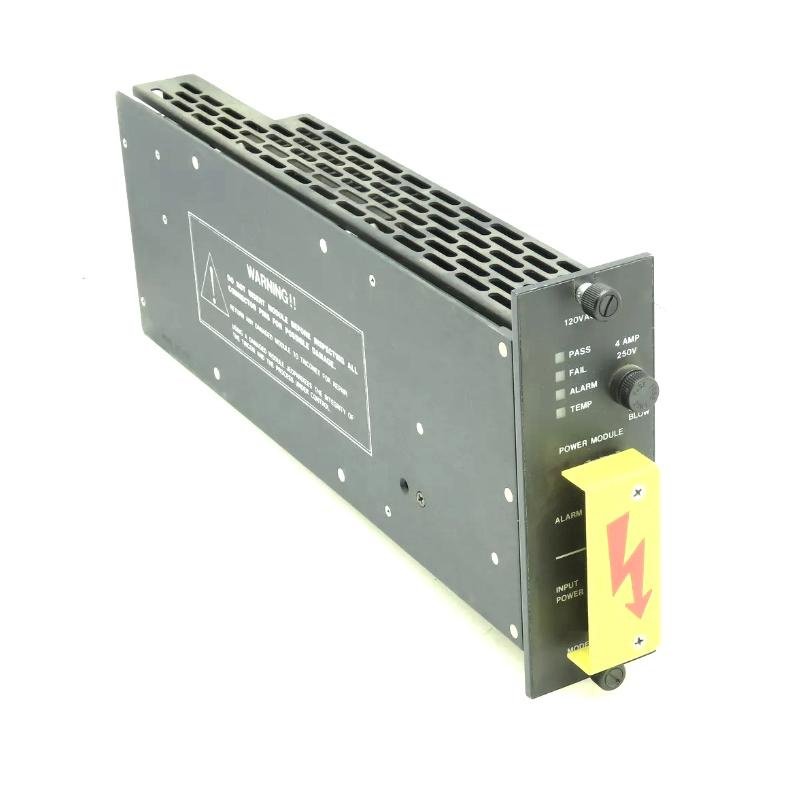

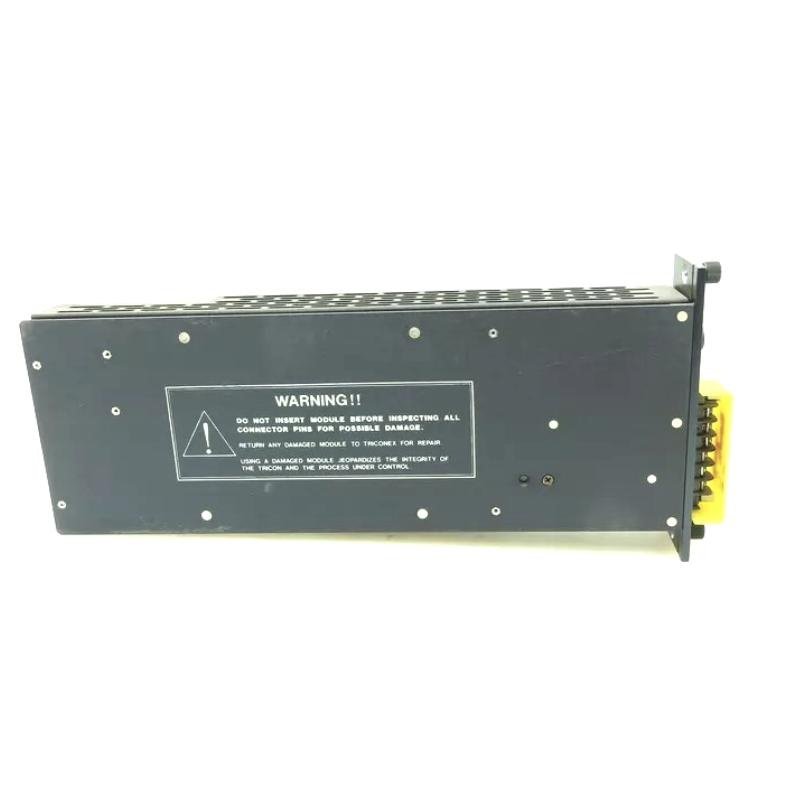

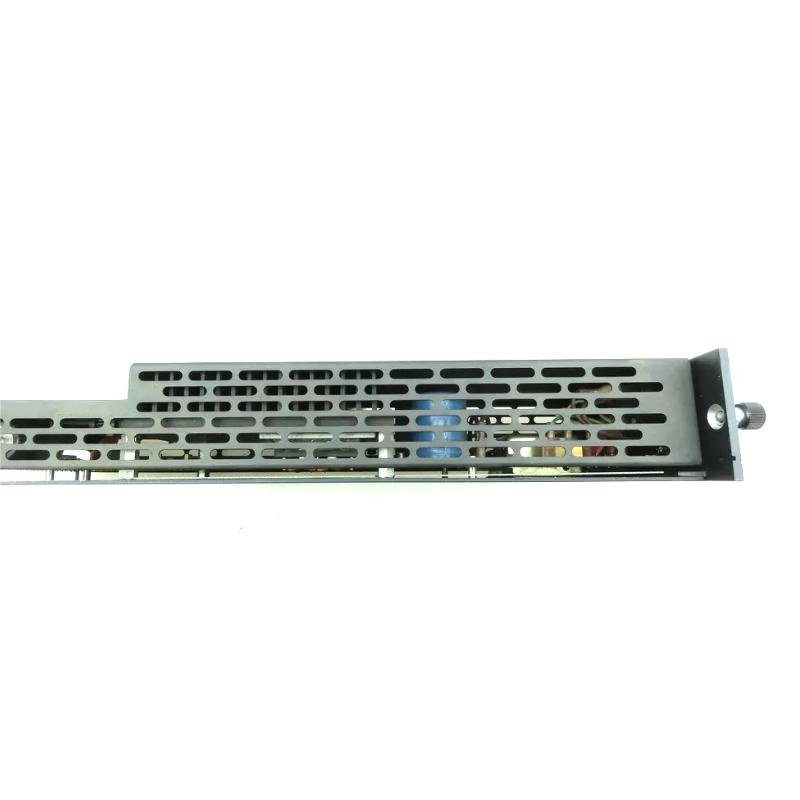

Triconex 8305E power supply module
Manufacturer: Triconex (Schneider Electric)
Product Number: 8305E
Category: Power Supply Module (Triconex Safety Instrumented System)
System Compatibility: Triconex SIS
Function: Ensures reliable and stable power supply to critical system components
Product Description
The Triconex 8305E is a power supply module designed for use in the Triconex Safety Instrumented System (SIS). It ensures a reliable and stable power supply to critical system components, thereby maintaining the safety and efficiency of industrial processes. The module supports hot-swapping, allowing for maintenance without system shutdown, and features overload protection to safeguard against overcurrent or overvoltage conditions.
Main Features
-
High efficiency with low power consumption
-
Overload protection to prevent damage from overcurrent or overvoltage
-
Hot-swappable design for easy maintenance
-
Redundant design to ensure continuous operation in case of failure
-
Diagnostic functions for easier troubleshooting
-
Wide operating temperature range from -40°C to 85°C
-
Compact and lightweight design suitable for various industrial applications
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 173 × 117 × 48 mm |
| Weight | 0.4 kg |
General Information
| Item | Specification |
|---|---|
| Manufacturer | Triconex |
| Model Number | 8305E |
| Product Type | Power Supply Module |
| Mounting | DIN rail or rack mount |
| Operating Temp | -40°C to +85°C |
| Storage Temp | -40°C to +85°C |
Electrical Characteristics
| Item | Specification |
|---|---|
| Input Voltage | 90-132 VAC, 180-254 VAC |
| Output Voltage | 24 VDC |
| Output Current | 4 A |
| Power Consumption | 100 W |
Environmental Specifications
| Item | Specification |
|---|---|
| Humidity Range | 5-95% RH (non-condensing) |
| Vibration | 2 g, 5-500 Hz |
| Shock Resistance | 30 g, 11 ms |
Industry Applications
The Triconex 8305E is widely used in various industries, including:
-
Oil & Gas: Ensuring safe and efficient operations in exploration, drilling, and refining processes.
-
Chemical Processing: Maintaining safety and compliance in chemical production and handling.
-
Power Generation: Protecting critical systems in power plants and substations.
-
Pharmaceuticals: Ensuring compliance with safety standards in drug manufacturing.
-
Water Treatment: Safeguarding processes in water and wastewater treatment facilities.
