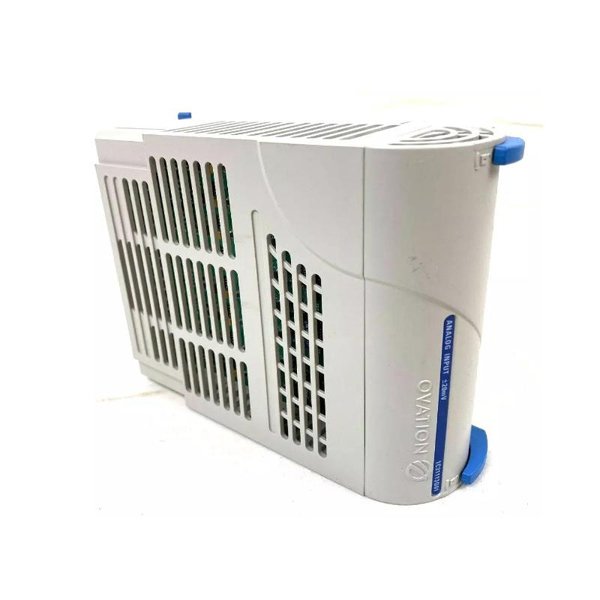

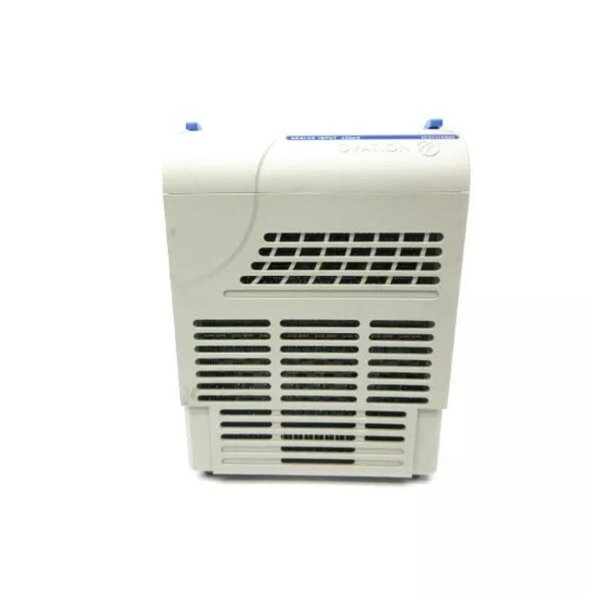

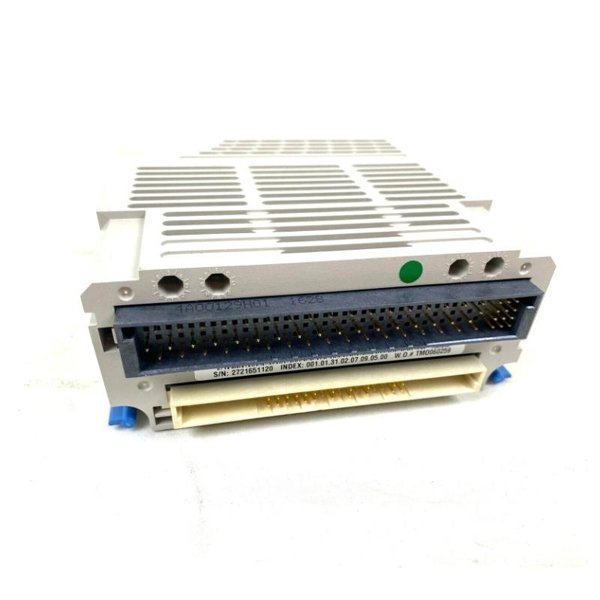

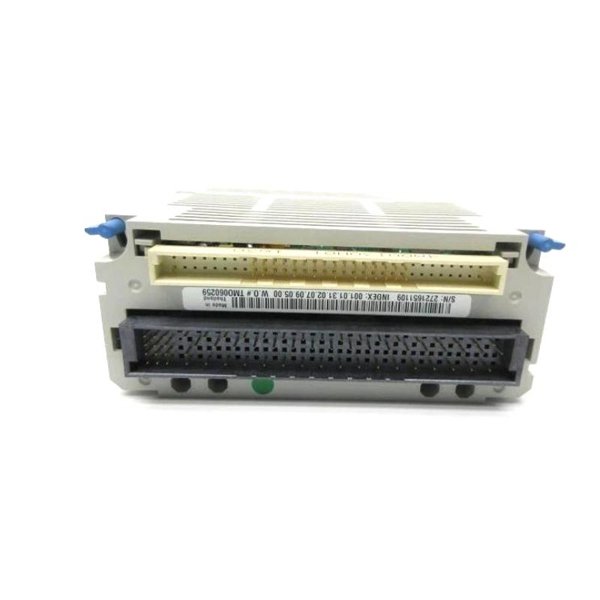

The OVATION 1C31113G01 is a high-performance I/O Termination Base designed for use within Emerson’s OVATION Distributed Control System (DCS). This unit provides a secure and reliable interface for connecting field wiring to I/O modules, ensuring precise signal routing and robust mechanical support. Engineered for durability and efficiency, the 1C31113G01 supports easy installation and optimal electrical connectivity in critical control applications.

Technical Specifications

Applications

• Power generation control systems

• Industrial automation systems

• Chemical processing facilities

• Water and wastewater treatment plants

• Oil & gas and petrochemical control environments

Advantages

• Seamless integration with Emerson OVATION I/O modules

• Durable construction suitable for harsh industrial environments

• Simplified wiring design reduces installation time

• Secure mechanical fit ensures reliable long-term operation

• High-density terminal layout optimizes space efficiency

• Minimal maintenance requirements and extended service life

FAQs

Q1: What is the function of the 1C31113G01 in an OVATION DCS?

A1: It serves as the interface between field wiring and I/O modules, enabling structured signal routing.

Q2: Can this termination base be used with other Emerson DCS platforms?

A2: It is specifically designed for the OVATION system and may not be compatible with other Emerson platforms.

Q3: Is DIN rail mounting supported for this model?

A3: Yes, the 1C31113G01 can be mounted on a DIN rail or a panel.

Q4: What kind of terminals are used for wiring?

A4: Screw-type terminals are used for secure and stable wire connections.

Q5: What is the recommended operating temperature range?

A5: The unit operates within a temperature range of -20°C to +60°C.

Q6: Is the base hot-swappable?

A6: No, power should be removed before disconnection or replacement to ensure safety.

Q7: Does this unit require regular maintenance?

A7: Minimal maintenance is needed due to its rugged design and passive function.

Q8: What material is the enclosure made from?

A8: It is built from industrial-grade thermoplastic for strength and insulation.

Q9: Can it be used in high-vibration environments?

A9: Yes, it is designed for robust performance even in high-vibration settings.

Q10: What standards does it comply with?

A10: It adheres to industrial control system standards for safety and performance.
