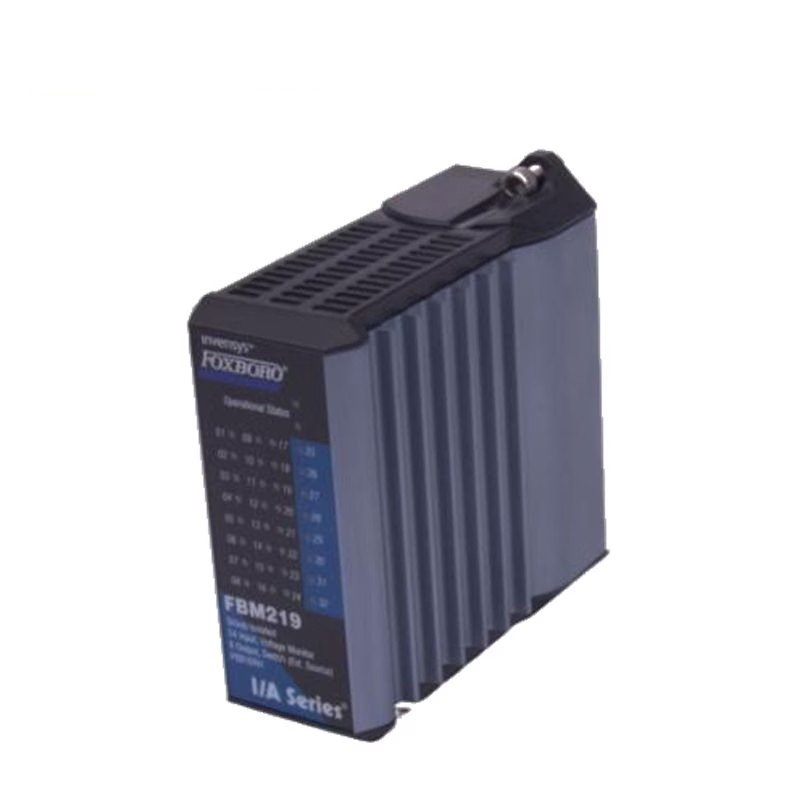

The Foxboro FBM219 P0916RH is a discrete I/O module designed for reliable control and monitoring of digital input and output signals in industrial automation systems. It is part of the Foxboro Evo Process Automation System and is suitable for applications across process control, manufacturing, and building automation. The module provides high-quality performance with features like voltage monitoring, group isolated inputs, and visual LED indicators.

Technical Specifications

• Manufacturer: Foxboro (Schneider Electric)
• Model Number: FBM219 P0916RH
• Input Channels: 24 discrete input channels
• Output Channels: 8 discrete output channels
• Input Voltage Range: 15 to 60 VDC, 120 V AC/125 V DC, 240 V AC
• Output Voltage:
  • 30 V DC at 0.25 A to 5 A
  • 125 V DC at 0.6 A
  • 120 V AC at 5 A
  • 240 V AC at 5 A
• Operating Temperature Range: -40 to 70°C (-40 to 158°F)
• Dimensions: 10.5 cm x 10 cm x 4 cm
• Weight: 0.3 kg
