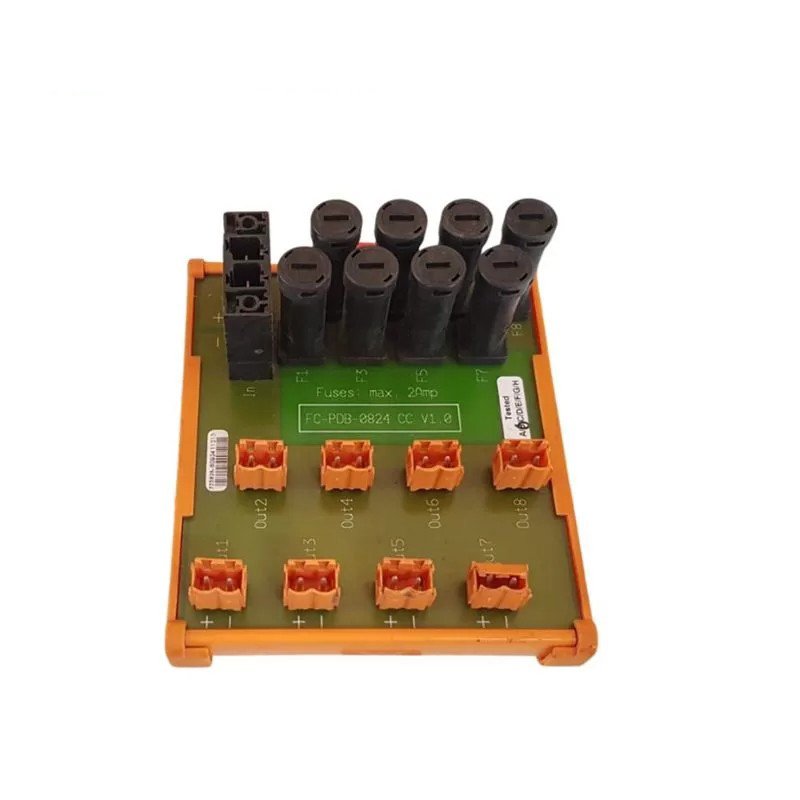

Honeywell FC-PDB-0824 Power Distribution Board

The HONEYWELL FC-PDB-0824 is an 8-channel power distribution board designed for industrial control systems. It provides a regulated 24 VDC power supply to connected devices. Moreover, it features overload protection and short circuit protection.

Features

The HONEYWELL FC-PDB-0824 includes the following features:

• 8-channel power distribution
• 24 VDC regulated output
• 2 A per channel continuous current
• 4 A per channel peak current
• Overload protection
• Short circuit protection
• DIN rail mountable

Specifications

The HONEYWELL FC-PDB-0824 has the following specifications:

• Input voltage: 100-240 VAC, 50/60 Hz
• Output voltage: 24 VDC
• Output current: 2 A per channel continuous, 4 A per channel peak
• Output ripple: < 50 mVpp
• Efficiency: > 85%
• Operating temperature range: -20 to +60 °C
• Storage temperature range: -40 to +85 °C
• Humidity: 0 to 95% RH, non-condensing
• Vibration: 5 g rms, 10 to 500 Hz
• Shock: 15 g, 11 ms half-sine
• Dimensions: 120 x 80 x 35 mm
• Weight: 300 g

Applications

The HONEYWELL FC-PDB-0824 is commonly used in various industrial control applications, such as:

• Programmable logic controllers (PLCs)
• Human-machine interfaces (HMIs)
• Sensors and actuators
• Industrial robots
• Conveyor systems
