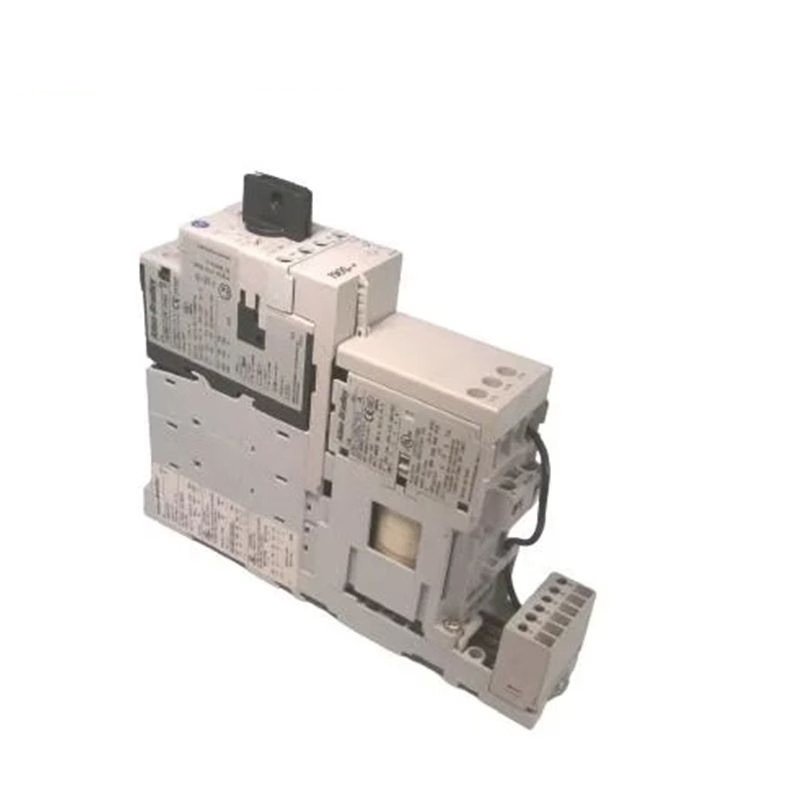

The 190S-ANDJ1-CB40C is a compact combination starter designed to provide efficient motor protection and control. It combines a contactor and an overload relay in one unit, making it ideal for applications with limited panel space. This starter is part of the 190S series, which adheres to IEC standards, ensuring reliability and ease of use. With a current rating of 40 amps and overload protection, it ensures safe and efficient operation in a wide range of industrial applications.

Technical Specifications

• Model: 190S-ANDJ1-CB40C
• Category: Compact Combination Starter with Circuit Breaker
• Current Rating: 40 Amps
• Voltage Rating: 230V AC
• Type: NEMA Size 1
• Mounting: Wall-mounted
• Dimensions: 7.6 in (H) x 5.9 in (W) x 3.3 in (D)
• Weight: 3.00 lbs
• Operating Temperature Range: -40°C to 70°C
• Coil Voltage: Available in multiple options (e.g., 24V DC, 120V AC)
• Overload Protection: Adjustable overload relay with 2.5 – 4.0 Amps range
• Auxiliary Contacts: Built-in auxiliary contacts for signaling or control purposes
• Compliance: IEC standard
