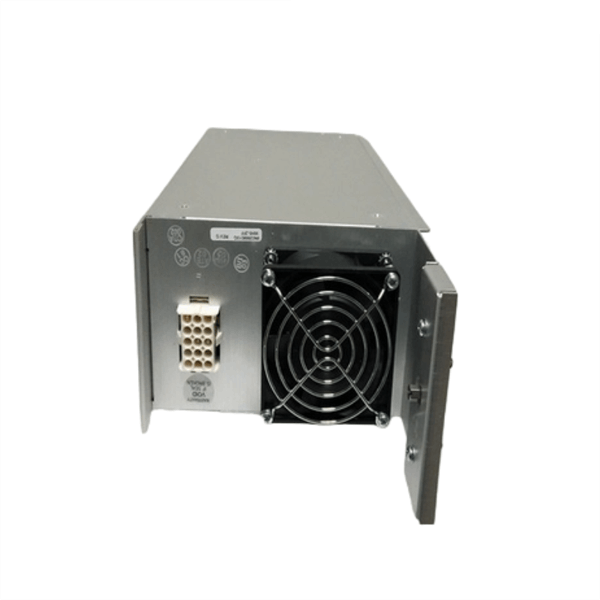

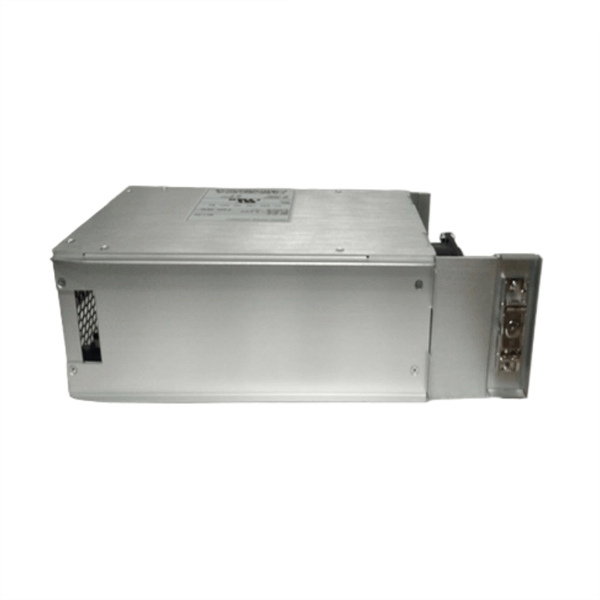

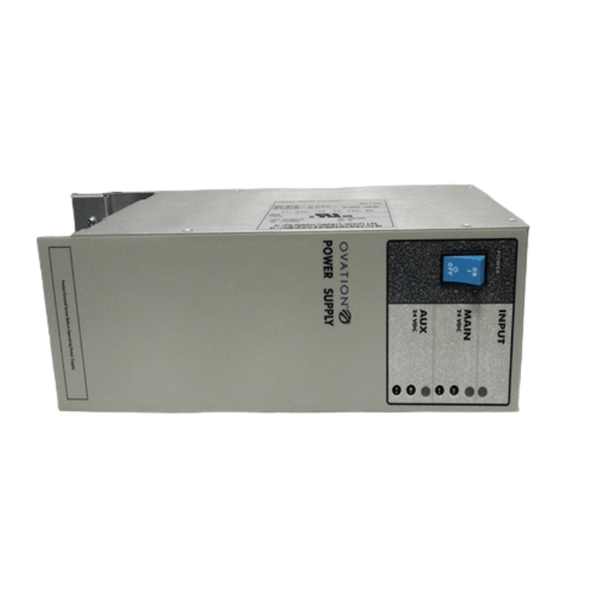

OVATION 1C31099H01 is an integral part of Emerson’s Ovation distributed control system (DCS), designed for high-reliability control in power generation and process industries. The module is typically used for I/O processing and communications, helping to interface field devices with the control system seamlessly. Built to withstand harsh industrial conditions, the 1C31099H01 offers robust performance, high-speed data handling, and compatibility with Ovation’s redundant system architecture.

Technical Specifications

Product Applications

• Power Plants: Widely used in thermal, hydro, and nuclear power stations for process and machine control.

• Chemical Processing Units: For critical monitoring of reactors, tanks, and pipelines.

• Water and Wastewater Treatment: Enables high-precision automation in treatment plants.

• Oil & Gas Industry: Used in SCADA systems for wellhead monitoring and pipeline controls.

• Pharmaceutical Manufacturing: For cleanroom monitoring and batch control.

• Steel and Metal Processing Plants: Controls rolling, cooling, and casting operations.

Product Advantages

• High Reliability: Designed for continuous, mission-critical operation with redundancy support.

• Scalable Architecture: Easily integrates into both small-scale and large-scale Ovation DCS deployments.

• Robust Build: Suitable for industrial environments with temperature and vibration resilience.

• Hot Swappable: Can be replaced without system shutdown, minimizing downtime.

• Real-Time Communication: Fast data acquisition ensures precise control.

• Long-Term Support: Backed by Emerson’s extensive lifecycle and technical support programs.

Frequently Asked Questions (FAQ)

Q1: What is the main role of the 1C31099H01 module in an Ovation DCS?

A1: It primarily functions as a communication or interface module, handling data transfer between the field I/O and the controller.

Q2: Is this module hot-swappable?

A2: Yes, the 1C31099H01 can be replaced without shutting down the system.

Q3: What power supply does it require?

A3: It typically operates on 24V DC, depending on system specifications.

Q4: Can it be used in hazardous industrial environments?

A4: Yes, with proper installation, it meets industry standards for rugged use.

Q5: Does it support redundant operation?

A5: Yes, it supports Ovation’s redundant architecture for fault tolerance.

Q6: Is it compatible with other Emerson Ovation modules?

A6: Yes, it is fully compatible within the Ovation series.

Q7: What maintenance is required for this module?

A7: Minimal; routine inspection and firmware updates if necessary.

Q8: What communication protocol does it support?

A8: It communicates using Ovation DCS protocols, not standard Ethernet or fieldbus.

Q9: Can it be used in standalone control systems?

A9: No, it is designed to function as part of the Ovation DCS ecosystem.

Q10: What are the common failure signs of this module?

A10: Indicators include LED failure signals, communication loss, or process control lags.
