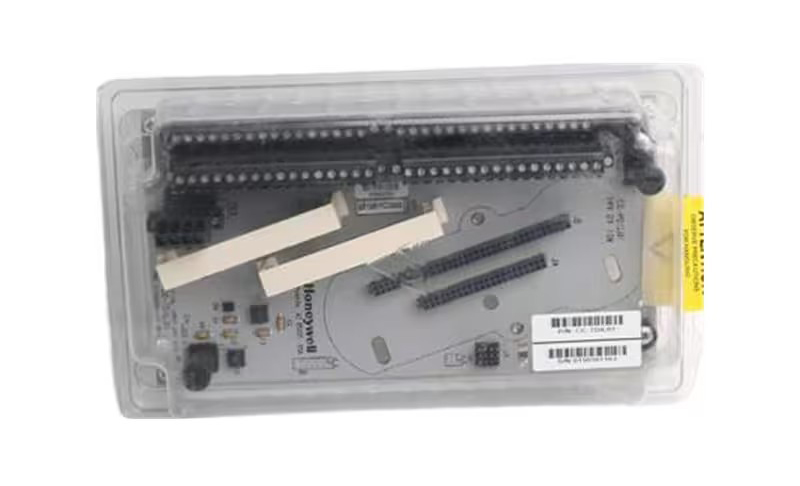

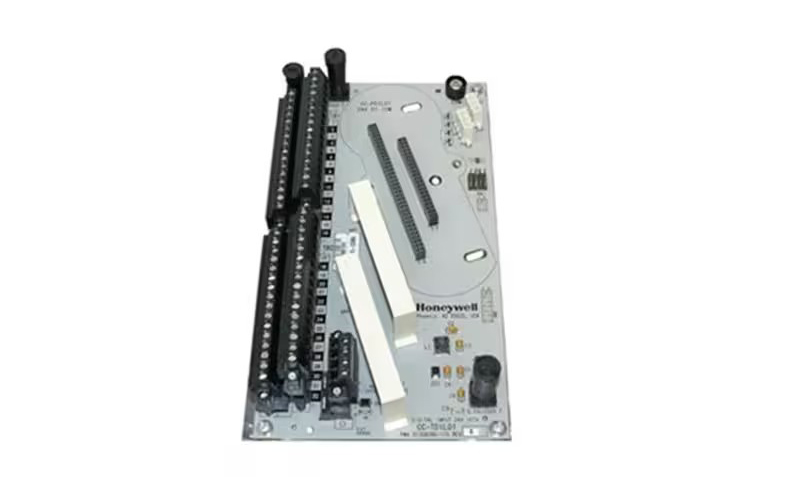

Honeywell CC-TDIL01 51308386-175 Digital Input Module
Manufacturer: Honeywell
Product Number: CC-TDIL01 (51308386-175)
Category: Digital Input Module / IOTA Board
System Platform: Experion PKS Series C
Input Type: 24V DC digital input
Protection Features: Internal short circuit protection, field short-circuit tolerance
Hazardous Area Rating: Division 2 nonincendive / Zone 2 non-arcing
Dimensions: 26 cm × 15.2 cm × 7.5 cm
Weight: 0.5 kg
Function: Field termination and signal acquisition for digital inputs
Application: Process automation, industrial control, safety systems
Product Description
The Honeywell CC-PDIL01 is a digital input module designed for the Experion® Series C Programmable Logic Controller (PLC) system. This module efficiently interfaces with digital sensors and switches, providing crucial signals to the PLC for processing.
Key Features
- Input Channels: 8 digital input channels enhance functionality.
- Configuration: Users can configure it to accept sinking or sourcing devices.
- LED Indicators: The module includes LED indicators that display the status of each input channel.
Technical Specifications
- Model: Honeywell CC-PDIL01
- Input Voltage Range: Operates within 12 to 30 VDC.
- Input Current: Requires 2 mA for effective operation.
- Output Voltage: Provides 24 VDC output.
- Output Current: Delivers up to 20 mA.
- Operating Temperature: Functions effectively between -40 to 85°C.
- Storage Temperature: Maintains performance in temperatures from -40 to 105°C.
- Vibration: Endures vibrations of 5 to 2000 Hz at 1 g peak-to-peak.
- Shock: Withstands shocks of 15 g over 11 ms half-sine.
- Dimensions: Measures 26 cm x 15.2 cm x 7.5 cm.
- Weight: 0.5 KG.
