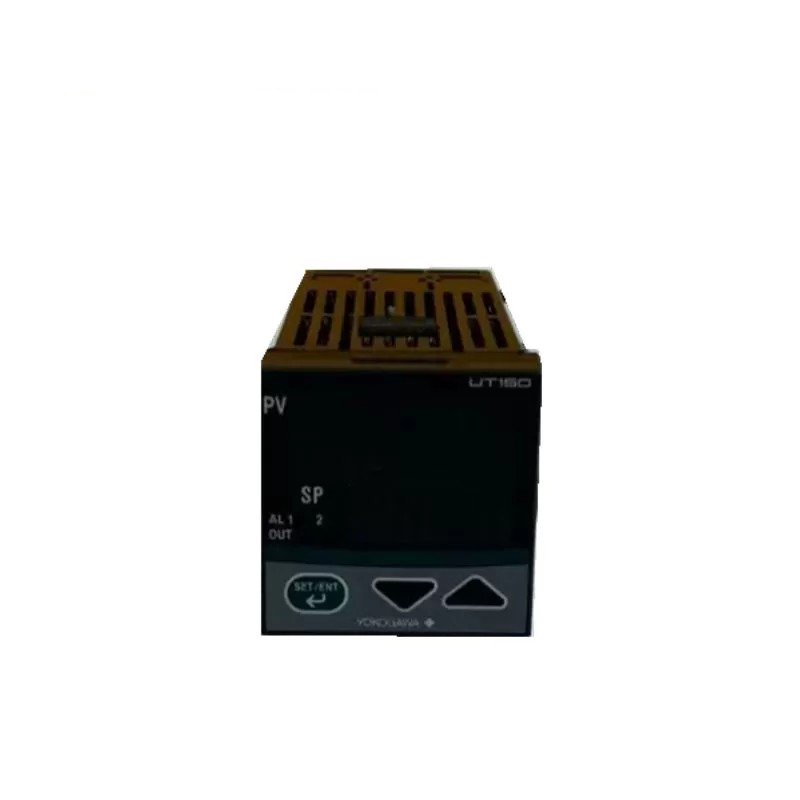

YOKOGAWA UT150-AN/AL Temperature Controller

The YOKOGAWA UT150-AN/AL is a 1/16 DIN-sized, general-purpose, multi-function temperature controller. It features standard auto-tuning and “SUPER” overshoot suppression. Additionally, it offers optional heating/cooling control, retransmission, timer, and communication functions.

Key Features

• 1/16 DIN size
• Universal input for RTDs, thermocouples, and linear voltage signals
• Auto-tuning and “SUPER” overshoot suppression
• Optional heating/cooling control
• Optional retransmission
• Optional timer
• Optional RS-485 communication

Applications

• Plastic molding machines
• Food and beverage industry
• Metal processing
• Semiconductor manufacturing
• Pharmaceutical industry

Specifications

• Input: RTD, thermocouple, linear voltage
• Input range: -200 to 1500°C (-328 to 2732°F) for RTDs, -200 to 2000°C (-328 to 3992°F) for thermocouples, 0 to 10 V, or 4 to 20 mA
• Output: Relay, SSR, or analog
• Control output: PID
• Accuracy: ±0.1% of full scale
• Power supply: 100 to 240 VAC, 50/60 Hz
• Dimensions: 48 x 48 x 110 mm (1.89 x 1.89 x 4.33 in)
• Weight: 0.5 kg (1.1 lb)

Additional Features

• Easy-to-use keypad
• Clear LED display
• Multiple mounting options
• CE marked
