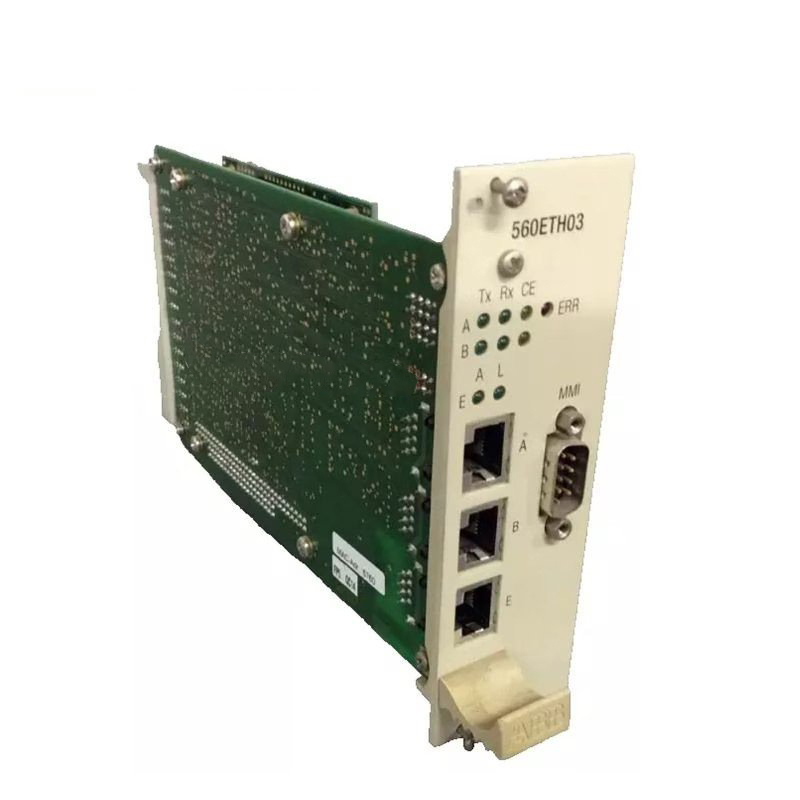

The 560ETH03 1KGT009900R0001 is an Ethernet Communication Module designed for the ABB RTU560 remote terminal unit. It ensures high-speed, reliable Ethernet communication for seamless data exchange in industrial automation systems. A reconditioned version of this module is also available, providing a cost-effective solution for industrial setups.

Technical Specifications

• Model Number: 560ETH03 1KGT009900R0001

• Type: Ethernet Communication Module

• Ethernet Ports: 2 independent ports

• Port Speed: 10/100 Mbps

• Power Supply: 5 V DC via backplane

• Power Consumption: 2 W typical

• Operating Temperature: -25°C to 70°C

• Storage Temperature: -40°C to 85°C

• Relative Humidity: 5% to 95%, non-condensing

• Dimensions: 20 mm x 100 mm x 120 mm

• Weight: 0.3 kg
