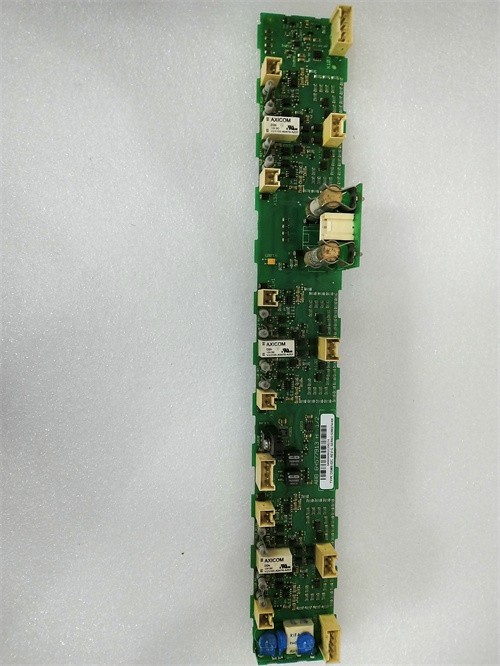

ABB DSMB-02C Product Details

ABB DSMB-02C is a programmable digital input and output module.The following is a detailed introduction to it.

Main functions and features

Control function:As an industrial automation product,DSMB-02C is mainly used for the input and output of digital signals in industrial automation control systems,and can control industrial processes and machines.

High precision and high reliability:The module has the characteristics of high precision,high reliability and high stability,and can operate stably in various industrial environments.

Multiple communication interfaces:Supports multiple communication interfaces such as Ethernet and serial communication,which is convenient for data exchange and communication with other devices.

Programmability:Through programming,DSMB-02C can achieve flexible control logic and function customization to meet different industrial automation needs.

Easy to maintain:Supports remote diagnosis and maintenance,reducing maintenance costs and time.

Technical parameters

Input and output parameters

Input voltage:24V DC±20%

Input current:maximum 5mA(maximum 0.5A in some cases)

Output voltage:24V DC(same as input voltage)

Number of input channels:8

Number of output channels:8

Maximum input frequency:100kHz

Maximum output load current:500mA

Other parameters

Working voltage:220V

Output frequency:100Hz

Processing speed:550μs

Program capacity:300

Data capacity:200

Working temperature range:-40℃~+70℃

Dimensions:70mm x 110mm x 18mm

Weight:about 100g

Installation method:DIN rail installation

Protection level:IP20

Isolation voltage:2500V AC

Application fields

DSMB-02C modules are widely used in various industrial automation control systems,such as factory automation,process control,robot control,conveyor belt control and other fields.Its high precision,high reliability and high stability make it an important part in the field of industrial automation.
