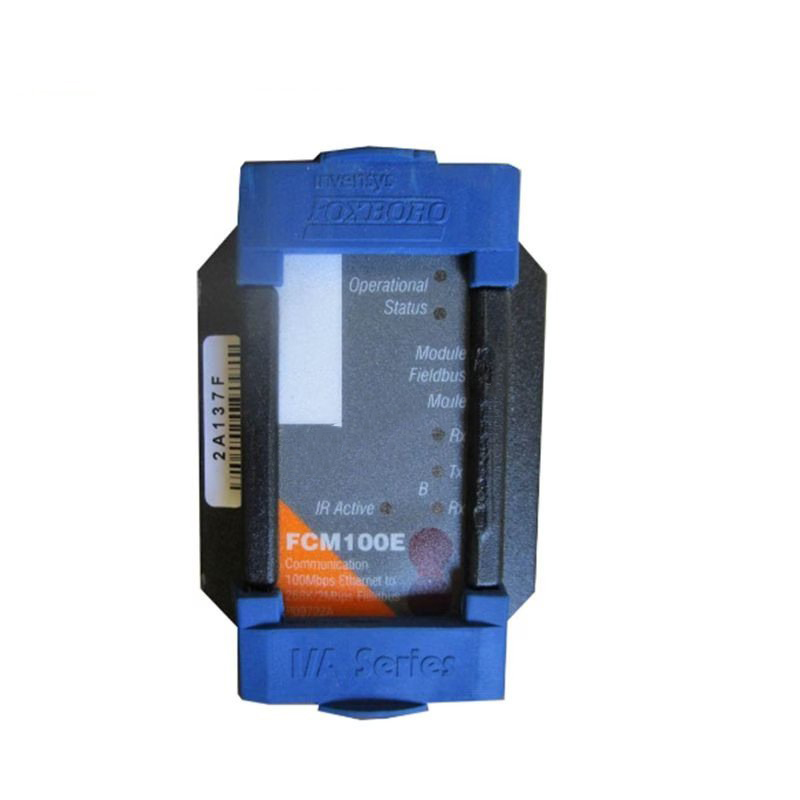

Foxboro FCM100E P0972ZA Field Communication Module

The Foxboro FCM100E P0972ZA is a reliable field communication module, ensuring smooth communication between field devices and control systems. It enhances data exchange efficiency, supporting high-performance industrial automation.

Technical Specifications

• Model Number: FCM100E P0972ZA

• Type: Field Communication Module

• Communication Protocols:

  • 2 Mbps for 200 series DIN FBMs

  • 268 Kbps for 100 series FBMs

  • Ethernet Fieldbus: 100 Mbps

• Input Voltage: 21 to 42 V DC

• Power Consumption: 5 W (maximum)

• Operating Temperature: 0°C to +70°C (32°F to +158°F)

• Humidity: 5% to 95% (non-condensing)

• Altitude: -300 m to +3,000 m (-1,000 ft to +10,000 ft)

Fieldbus Communications

• 2 Mbps Fieldbus Cable Length: Maximum 20 m

• 200 Series FBMs: Supports up to 32 modules, depending on control processor sizing constraints

• 268 Kbps Fieldbus Cable Length: Maximum 1830 m

• 100 Series FBMs: Supports up to 64 modules, depending on control processor sizing constraints

Additional Features

• Cable Material: MMF 62.5/125 µm

• Cable Lengths: 3 m to 2 km; greater than 50 m – user supplied

• Dimensions (HxWxD): 11.4 cm x 5.15 cm x 14.7 cm

• Weight: 0.6 kg
