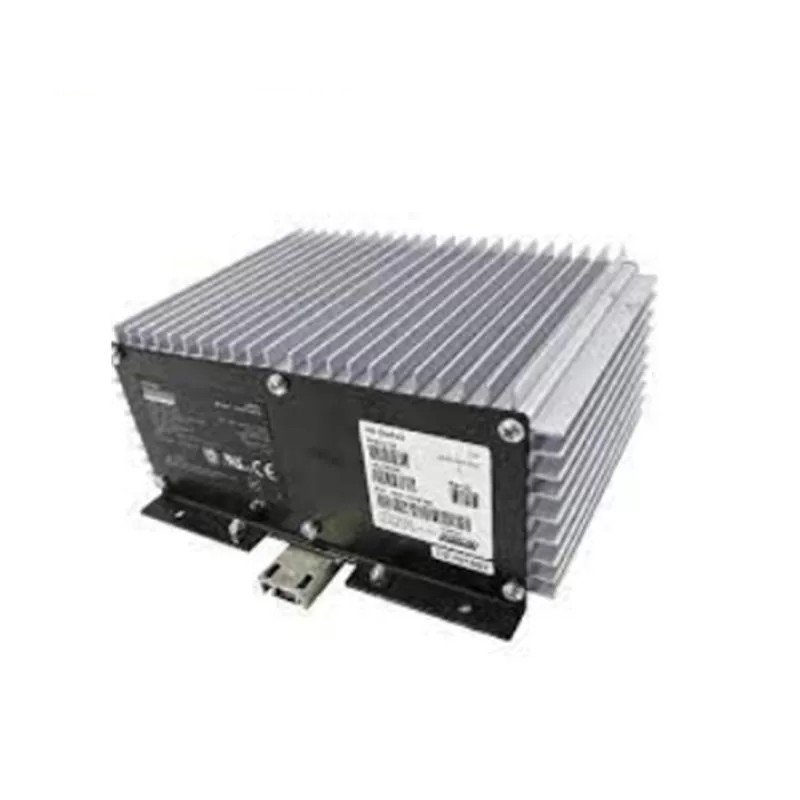

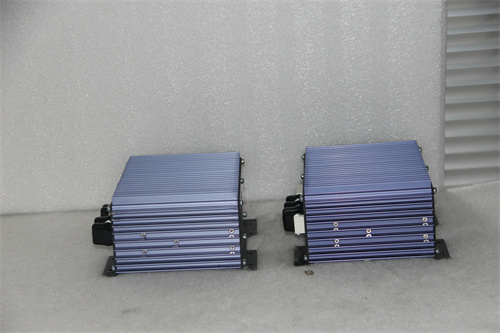

FOXBORO P0922YU Product Overview

FOXBORO P0922YU is a power module designed for industrial automation and process control applications produced by Foxboro.The following is a detailed introduction to the power module.

Main technical parameters

Input voltage:supports 85265V AC or 110300V DC(some say that its input voltage range is between 85 and 265V AC or 108 and 145V DC,and the nominal input voltage is 125V DC).

Output voltage:24V DC.

Output current:20A.

Rated power:400W(some say that its rated power is 480W).

Efficiency:higher than 90%(some high-efficiency models can reach 95%).

Operating temperature range:-40°C to 70°C.

Protection level:IP20.

Module size:115mm×45mm×27mm.

Weight:350g(some say its weight is 0.52KG,which may vary due to different batches or production standards).

Features

Dual-stage current limiting protection:supports dual current limiting protection to prevent the power module and load from being damaged by overcurrent.

Overvoltage shutdown function:can automatically cut off the power supply when the input voltage is too high to protect the power module and load.

Short circuit protection:when a short circuit occurs at the output end,the power module will quickly cut off the output to protect the system from the impact of short-circuit current.

Transformer isolation:using transformer isolation technology,the input and output circuits are electrically isolated,which improves the safety and stability of the system.

High efficiency:with high-efficiency input circuit,it can automatically accept AC or DC input voltage and provide a stable 24V DC output.

Multiple installation methods:supports DIN rail installation(horizontal or vertical),as well as bracket or wall mounting holes,which is convenient for users to install flexibly according to actual needs.

Application areas

Industrial automation:Provides stable power supply for control systems,sensors,actuators and other equipment.

Process control:In the process control fields of chemical,petroleum,pharmaceutical,etc.,it provides the power required by the process control system.

Power system:used to monitor and control power equipment to ensure the stable operation of the power system.

Manufacturing:used for power supply in factory automation,mechanical equipment and production lines.

Building automation:including lighting control,air conditioning system,etc.

Transportation system:provides power in traffic signal control,railway station and airport equipment.

Data center:ensures the reliable operation of servers and network equipment.

Medical equipment:provides power supply for medical equipment to ensure its normal operation.
