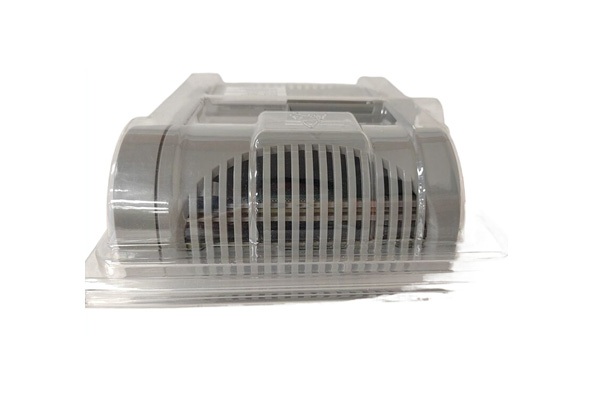

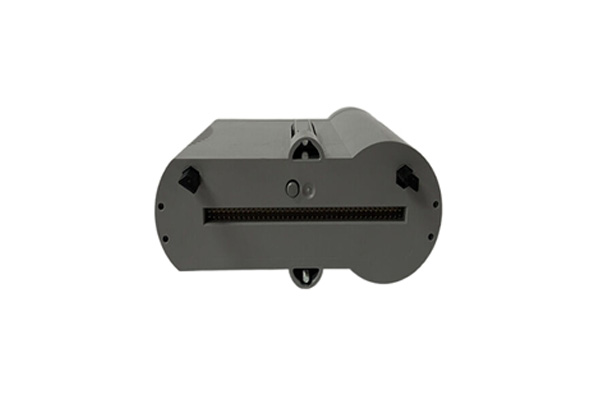

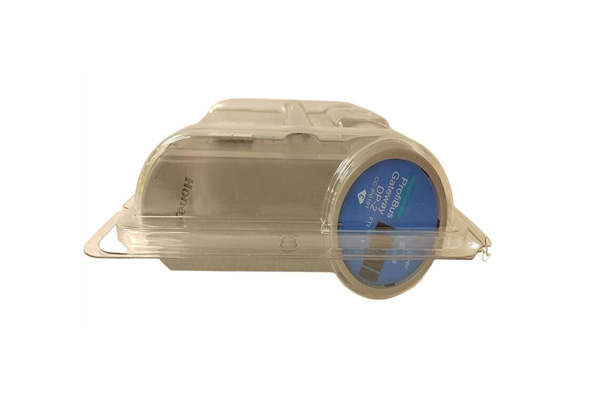

Honeywell CC-IP0101 module is a digital signal input/output (I/O) module designed specifically for industrial automation and process control applications. The following is a detailed introduction to this module.

Basic information

Manufacturer: Honeywell, a well-known global company in the field of industrial automation and control technology, provides various industrial solutions.

Model: CC-IP0101

Function: Provides multiple digital input and output channels, allowing users to receive and send digital signals to control and monitor various industrial equipment.

Technical characteristics

Multi channel design: meets various needs of industrial automation and process control, providing rich digital I/O channels.

Environmental adaptability: The design takes into account the harsh conditions of the industrial environment, such as temperature, humidity, electrical noise, etc., to ensure stable performance under various conditions.

Easy to configure: With simple tools and software, users can easily configure module parameters and write and upload programs to meet specific application requirements.

Communication protocol support: Supports multiple communication protocols such as Modbus, Profibus, EtherNet/IP, etc., and can seamlessly integrate with other industrial automation equipment such as PLCs and DCS.

Remote access capability: Users can access and monitor the status and performance of modules from a remote location through Ethernet or other communication protocols.

Security: Provides security features such as encrypted communication and access control to ensure the security of data and systems.

Plug and play: Modules can be quickly installed and put into use without the need for complex configuration processes.

Program debugging ability: Supports program upload, download, and debugging, which is crucial for ensuring correct control logic.

Application field

The CC-IP0101 module is widely used in fields such as power systems, manufacturing, building automation, water treatment and environmental monitoring, and traffic signal systems.

It can connect various sensors and actuators to monitor parameters such as temperature, pressure, flow rate, and liquid level.

When used in conjunction with motion controllers, precise control of motors and motion controllers can be achieved, suitable for applications such as automated production lines and robots.

Monitor various safety sensors, alarms, and other equipment to ensure the safety of the production process.

Specification parameters

Power range: AC 90V to 264V, 47Hz to 63Hz.

Working temperature: 0 ℃ to 60 ℃.

Relative humidity: 10% to 90%, no dew point.

Physical dimensions: may vary depending on specific models or configurations, but there is usually a detailed specification table for users to refer to.

Summary

The Honeywell CC-IP0101 module is a powerful and stable digital signal input/output module designed specifically for industrial automation and process control applications. It has the characteristics of multi-channel design, strong environmental adaptability, easy configuration, support for multiple communication protocols, strong remote access ability, and high security, and is widely used in multiple industrial fields. By providing a simple installation and debugging process as well as powerful input and output capabilities, it helps achieve automation control in industrial processes, improving production efficiency and reliability.
