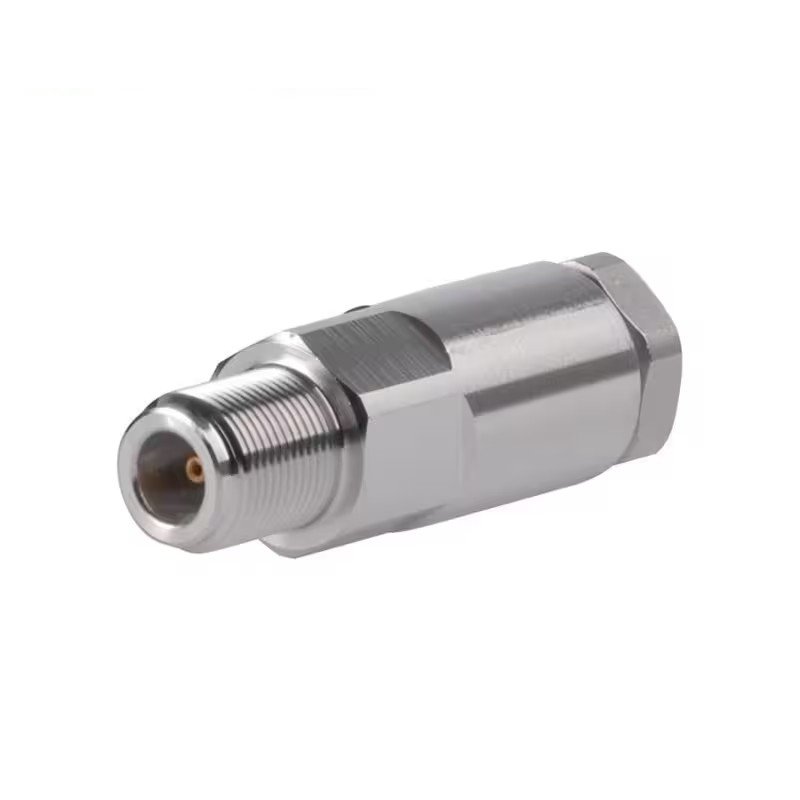

The Andrew L4PNF-RC is a specialized coaxial connector designed for high-performance RF applications. It is built for use with 1/2 inch LDF4-50A cables and features a Type N female interface. The connector uses RingFlare™ technology to provide a secure, durable connection, ensuring low loss and minimal interference. The L4PNF-RC is ideal for industries like telecommunications, broadcasting, and military, where high-quality, reliable RF connections are essential.

General Specifications

• Connector Type: Type N Female
• Cable Compatibility: 1/2 inch LDF4-50A
• Design: RingFlare™
• Body Style: Straight
• Inner Contact Attachment: Captivated
• Inner Contact Plating: Gold
• Outer Contact Attachment: Ring-flare
• Outer Contact Plating: Trimetal
• Pressurizable: No

Dimensions

• Length: 71.12 mm (2.8 inches)
• Diameter: 22.1 mm (0.87 inches)

Electrical Specifications

• 3rd Order IMD at Frequency: -120 dBm @ 910 MHz
• Insertion Loss Coefficient: 0.05 (typical)
• Average Power at Frequency: 0.6 kW @ 900 MHz
• Cable Impedance: 50 ohms

Part Information

• Part Number: L4PNF-RC
• Weight: 0.20 lbs
