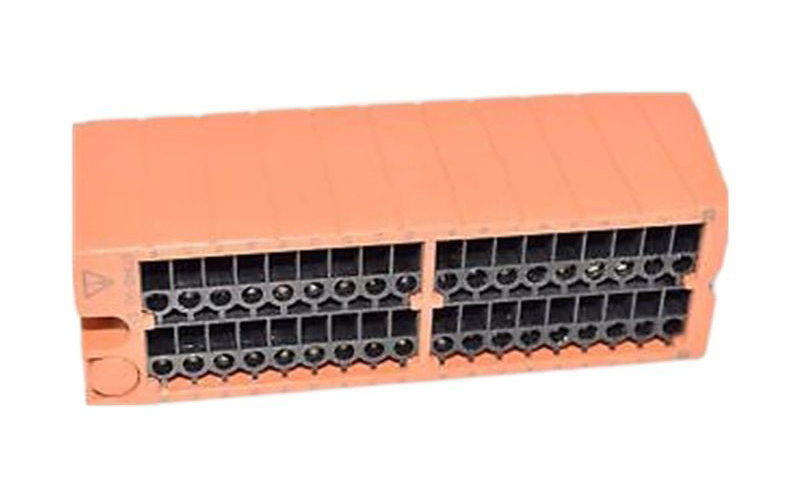

Yokogawa STB4S-10 Pressure Clamp Terminal Block

The Yokogawa STB4S-10 is a pressure clamp terminal block designed for digital input signals. It supports single (non-redundant) connections, making it suitable for standard industrial applications that do not require high-availability configurations. It does not include an internal surge absorber, so external surge protection may be necessary in electrically noisy environments. With robust environmental ratings and a rack-mountable design, the STB4S-10 delivers dependable performance for control systems in demanding settings.

Electrical

• Power Supply: 24V DC for consistent performance
• Communication Interface: ESB Bus for high-speed data transfer
• Connection Type: Pressure clamp terminal, tool-free installation
• Surge Protection: No built-in surge absorber

Environmental

• Operating Temperature: -20°C to +70°C, suitable for industrial conditions
• Storage Temperature: -40°C to +85°C for long-term stability
• Humidity Range: 5% to 95% RH (non-condensing)

Mechanical

• Mounting Type: Rack-mounted for solid, organized deployment
• Redundancy: Single (non-redundant) terminal layout
• Approximate Weight: 0.36 kg (based on similar terminal block designs)

Physical Design

• Terminal Block Style: S1
• Application: Digital input terminal block for process and factory automation
