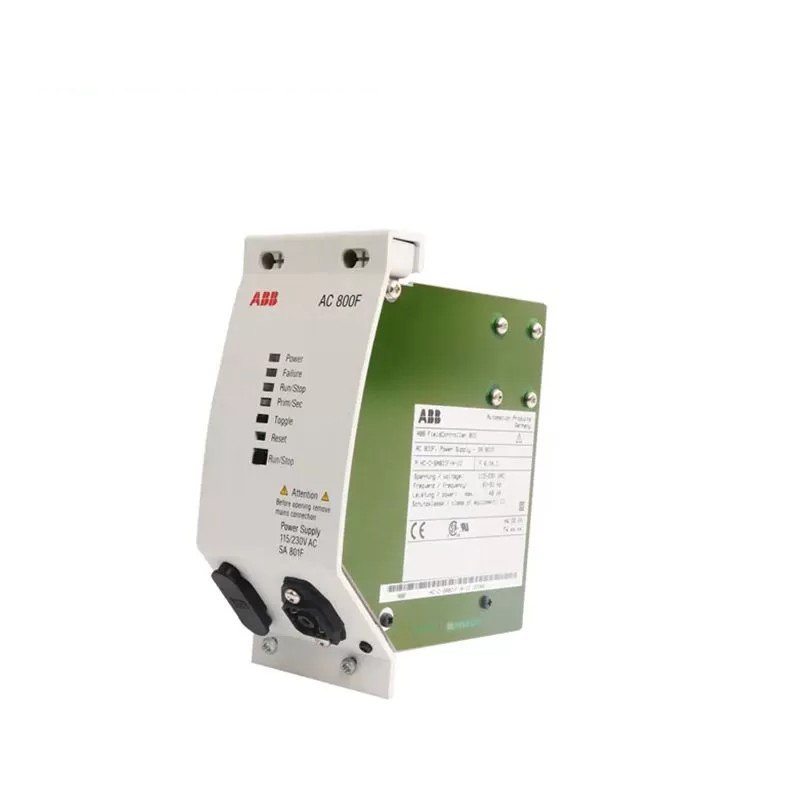

The ABB SA801F 3BDH000011-REF is designed for use in ABB Freelance control systems. It provides a regulated 24 VDC output and has a power rating of 100 W. This unit mounts easily on DIN rails and integrates seamlessly into control panels.

Features

• 24 VDC output
• 100 W power rating
• DIN rail mountable
• Input voltage: 115/230 VAC
• Output voltage: 24 VDC
• Output current: 4.2 A
• Efficiency: > 85%
• Operating temperature: -20 to +60 °C
• Storage temperature: -40 to +85 °C
• Humidity: 0 to 95% RH (non-condensing)
• Protection: IP20

Applications

• ABB Freelance control systems
• Industrial automation systems
• SCADA systems
• Building automation systems

Technical Specifications

• Input voltage: 115/230 VAC
• Output voltage: 24 VDC
• Output current: 4.2 A
• Power rating: 100 W
• Efficiency: > 85%
• Operating temperature: -20 to +60 °C
• Storage temperature: -40 to +85 °C
• Humidity: 0 to 95% RH (non-condensing)
• Protection: IP20
• Dimensions: 200 x 150 x 100 mm
• Weight: 2 kg
