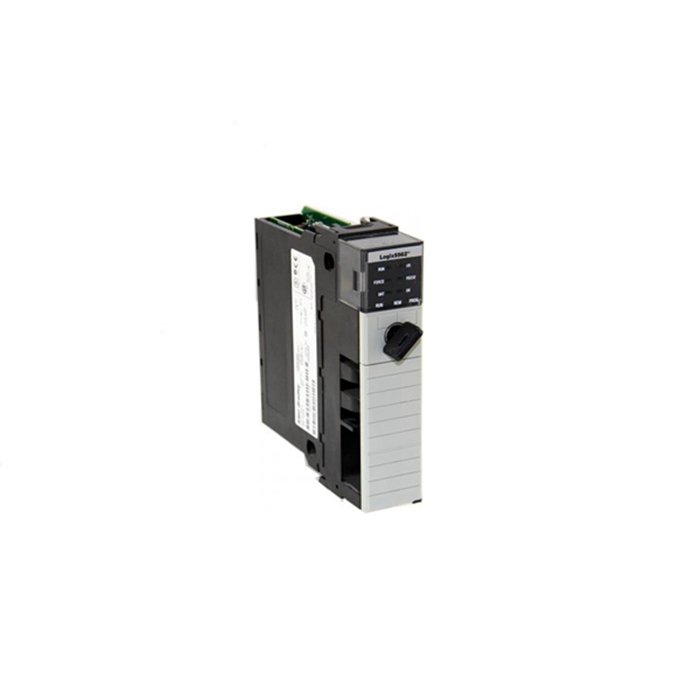

The Allen-Bradley 1756-L62 ControlLogix Logix5562 Processor offers 4 Mbytes of memory and various communication options, making it a versatile and powerful choice for automation applications. It can be easily integrated into a chassis and supports communication across different networks.

Memory

• Available User Memory: 4096 Kbytes
• I/O Memory: 478 Kbytes
• Nonvolatile Memory: 64 Mbytes CompactFlash (1784-CF64)

Controller Features

• The 1756-L62 controller can be inserted into any slot of a chassis.
• Multiple controllers can be installed in the same chassis.
• Multiple controllers in the same chassis communicate with each other across the backplane but operate independently.

Communication Options

• The 1756-L62 Controllers can communicate across various networks:
  • RS-232-C (DF1/DH-485 protocol)
  • DeviceNet
  • DH+
  • ControlNet
  • EtherNet/IP

Communication Interface Module

To provide communication for a ControlLogix controller, an appropriate communication interface module must be installed in the chassis.
