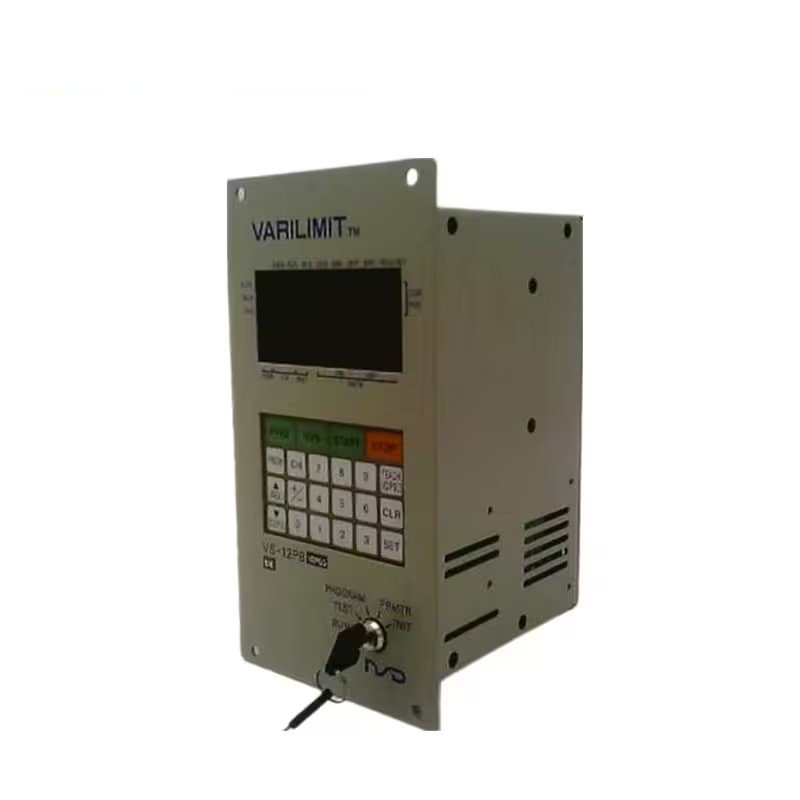

NSD VS-12PB-M2RD Positioning Controller

The NSD VS-12PB-M2RD is a precision positioning controller designed for use with ABSOCODER sensors. It is ideal for high-precision applications in industries such as transportation, press machines, assembly, and packaging equipment. The controller provides precise motion control and supports both unidirectional and bidirectional positioning, making it versatile for various automated systems.

Technical Specifications

Power Supply and Consumption

• Supply Voltage: DC24V (maximum DC30V)
• Input Voltage: DC24V
• Output Voltage: DC12V (ON), 0.5V (OFF)
• Power Consumption: 15VA or less

Operating Environment

• Ambient Operating Temperature: 0 ～ +55°C (no freezing)
• Ambient Operating Humidity: 20 ～ 90 %RH (no condensation)

Electrical and Mechanical Characteristics

• Insulation Resistance: 20MΩ or more (measured by 500 VDC insulation resistance tester)
• Withstand Voltage: 1500 VAC, 60Hz for 1 minute
• Vibration Resistance: 20m/s², 10 ～ 500Hz, 10 cycles of 5 minutes in 3 directions, conforms to JIS C 0040 standard
• Mass: 2.0 Kg

Positioning and Control Functions

• Position Detection Format: Absolute position detection
• Control Format: Unidirectional or Bidirectional positioning
• Control Outputs: Forward (FWD), Reverse (RVS), High-speed, Low-speed, Brake release, In-position, Positioning in progress, Operation error
• Switch Output:
  • 8 points of limit switch output
  • 1 program and multi-dog feature (10 times per switch output)

Sensor Compatibility

• Applicable Sensors:
  • MRE-32SP062
  • MRE-G□SP062
  • VLS-256PWB, VLS-512PWB, VLS-1024PW
